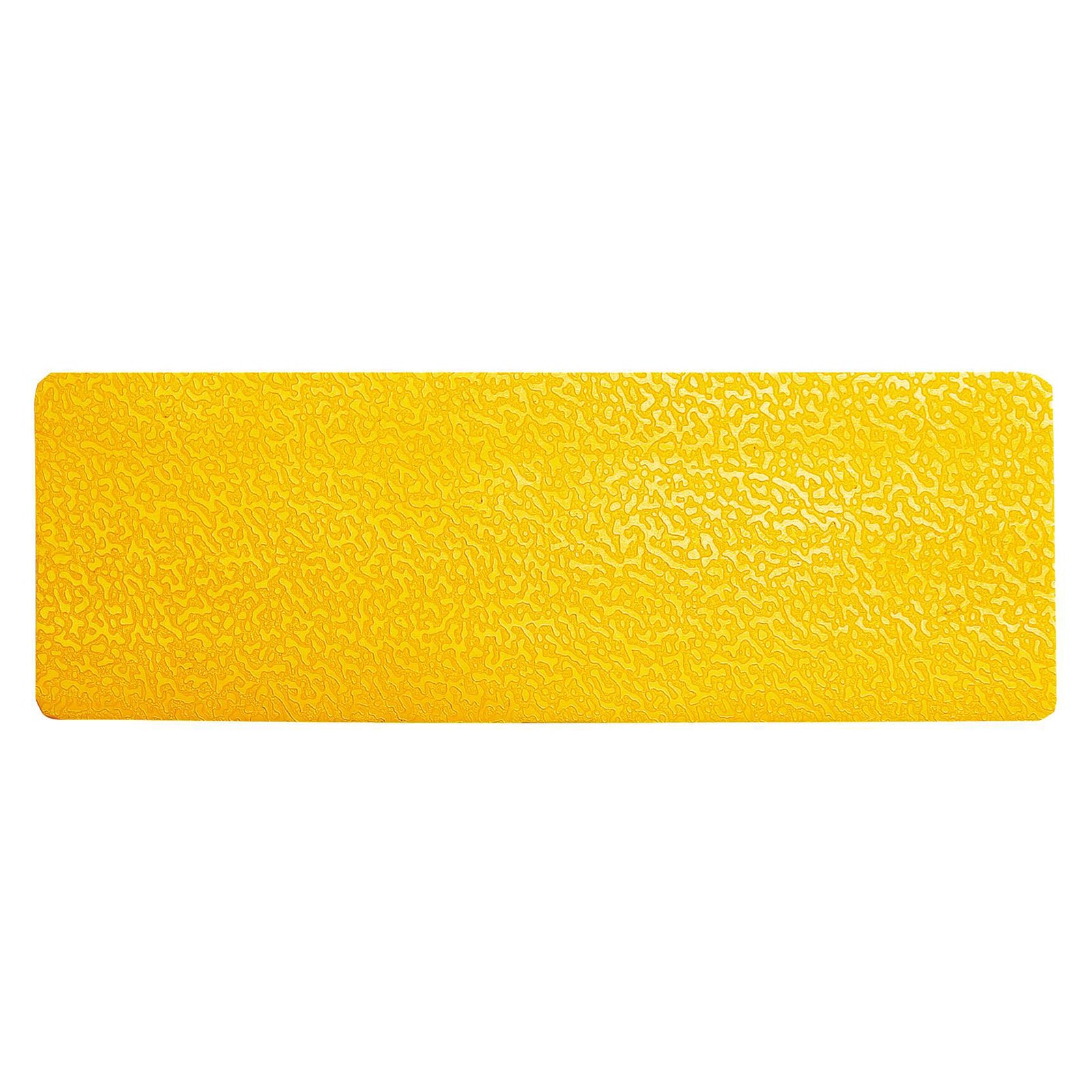

Durable yellow floor marking stripe, top view

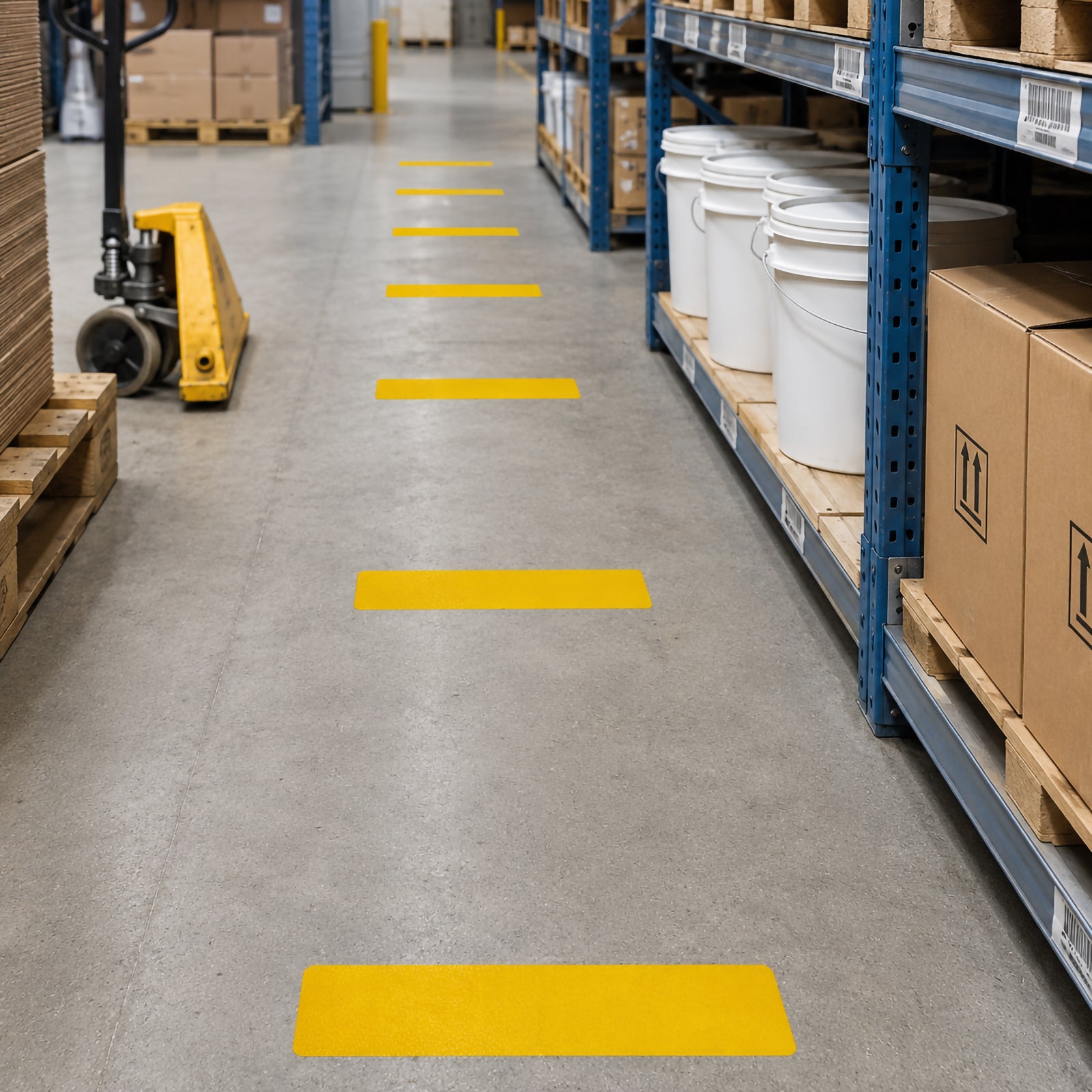

Yellow stripes laid across a warehouse aisle beside racking

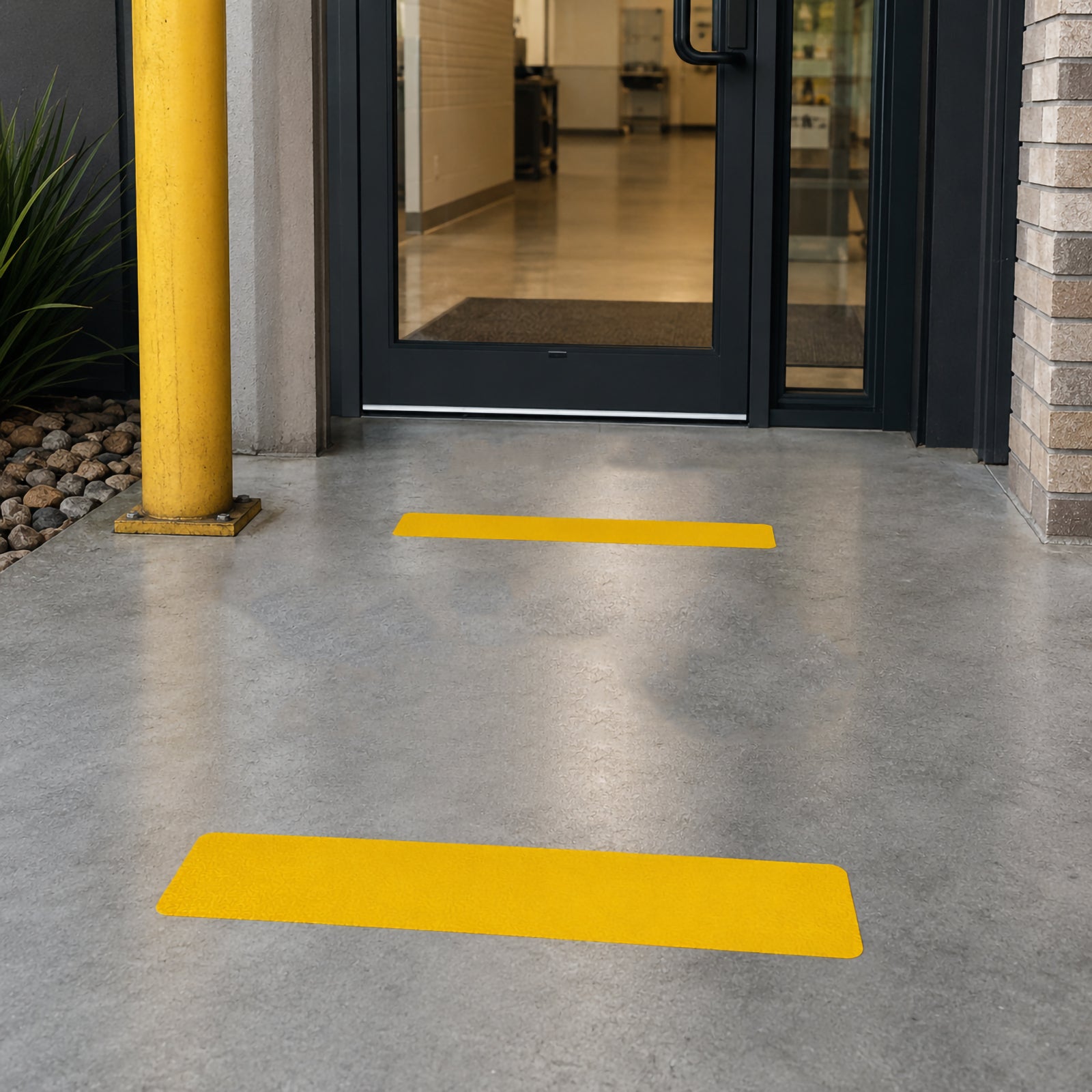

Yellow stripes on the floor at a building entrance beside a bollard

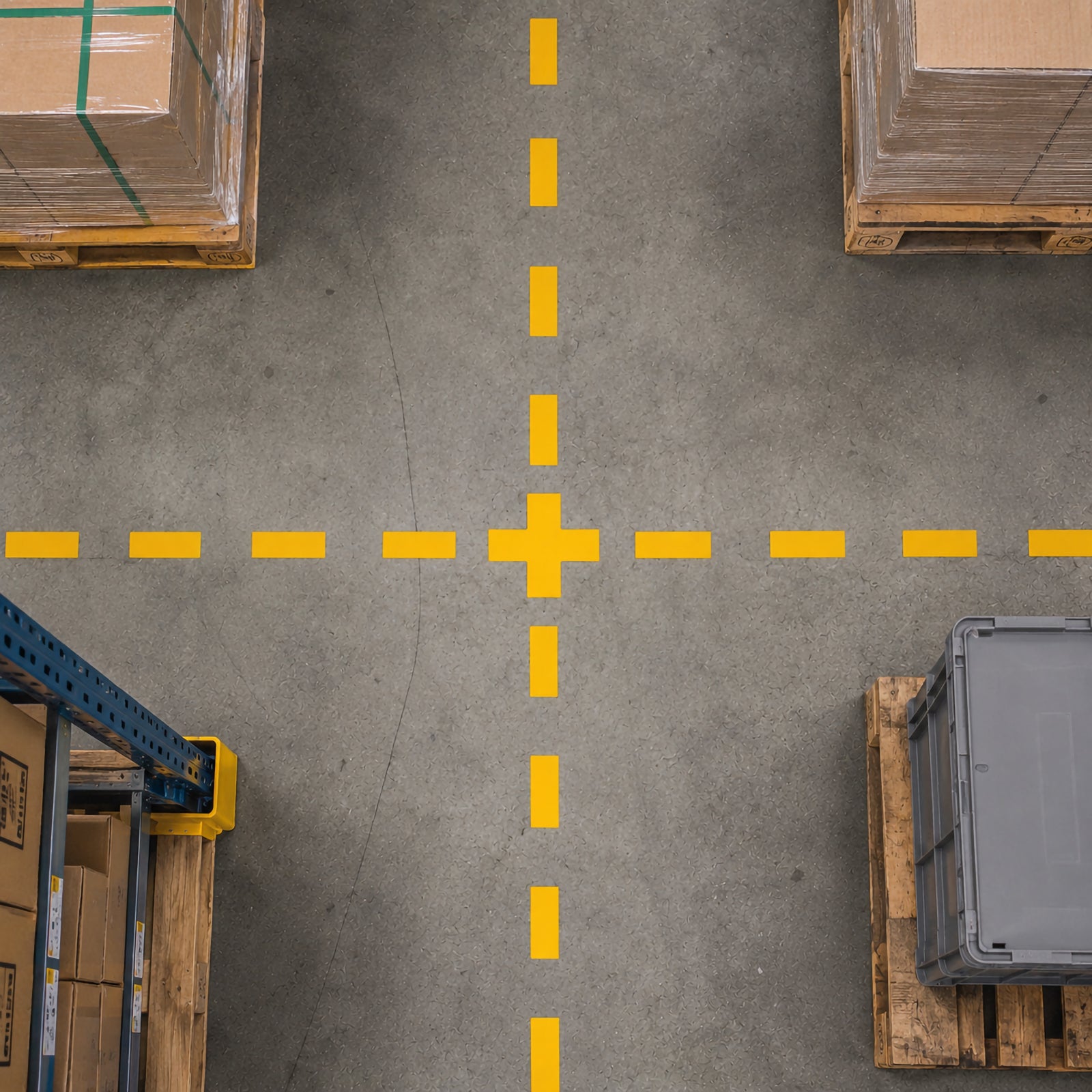

Overhead view of dashed yellow lines of stripes crossing between pallets

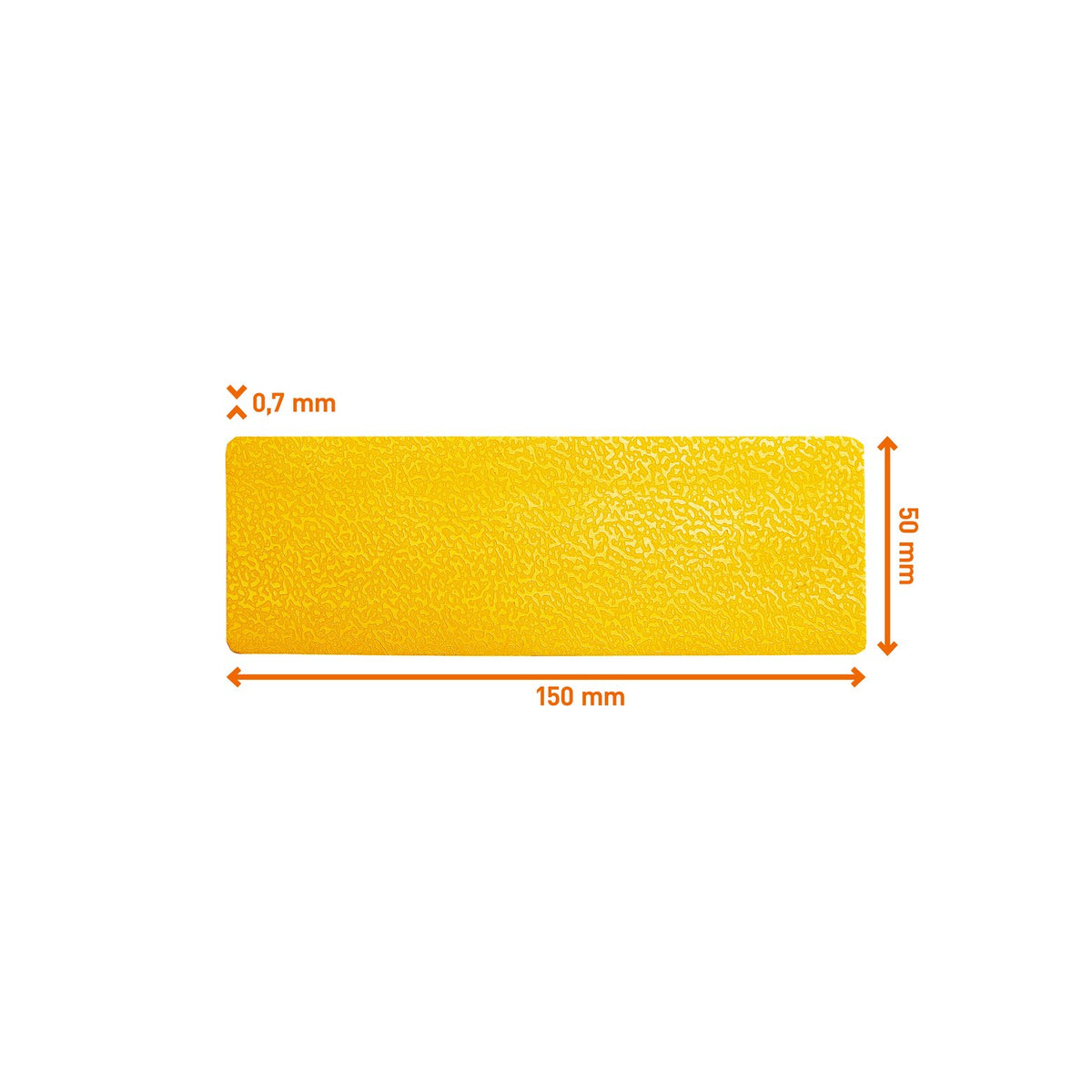

Durable floor marking stripe dimension drawing: 50 x 150 mm, 0.7 mm thick

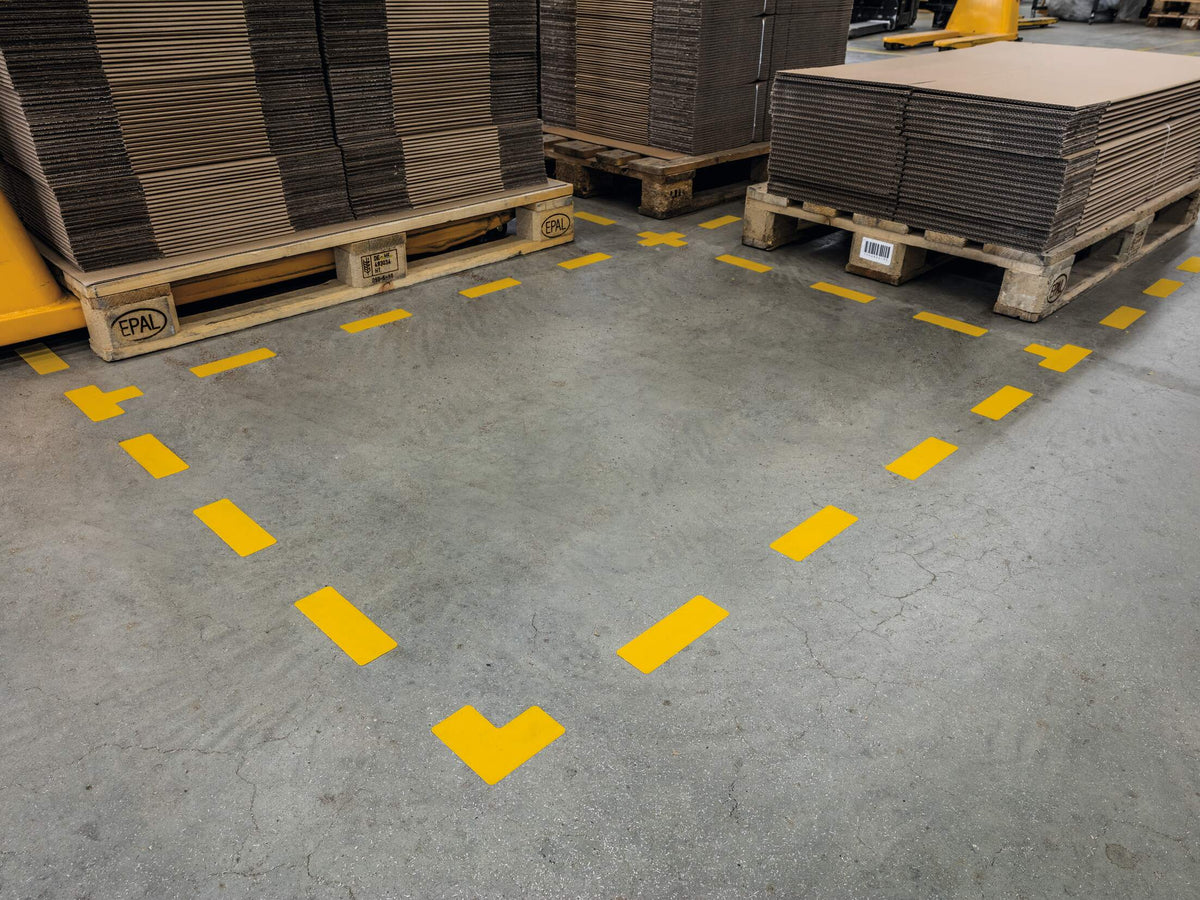

Dashed bay border of Durable yellow stripes and L shapes in front of pallets
Durable yellow floor marking stripe, top view
Yellow stripes laid across a warehouse aisle beside racking
Yellow stripes on the floor at a building entrance beside a bollard
Overhead view of dashed yellow lines of stripes crossing between pallets
Durable floor marking stripe dimension drawing: 50 x 150 mm, 0.7 mm thick
Dashed bay border of Durable yellow stripes and L shapes in front of pallets
Durable yellow floor marking stripe, top view
Yellow stripes laid across a warehouse aisle beside racking
Yellow stripes on the floor at a building entrance beside a bollard
Overhead view of dashed yellow lines of stripes crossing between pallets
Durable floor marking stripe dimension drawing: 50 x 150 mm, 0.7 mm thick
Dashed bay border of Durable yellow stripes and L shapes in front of pallets
Durable

Durable Floor Marking Shape Stripe Yellow Pack 10

$36.30
$36.30
RRP $40.70
Or 4 payments of $9.08 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: AA170304

Yellow Stripe Pieces for Dashed Lines and Bay Edges

The Durable Floor Marking Shape Stripe Yellow Pack 10 is a pack of 10 self-adhesive yellow stripes, each 50 x 150 mm, for laying dashed lines along aisles and the edges of storage bays on an inside floor.

Durable describes the stripe as a line marking for storage areas and traffic zones, used for floor, area and bay marking in logistics, warehousing, production and operations, and made for flexible combination with its other bay markings. On its data sheet the stripe is 0.7 mm thick and signal yellow similar to RAL 1003.

Short stripes laid end to end with gaps give a dashed line without cutting lengths of tape, and a single damaged piece can be replaced on its own. They also fill the sides of a bay between L corners, crosses or T shapes.

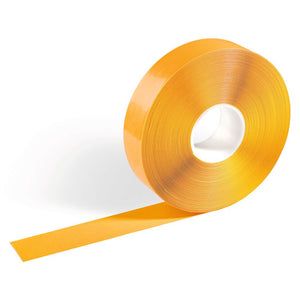

Join stripes with L corners, crosses and T shapes from the Durable range, switch to floor marking tapes for a continuous line, or add workplace signage to name each zone.

Often ordered together

  • Pack of 10 yellow stripes, each 50 x 150 mm.
  • Durable gives a material thickness of 0.7 mm.
  • Durable lists the self-adhesive type as permanent.
  • Durable states "Slip resistance (R Group) R9 in accordance with German workplace ordinance ASR A1.5/1,2 'Floors' per DIN 51130".
  • Durable lists the application area as walking area, driving area.
  • Durable's material data sheet lists soft PVC foil with acrylic glue.
  • Dashed lines along warehouse aisles.
  • Sides of pallet and storage bays.
  • Queue lines in front of doors and counters.
  • Borders around workstations.

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Durable

Manufacturer Code: 170304

EAN: 4005546983592

Shape: Stripe

Colour: Signal yellow, similar to RAL 1003 (Durable data sheet)

Size: 50 x 150 mm (W x L, Durable data sheet)

Material Thickness: 0.7 mm (Durable data sheet)

Material: Soft PVC (PVC-P) foil with acrylic glue (Durable material data sheet)

Self-Adhesive Type: Permanent (Durable data sheet)

Abrasion Resistance: Normal (Durable data sheet)

Application Area: Walking area, driving area (Durable data sheet)

Slip Resistance: Slip resistance (R Group) R9 in accordance with German workplace ordinance ASR A1.5/1,2 'Floors' per DIN 51130 (Durable data sheet)

Pack Size: 10 pieces (Durable data sheet)

Packed Weight: 92.8 g gross per pack (Durable data sheet)

Country of Origin: United Kingdom (Durable data sheet)

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

Durable lists walking areas and driving areas on its data sheet. Its technical data sheet excludes vehicles manoeuvring on the marking and pallets dragged, pushed or scraped across it from its cover, so trial a piece on the route first.
Durable makes the stripe to combine with its other bay markings, such as the L, article 170204, the cross, article 170104, and the T, article 170004.
Durable states "Slip resistance (R Group) R9 in accordance with German workplace ordinance ASR A1.5/1,2 'Floors' per DIN 51130". Durable gives no Australian equivalent for the stripes.
Durable's technical data sheet says a primer is recommended on concrete, wood and asphalt, after the floor is cleaned and dry.
