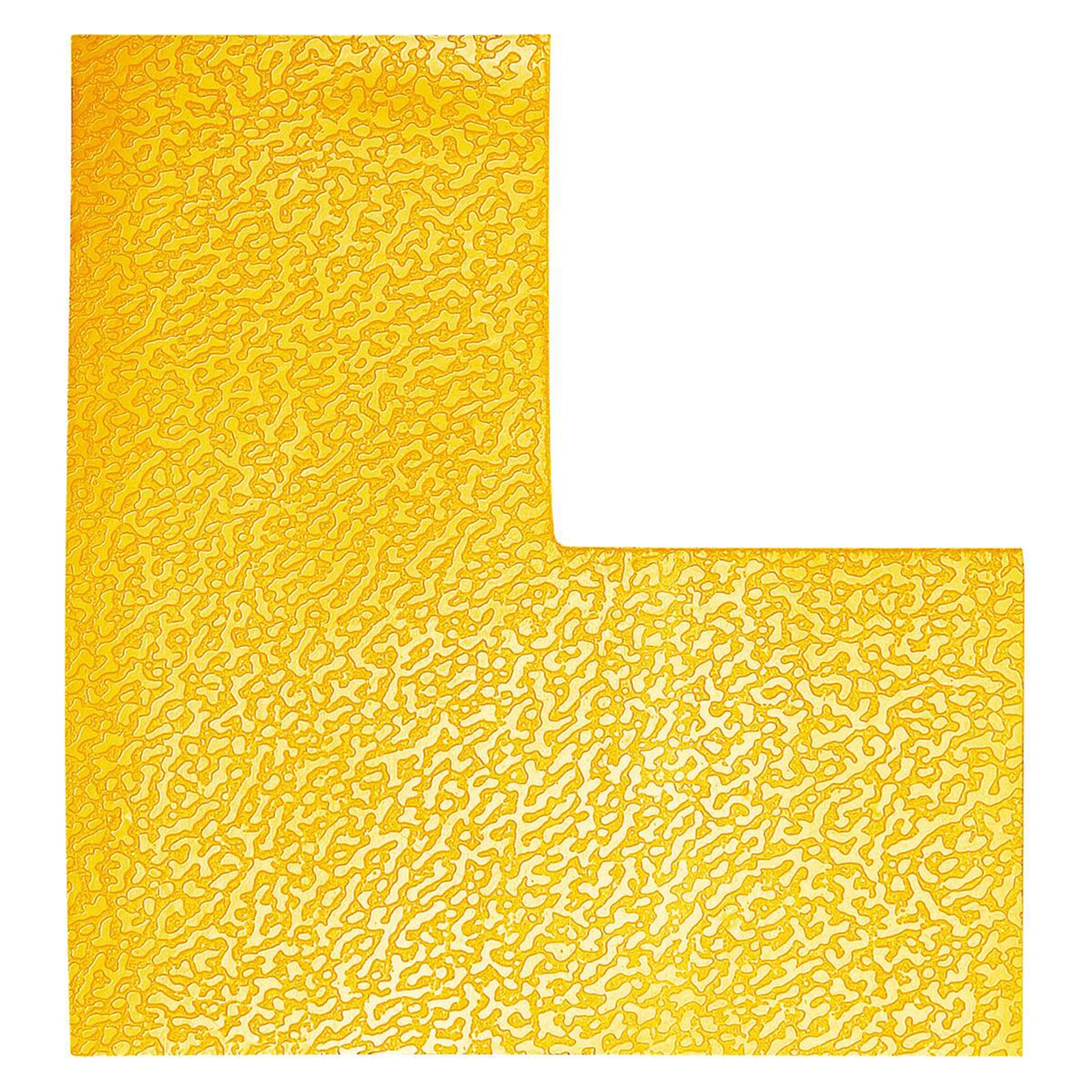

Durable yellow L shape floor marker, top view showing the textured surface

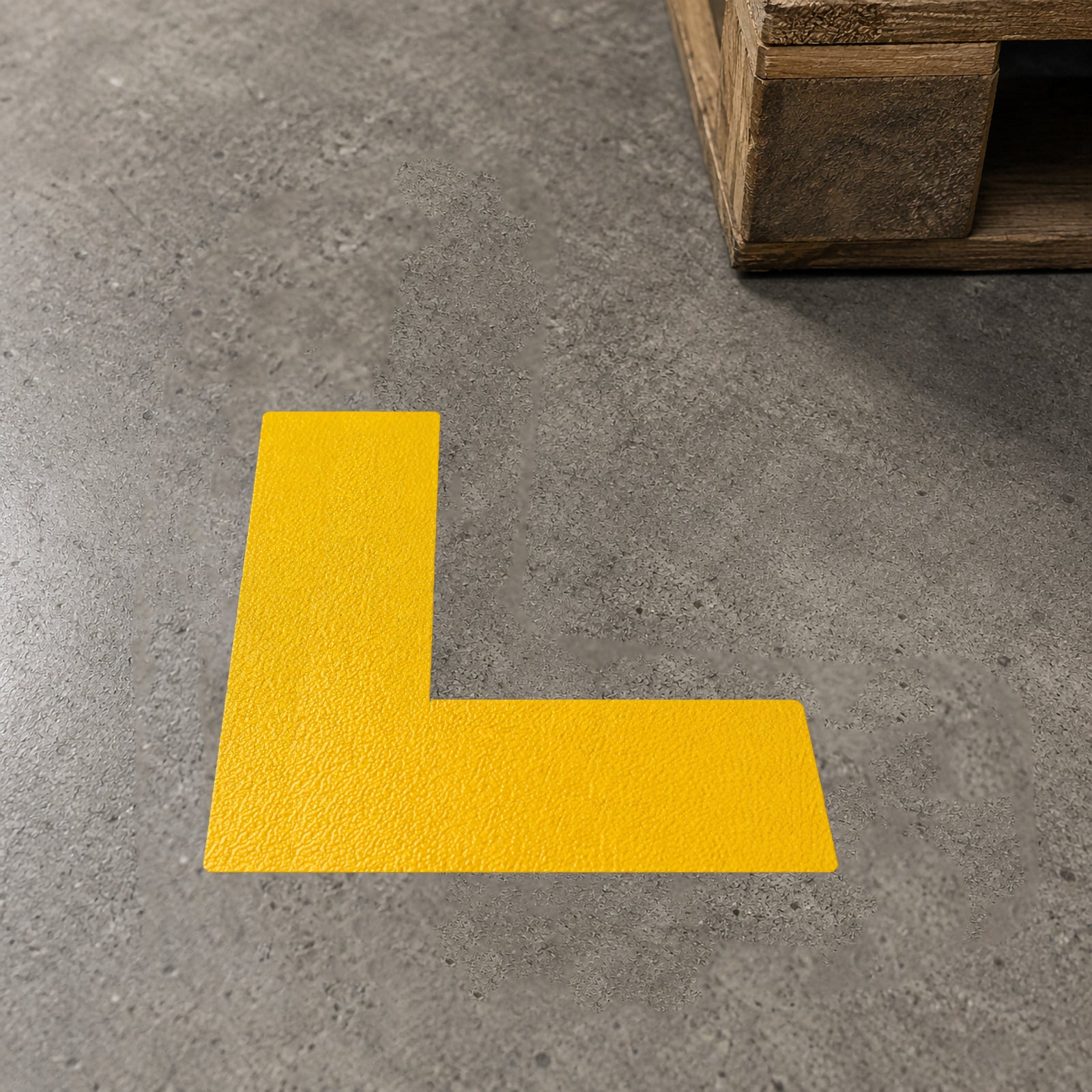

Yellow L shape marker at the corner of a bay on a concrete floor beside a pallet

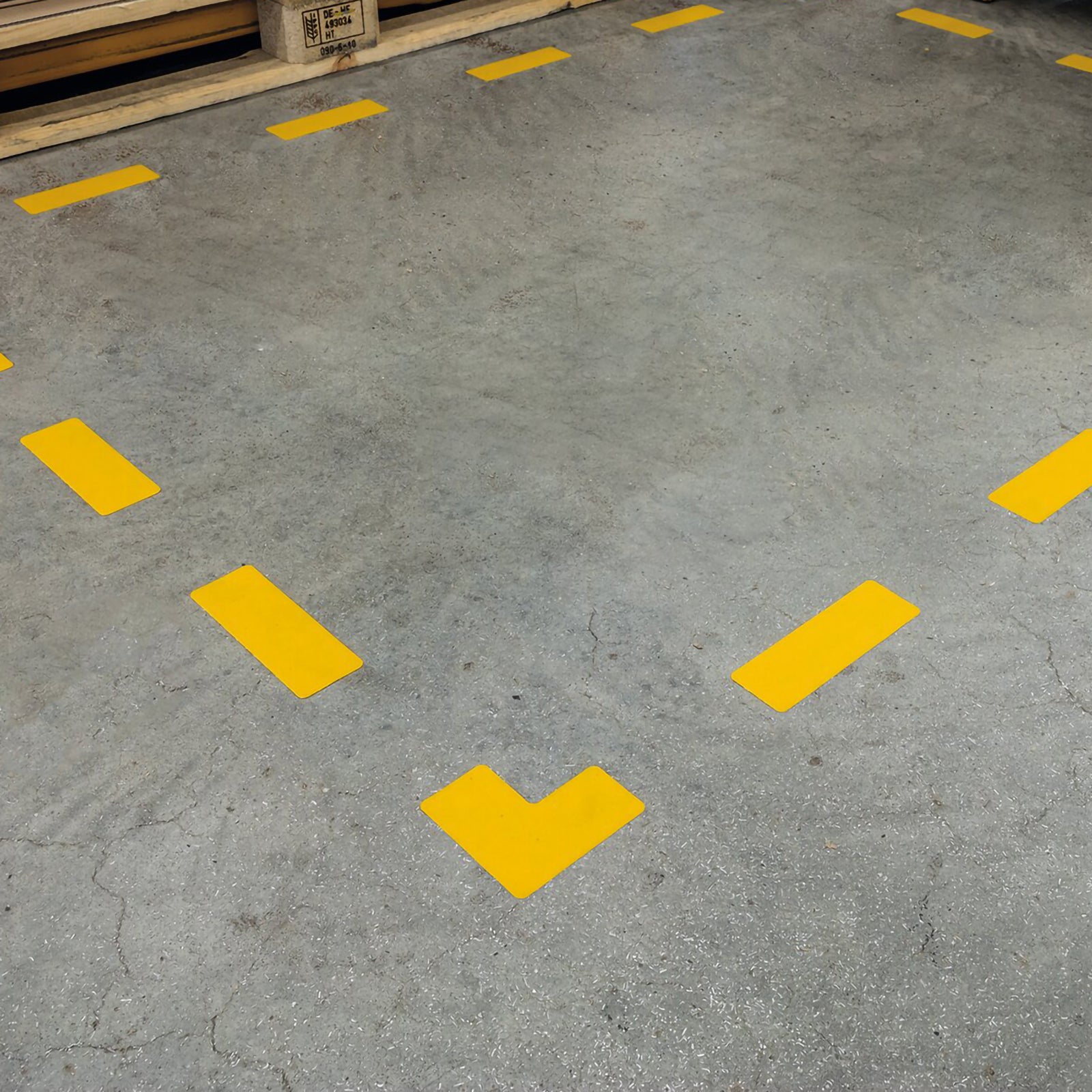

Yellow L shapes and stripes marking out bays on a warehouse floor

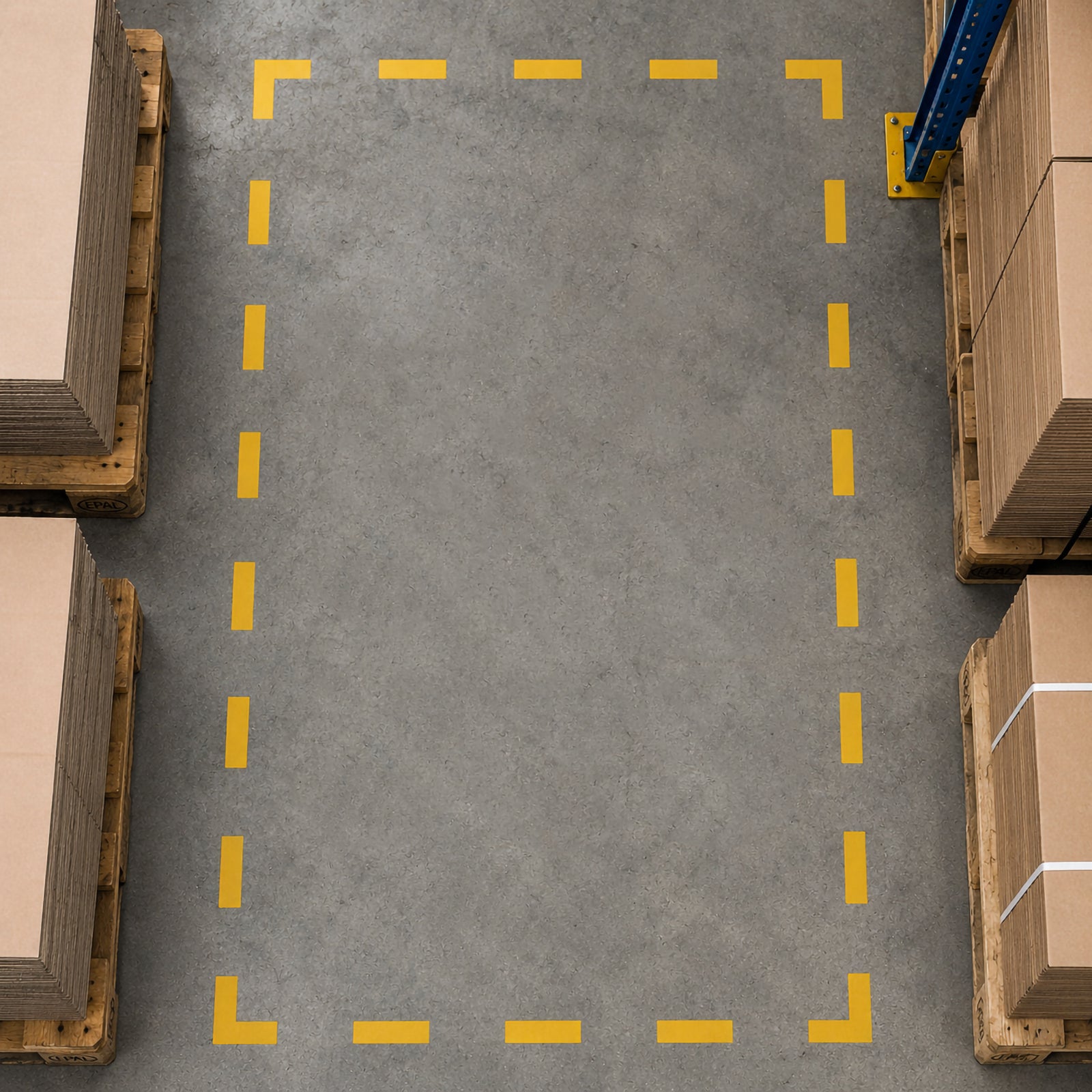

Overhead view of a rectangular bay outlined with yellow L shapes and stripes between pallets
Durable L shape floor marker dimension drawing: 100 x 100 mm, 0.7 mm thick
Bay outlined with Durable yellow L shapes and stripes in front of pallets
Durable yellow L shape floor marker, top view showing the textured surface
Yellow L shape marker at the corner of a bay on a concrete floor beside a pallet
Yellow L shapes and stripes marking out bays on a warehouse floor
Overhead view of a rectangular bay outlined with yellow L shapes and stripes between pallets
Durable L shape floor marker dimension drawing: 100 x 100 mm, 0.7 mm thick
Bay outlined with Durable yellow L shapes and stripes in front of pallets
Durable yellow L shape floor marker, top view showing the textured surface
Yellow L shape marker at the corner of a bay on a concrete floor beside a pallet
Yellow L shapes and stripes marking out bays on a warehouse floor
Overhead view of a rectangular bay outlined with yellow L shapes and stripes between pallets
Durable L shape floor marker dimension drawing: 100 x 100 mm, 0.7 mm thick
Bay outlined with Durable yellow L shapes and stripes in front of pallets
Durable

Durable Floor Marking Shape L Shape Yellow Pack 10

$81.73 inc GST
$81.73 inc GST
RRP $91.63
Or 4 payments of $20.43 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: AA170204

Yellow L Corners That Square Off Pallet and Storage Bays

The Durable Floor Marking Shape L Shape Yellow Pack 10 is a pack of 10 self-adhesive yellow L corners, each 100 x 100 mm, for marking the corners of pallet bays, storage areas and equipment parking spots on an inside floor.

Durable describes the L as a bay marking for storage areas and traffic zones, for floor, area and bay marking in logistics, warehousing, production and operations, and says it is shaped for flexible combination with its other bay markings. Durable gives a 0.7 mm material thickness and signal yellow similar to RAL 1003.

Four L corners outline a bay with far less material than a full painted box, and leave the middle of the floor clear for cleaning machines. Stripes between the corners turn the outline into a dashed border when a bay needs to read clearly from a distance.

Fill in the sides with stripes and T shapes from the Durable range, use floor marking tapes where a solid border is needed, or label each bay with workplace signage.

Often ordered together

  • Pack of 10 yellow L corners, each 100 x 100 mm.
  • Durable gives a material thickness of 0.7 mm.
  • Durable lists the self-adhesive type as permanent.
  • Durable states "Slip resistance (R Group) R9 in accordance with German workplace ordinance ASR A1.5/1,2 'Floors' per DIN 51130".
  • Durable lists the application area as walking area, driving area.
  • Durable's material data sheet lists soft PVC foil with acrylic glue.
  • Corners of pallet bays.
  • Parking spots for trolleys and cleaning machines.
  • Corners of quarantine or returns areas.
  • Outlines around machines and workbenches.

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Durable

Manufacturer Code: 170204

EAN: 4005546983578

Shape: L

Colour: Signal yellow, similar to RAL 1003 (Durable data sheet)

Size: 100 x 100 mm (W x L, Durable data sheet)

Material Thickness: 0.7 mm (Durable data sheet)

Material: Soft PVC (PVC-P) foil with acrylic glue (Durable material data sheet)

Self-Adhesive Type: Permanent (Durable data sheet)

Abrasion Resistance: Normal (Durable data sheet)

Application Area: Walking area, driving area (Durable data sheet)

Slip Resistance: Slip resistance (R Group) R9 in accordance with German workplace ordinance ASR A1.5/1,2 'Floors' per DIN 51130 (Durable data sheet)

Pack Size: 10 pieces (Durable data sheet)

Packed Weight: 96.2 g gross per pack (Durable data sheet)

Country of Origin: United Kingdom (Durable data sheet)

Downloads

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

A rectangular bay takes four corners. Durable makes the L to combine with its stripe, article 170304, for the sides.
Durable lists the self-adhesive type as permanent, so plan bay positions before laying the corners.
On its technical data sheet Durable leaves vehicles manoeuvring on the marking, and pallets dragged, pushed or scraped across it, out of its cover. Bay corners often sit in that path, so set them just beyond the pallet footprint.
Yes. Where one edge of a bay needs a solid border, run Durable tape along that side and keep the L corners at the open corners, as Durable makes the L for combining with other bay markings.
