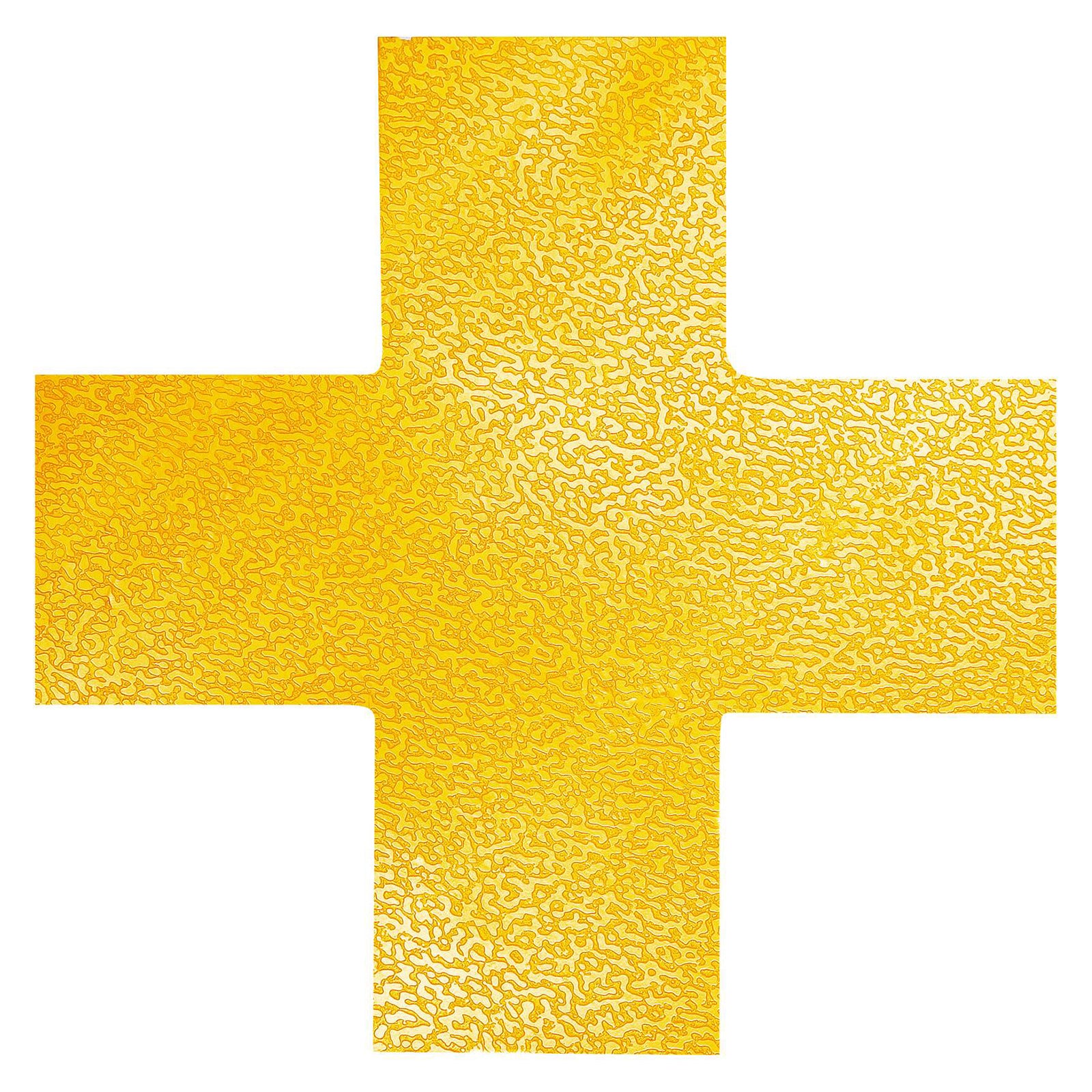

Durable yellow floor marking cross, top view showing the textured surface

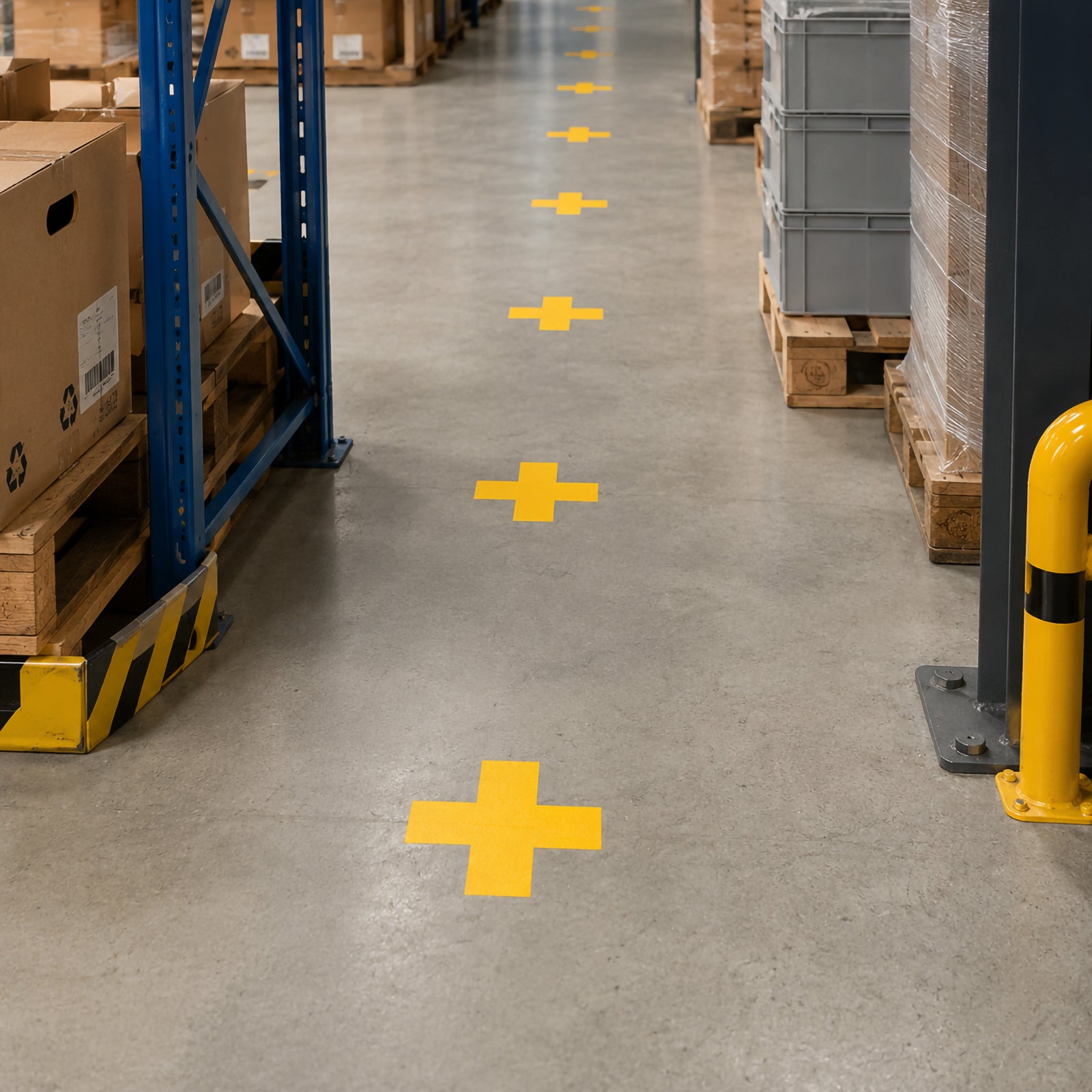

Yellow floor crosses spaced along a warehouse aisle

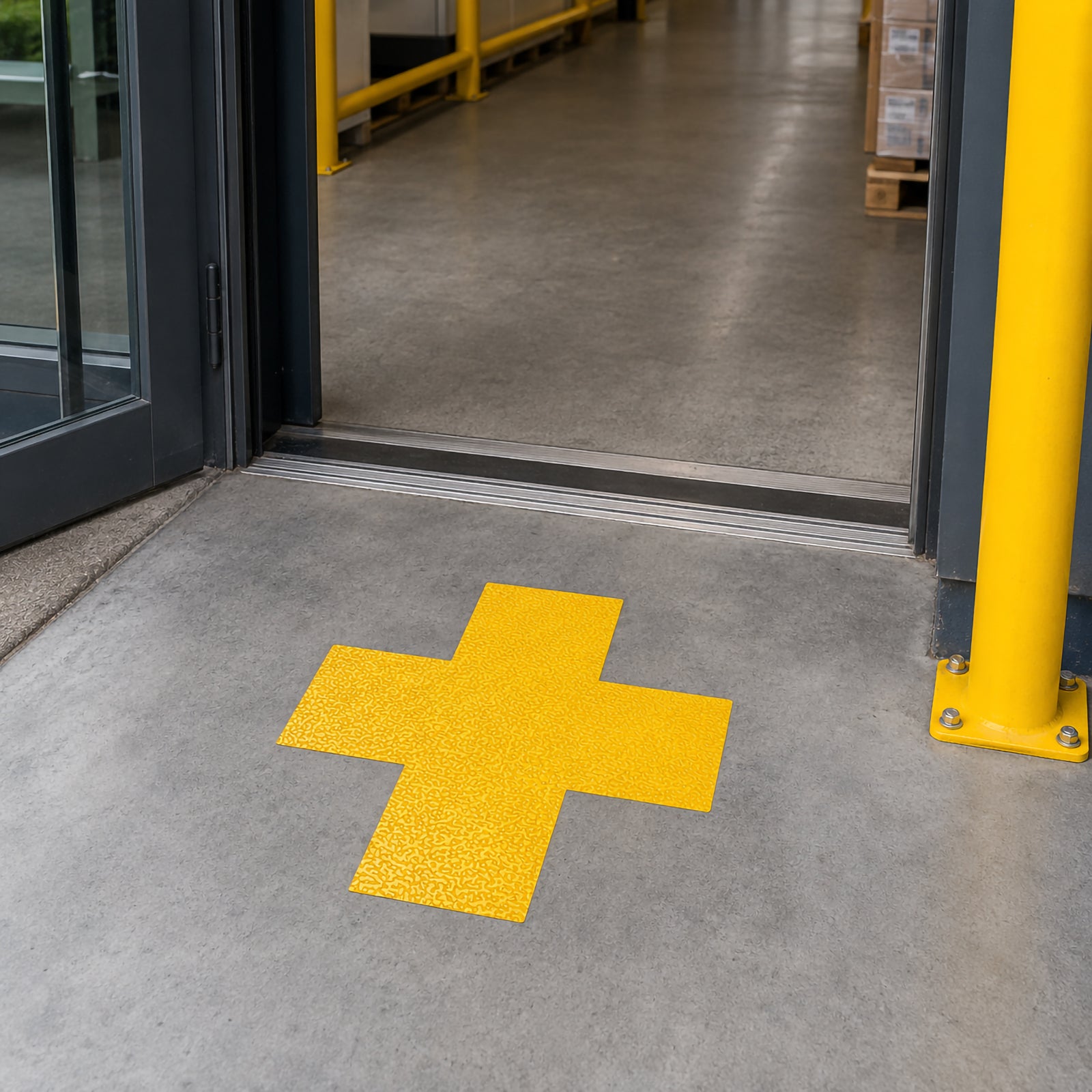

Yellow floor cross at a warehouse doorway beside a yellow bollard

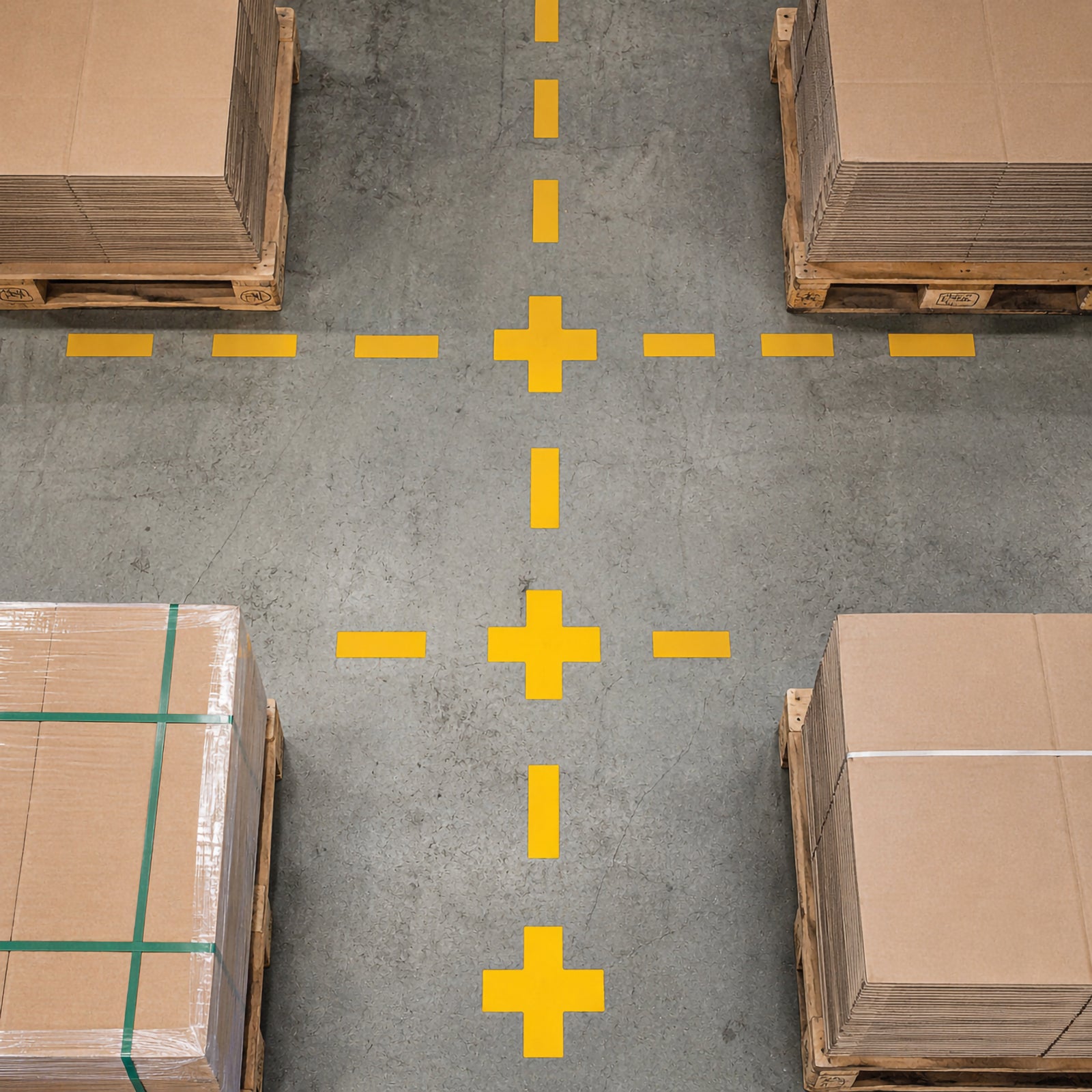

Overhead view of yellow crosses where dashed yellow lines meet between pallets
Durable floor marking cross dimension drawing: 150 x 150 mm, 0.7 mm thick
Durable yellow cross joining a dashed line of yellow stripes beside stacked pallets
Durable yellow floor marking cross, top view showing the textured surface
Yellow floor crosses spaced along a warehouse aisle
Yellow floor cross at a warehouse doorway beside a yellow bollard
Overhead view of yellow crosses where dashed yellow lines meet between pallets
Durable floor marking cross dimension drawing: 150 x 150 mm, 0.7 mm thick
Durable yellow cross joining a dashed line of yellow stripes beside stacked pallets
Durable yellow floor marking cross, top view showing the textured surface
Yellow floor crosses spaced along a warehouse aisle
Yellow floor cross at a warehouse doorway beside a yellow bollard
Overhead view of yellow crosses where dashed yellow lines meet between pallets
Durable floor marking cross dimension drawing: 150 x 150 mm, 0.7 mm thick
Durable yellow cross joining a dashed line of yellow stripes beside stacked pallets
Durable

Durable Floor Marking Shape Cross Yellow Pack 10

$108.90 inc GST
$108.90 inc GST
RRP $121.99
Or 4 payments of $27.23 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: AA170104

Yellow Cross Markers for Junctions, Bay Centres and Set Points

The Durable Floor Marking Shape Cross Yellow Pack 10 is a pack of 10 self-adhesive yellow crosses, each 150 x 150 mm, for marking aisle junctions, the centre of a bay or a fixed set-down point on an inside floor.

Durable describes the cross as a bay marking for storage areas and traffic zones, and lists floor, area and bay marking in logistics, warehousing, production and operations. Its four arms let it join stripe lines running in two directions. On its data sheet the cross is 0.7 mm thick, in signal yellow similar to RAL 1003.

A single cross can stand alone as a spot marker, or sit where two dashed lines meet so a grid of bays reads clearly from above. A row of crosses across a wide floor also gives pickers a fixed set of reference points to work from.

Build dashed lines from the stripes and T shapes in the Durable range, run continuous lines with floor marking tapes, or add workplace signage at the end of each row.

Often ordered together

  • Pack of 10 yellow crosses, each 150 x 150 mm.
  • Durable gives a material thickness of 0.7 mm.
  • Durable lists the self-adhesive type as permanent and the abrasion resistance as normal.
  • Durable states "Slip resistance (R Group) R9 in accordance with German workplace ordinance ASR A1.5/1,2 'Floors' per DIN 51130".
  • Durable lists the application area as walking area, driving area.
  • Durable's material data sheet lists soft PVC foil with acrylic glue.
  • Aisle junctions in a storage grid.
  • Centre points of pallet bays.
  • Set-down points for bins or trolleys.
  • Intersections of dashed bay lines.

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Durable

Manufacturer Code: 170104

EAN: 4005546983554

Shape: Cross

Colour: Signal yellow, similar to RAL 1003 (Durable data sheet)

Size: 150 x 150 mm (W x L, Durable data sheet)

Material Thickness: 0.7 mm (Durable data sheet)

Material: Soft PVC (PVC-P) foil with acrylic glue (Durable material data sheet)

Self-Adhesive Type: Permanent (Durable data sheet)

Abrasion Resistance: Normal (Durable data sheet)

Application Area: Walking area, driving area (Durable data sheet)

Slip Resistance: Slip resistance (R Group) R9 in accordance with German workplace ordinance ASR A1.5/1,2 'Floors' per DIN 51130 (Durable data sheet)

Pack Size: 10 pieces (Durable data sheet)

Packed Weight: 158 g gross per pack (Durable data sheet)

Country of Origin: United Kingdom (Durable data sheet)

Downloads

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

Durable's technical data sheet asks for a dry, firm, flat and clean surface, cleaned of grease and dust, and says a primer is recommended on concrete, wood and asphalt. Durable recommends a test strip first.
Durable's technical data sheet says the marking is immediately accessible on foot, full usage is possible after 48 hours. Keep loaded trolleys off a new junction until then.
Durable gives 150 x 150 mm and a 0.7 mm material thickness. The four arms line up with dashed stripe lines running across and along an aisle.
Durable's technical data sheet says it can be cleaned with warm water and commercially available cleaning agents.
