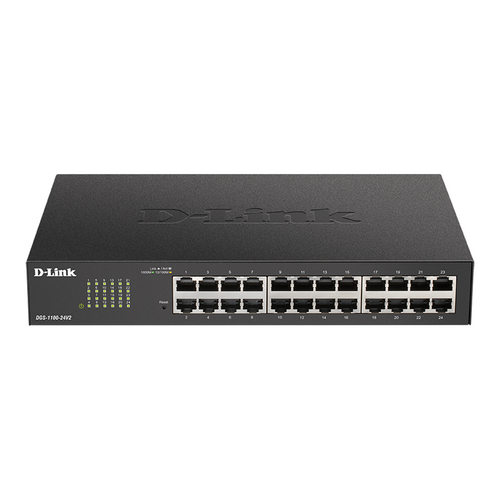

D-Link DGS-1100-24V2 24 port Gigabit switch, front view showing the port LEDs, reset button and 24 network ports

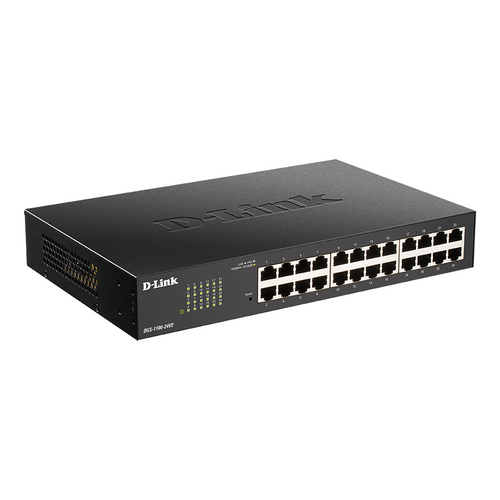

D-Link DGS-1100-24V2 switch angled from the front left, showing the black metal case and two rows of network ports

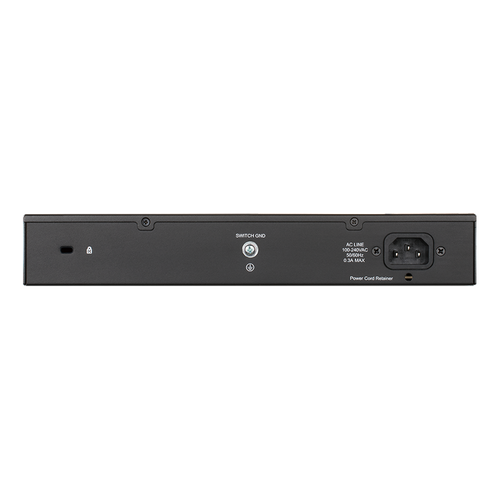

Rear panel of the D-Link DGS-1100-24V2 switch with security slot, earth screw and AC power inlet
D-Link DGS-1100-24V2 24 port Gigabit switch, front view showing the port LEDs, reset button and 24 network ports
D-Link DGS-1100-24V2 switch angled from the front left, showing the black metal case and two rows of network ports
Rear panel of the D-Link DGS-1100-24V2 switch with security slot, earth screw and AC power inlet
D-Link DGS-1100-24V2 24 port Gigabit switch, front view showing the port LEDs, reset button and 24 network ports
D-Link DGS-1100-24V2 switch angled from the front left, showing the black metal case and two rows of network ports
Rear panel of the D-Link DGS-1100-24V2 switch with security slot, earth screw and AC power inlet
D-Link

D-Link DGS-1100-24V2 24-Port Gigabit Smart Managed Switch

Regular price
$196.90
Sale price
$196.90
Regular price
Normally $262.54
Or 4 payments of $65.64 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: DSDGS-1100-24V2

UPC: 0790069451775

MPN: DGS-1100-24V2

D-Link DGS-1100-24V2 24 Port Gigabit Smart Managed Switch

The D-Link DGS-1100-24V2 is a Layer 2 smart managed switch with 24 10/100/1000BASE-T ports, a fanless design and a built in power supply, sized to sit on a desk or mount in a 19 inch rack.

D-Link lists a 48 Gbps switching capacity, 4K VLAN groups with dedicated surveillance and voice VLANs, IGMP snooping, link aggregation, spanning tree and QoS with bandwidth control. Setup runs through a web based GUI and the D-Link Network Assistant utility, and D-Link lists no command line interface for this model.

Putting cameras or VoIP handsets on their own VLAN keeps that traffic apart from general office data, and IGMP snooping sends multicast traffic only where it is needed. Cable diagnostics help trace a faulty run, and D-Link lists jumbo frame support up to 9216 bytes.

Patch it in with Cat6 network cables, see more network switches and networking products, or browse the D-Link products we stock when planning an office, warehouse or classroom network with structured cabling.

  • 24 x 10/100/1000BASE-T Gigabit ports
  • Layer 2 smart managed switch with a web based GUI
  • 48 Gbps switching capacity
  • 4K VLAN groups plus surveillance VLAN and voice VLAN
  • QoS, bandwidth control and IGMP snooping
  • Fanless design with a built in power supply
  • Desktop or 19 inch rack mountable
  • Small business office networks
  • Separating VoIP phones onto a voice VLAN
  • Placing IP surveillance cameras on a dedicated VLAN
  • School computer labs and classrooms
  • Rack mounted network cabinets

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: D-Link

Model: DGS-1100-24V2

Switch Type: Layer 2 smart managed

Ports: 24 x 10/100/1000BASE-T

Switching Capacity: 48 Gbps

VLAN: 4K groups, surveillance VLAN, voice VLAN

Jumbo Frame: 9216 bytes

Features: QoS, spanning tree, link aggregation, IGMP snooping, cable diagnostics

Management: Web based GUI, no command line interface

PoE: None

Cooling: Fanless

Power Supply: Built in

Mounting: Desktop or 19 inch rack mountable

Dimensions: 280 x 180 x 44mm

Series: DGS-1100 Series

FAQs

No. D-Link lists the PoE type as None for this model. D-Link sells PoE versions in the same series, such as the DGS-1100-24PV2, as separate products.
D-Link lists the DGS-1100-24V2 as desktop and 19 inch rack mountable. The product page does not list the mounting hardware supplied, so confirm the box contents if rack ears are needed.
No. D-Link lists the command line interface as No for this model. Configuration is done through the browser based management page and D-Link's Network Assistant tool.
No. D-Link lists a fanless design for silent operation on the DGS-1100-24V2. There is no fan to clean or replace.
No. D-Link lists static routing as No for the DGS-1100-24V2, which D-Link classes as a Layer 2 switch.
