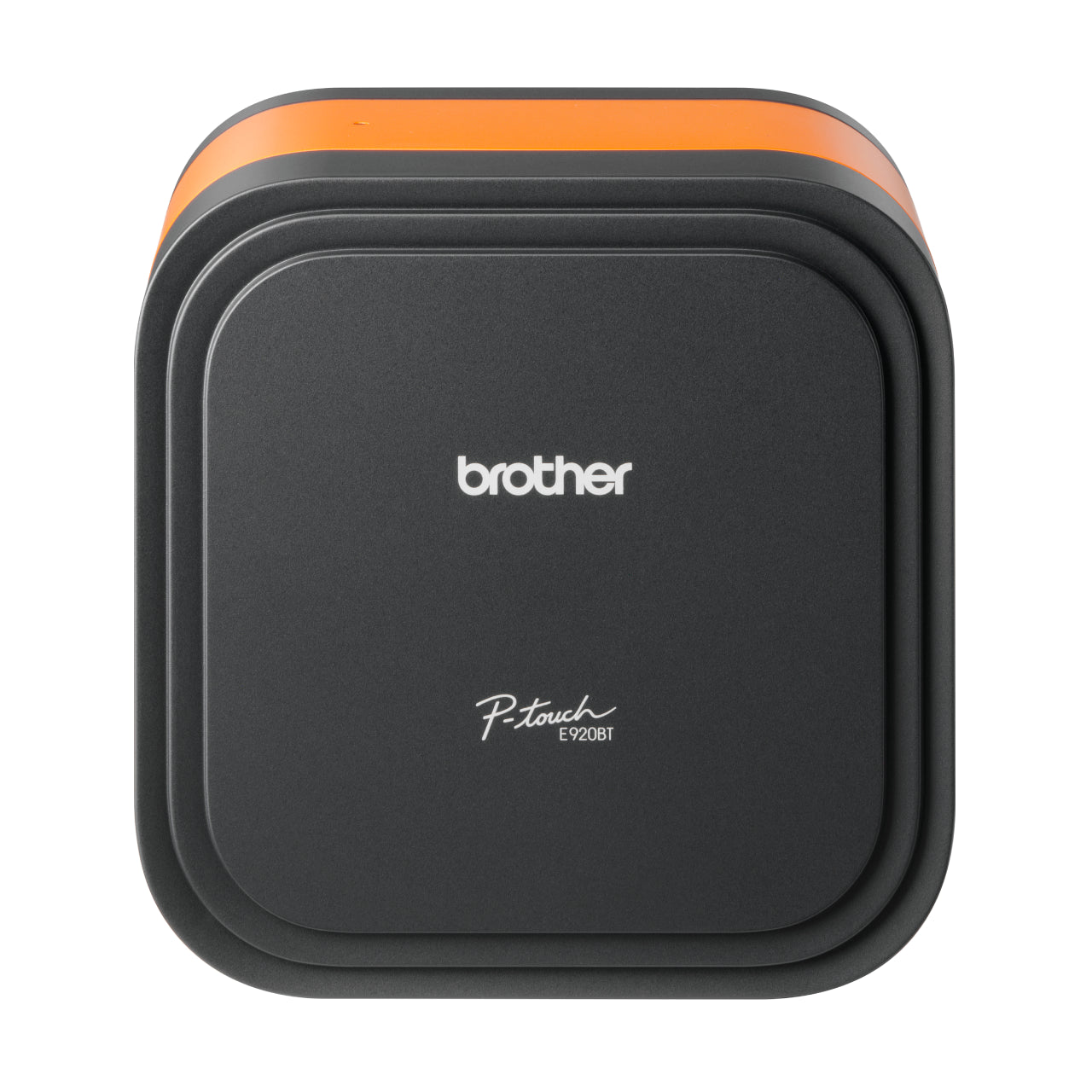

Brother PT-E920BT P-touch CUBE Pro Label Maker front view

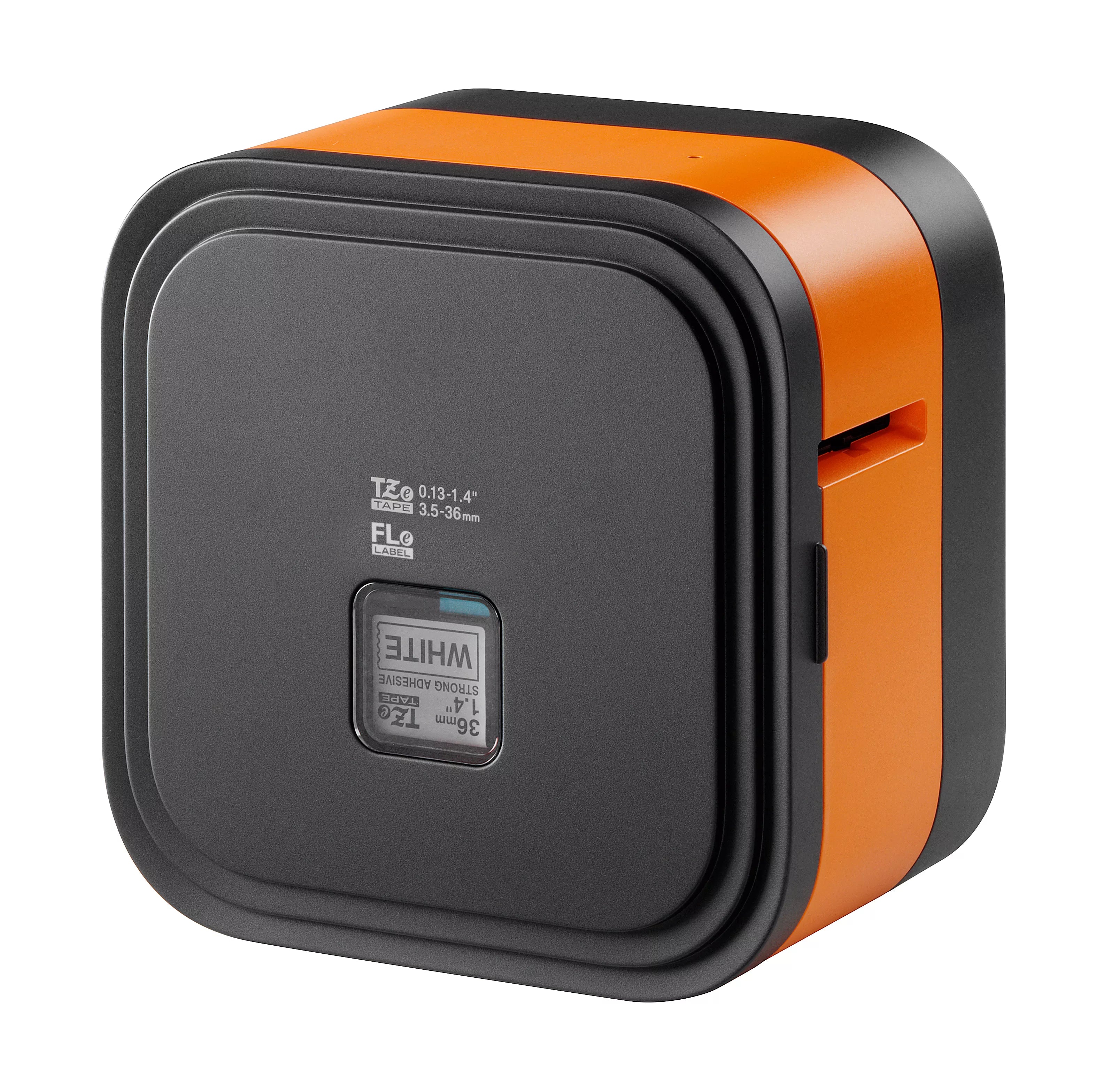

Brother PT-E920BT P-touch CUBE Pro Label Maker right side view

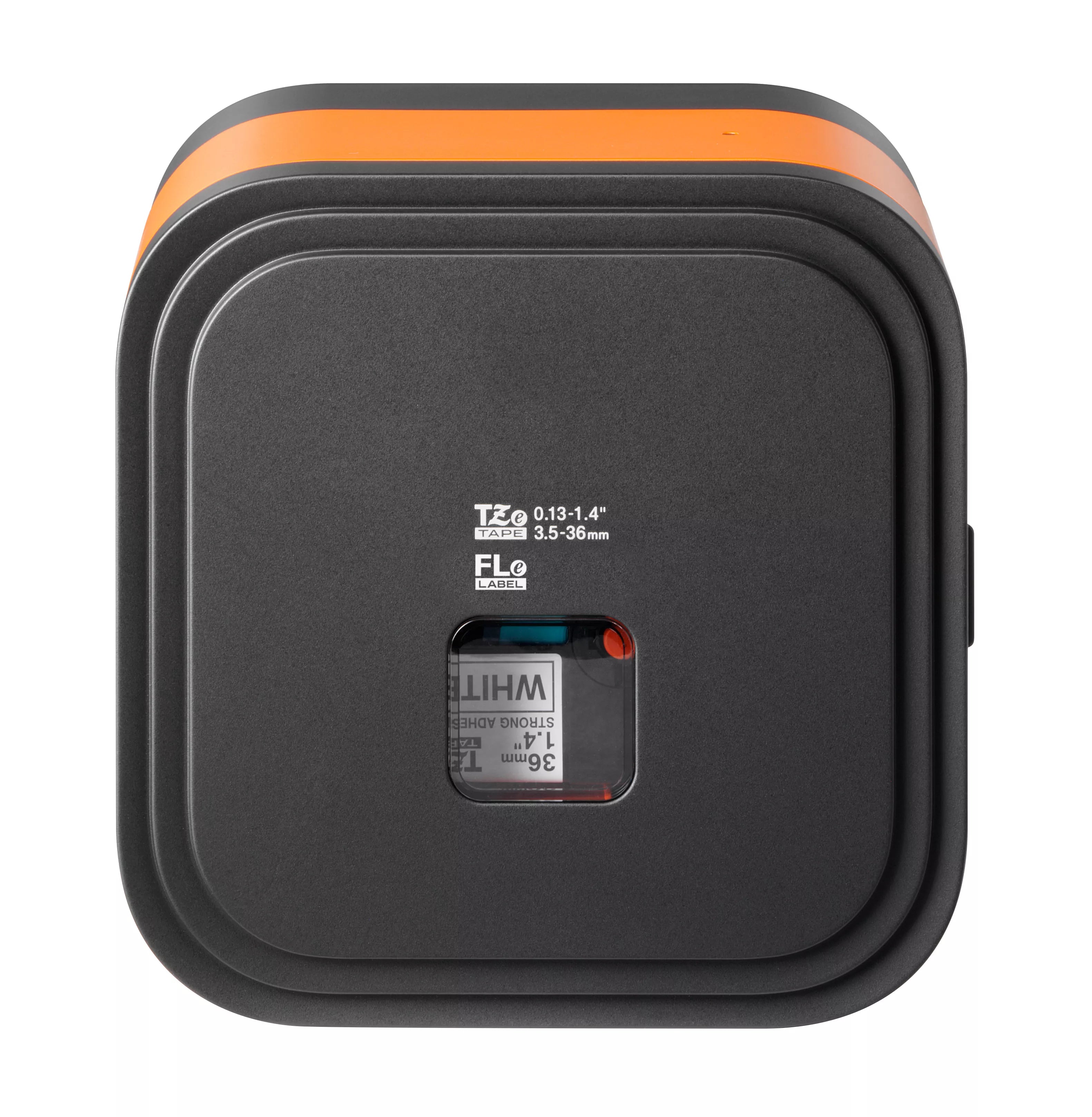

Brother PT-E920BT P-touch CUBE Pro Label Maker rear view
Brother PT-E920BT P-touch CUBE Pro Label Maker front view
Brother PT-E920BT P-touch CUBE Pro Label Maker right side view
Brother PT-E920BT P-touch CUBE Pro Label Maker rear view
Brother PT-E920BT P-touch CUBE Pro Label Maker front view
Brother PT-E920BT P-touch CUBE Pro Label Maker right side view
Brother PT-E920BT P-touch CUBE Pro Label Maker rear view
Brother

Brother PT-E920BT P-Touch Cube Pro Industrial Label Maker

Regular price
$524.77
Sale price
$524.77
Regular price
RRP
Or 4 payments of $131.19 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: DSPT-E920BT

Industrial Wide Format Labelling In One Hand

The Brother PT-E920BT prints 36mm TZe, HGe high grade tape and FLe flag labels at 360 dpi from a rechargeable battery, in a unit small enough to carry up a ladder.

FLe flag label support is what separates this from the general purpose Cube Pro. An FLe cassette produces a pre shaped 21mm by 45mm flag in one pass rather than asking you to fold a length of tape and hope it sits square, which on a comms rack with three hundred patch leads is the difference between an afternoon and a morning.

It prints at 360 dpi with a maximum print height of 32mm, and the automatic cutter does both a full cut and a half cut so a run of markers stays joined until you separate them. Design happens in Brother's Pro Label Tool app over Bluetooth or in P-touch Editor 6 over USB Type-C.

Replacement cassettes are in the Brother TZe tape range across all seven widths. One important limit: this machine does not take HSe heat shrink tube, so conductor sleeving needs a Brother PT-P900W, PT-P950NW or the keyboard equipped PT-E560BTVP.

  • Takes Brother TZe and HGe cassettes in 3.5mm, 6mm, 9mm, 12mm, 18mm, 24mm and 36mm widths
  • Runs FLe flag label cassettes for pre shaped 21mm x 45mm cable flags in a single pass
  • Prints at 360 dpi with a maximum print height of 32mm
  • Automatic cutter with both full cut and half cut for continuous batch runs
  • Rechargeable PA-BT-003 Li-ion battery included, charging over USB Type-C
  • Bluetooth and USB Type-C to Brother Pro Label Tool or P-touch Editor 6
  • 138mm chassis weighing about 1.17kg with the battery fitted
  • Comms rack, patch panel and structured cabling identification using FLe flags
  • Switchboard, control panel and distribution board labelling on wide tape
  • Compliance, rating plate and industrial safety marking up to 36mm
  • Asset registers and plant tagging for maintenance and facilities teams
  • Site labelling where a mains powered desktop printer is not practical

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Brother

Model: PT-E920BT

SKU: DSPT-E920BT

EAN: 4977766847841

Tape Widths: 3.5mm, 6mm, 9mm, 12mm, 18mm, 24mm and 36mm

Tape Type: Brother TZe, HGe and FLe flag label

Maximum Tape Width: 36mm

Heat Shrink Tube: Not supported on this model

Print Resolution: 360 dpi

Print Speed: Maximum 20mm per second

Maximum Print Height: 32mm

Cutter: Automatic full cut and half cut

Connectivity: USB 2.0 Type-C and Bluetooth

Power: PA-BT-003 rechargeable Li-ion battery, included, charged over USB Type-C

Dimensions: 138mm W x 94mm D x 138mm H

FAQs

Brother TZe and HGe cassettes in 3.5mm, 6mm, 9mm, 12mm, 18mm, 24mm and 36mm. Thirty six millimetres is the maximum. Only four machines in our range reach it: this one, the PT-P910BT, the PT-P900W and the PT-P950NW.
No, and this is worth checking before you buy. Brother's own user guide lists the supported cassettes for this model as TZe, HGe and FLe only, and HSe heat shrink tube is not among them. For printed conductor sleeving you need a PT-E310BTVP, PT-E560BTVP, PT-P700, PT-P750W, PT-P900W or PT-P950NW.
An FLe cassette prints a pre shaped 21mm by 45mm flag label designed to wrap a cable and stand off it as a readable tab. You get a square, consistent flag in one pass instead of folding a length of standard tape. On a rack with hundreds of patch leads it saves a great deal of time.
No. The PT-E920BT is driven from a phone or tablet using Brother's Pro Label Tool app over Bluetooth, or from a computer with P-touch Editor 6 over USB Type-C. If you need a keyboard on an industrial machine, the PT-E560BTVP has one.
Yes. The PA-BT-003 rechargeable Li-ion battery is supplied in the box and charges over the USB Type-C connection.

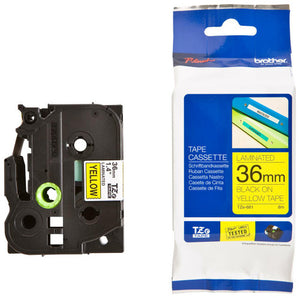

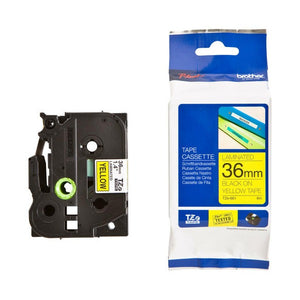

The PT-E920BT machine, a 36mm TZe black on yellow strong adhesive tape cassette, a USB Type-C cable and the PA-BT-003 rechargeable Li-ion battery.
Brother Australia covers the PT-E920BT with a 3 year return to base warranty.
