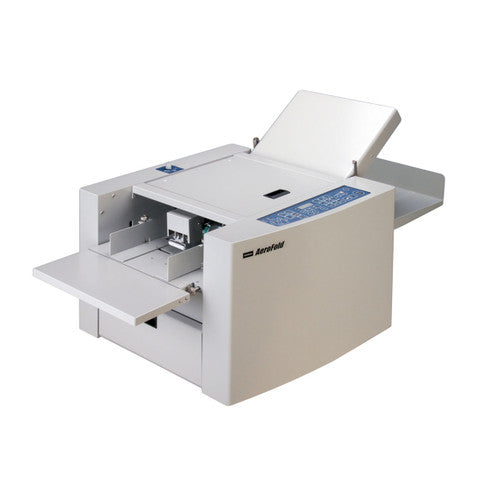

Uchida Aerofold Plus Folding Machine
- Regular price
- $28,138.51
- Sale price
- $28,138.51
- Regular price
-
RRP $31,515.22
SKU: AA0358130
UPC: 9311960358133
MPN: 0358130
Uchida 0358130 AeroFold Plus Folding Machine
Abstract - UCHIDA’s Paper Folding Machine The AeroFold Plus. Its belt suction feeding system can feed and fold up to SRA3 size of various types of papers, such as offset, coated, art, digitally printed papers and more. Now it has a more powerful motor, that enhances its productivity to up to 18,000 folds per hour.
FEATURE:
Uchida paper folding machine AeroFold Plus can fold up to SRA3 size of various types of papers such as offset, coated, digitally printed papers, etc. by its belt suction feeding system.
- Paper weight up to 160 gsm. (up to 230 gsm for single fold)
- Paper size up to 330(W)x488(L) mm. / Folding speed up to 18,000 sheets/hour. (single fold)
- Memory function for fine folding position adjustments & odd size papers
- Error detection & indication makes it easy to diagnose.
- Double feed detection alarms when it feeds double sheets.
- With optional accessories, perforating, scoring, folding longer sheets becomes possible.
SPECIFICATIONS:
| Maximum Paper Size | 330mm (W) x 488mm (L) |
| Minimum Paper Size | 120mm (W) x 210mm (L) |
| Maximum Paper Weight | 160g/m2 (Single fold : 230g/m2) |
| Minimum Paper Weight | 52.3g/m2 |
| Maximum Stacking Capacity | 800 sheets (80g/m2) |
| Folding Pattern | Single, Letter, Zigzag, Double Parallel. Fold-Out. |
| Maximum Folding Speed | 18,000/hr |
| Speed Adjustment | Adjustable (in 5 steps) |
| Folding pattern setting | Automatic |
| Folding Position Setting | Automatic |
| Feed Table Elevation | Automatic |
| Counter | 4 digits, addition/subtraction digital counter |
| Preset Function | Equipped |
| Paper Feeding system | Upper Belt Feeding system |
| Memory Function | 30 kinds |
| Memory function of fold data for outer norm paper | 3 kinds |
| Automatic Paper Size detection | A3, A4, A5, (Letter, Regal, Leger – For U.S.) |
| Air Blowing System | Bulit-in Blower system |
| Paper Ejection System | Conveyer Belt (Automatic speed setting) |
| Length of election table: 340mm | |
| Double Feed Detection | Equipped |
| Paper Jam Detection | Equipped |
| Empty Feed Detection | Equipped |
| Cover Open Detection | Equipped |
| Immediate Stop function | Equipped (In casse of paper jam) |

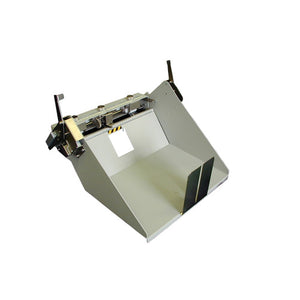

| Option | Perforator unit/Scoring unit/Delivery tray extension/Folding table for single folding 630mm length paper |
| Paper Ejection Roller | Automatic setting |
| Slant adjustment | Equipped |
| Total (Maintenance) Counter | Total (Maintenance) Counter |
| Batch function | Equipped |
| Dimensions | 1,170W x 587L x 650H mm (in operation) |
| Voltage/Hz | AC100 – 240V/50Hz, 60Hz |
| Weight | 68kgs (net) |
