Staedtler Mars Professional Ellipse Master Template 977 505
- Regular price
- $39.79
- Sale price
- $39.79
- Regular price
-
RRP $42.68
At checkout.
Free and simple to apply.
Approx every 2 weeks.
See your payment schedule for full breakdown of your instalments and due dates in the Afterpay app or web portal after you check out. Your instalments and due dates will take into account your preferred payment date, and whether no payment upfront or higher upfront payment applies.
Late fees, eligibility criteria and T&Cs apply. Australian credit licence 527911.
SKU: SR977 505
UPC: 031901900847
MPN: 977 505
Metric Ellipse Master Template With 68 Ellipses

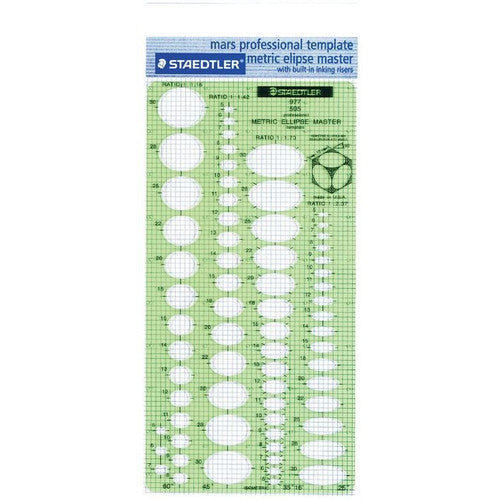

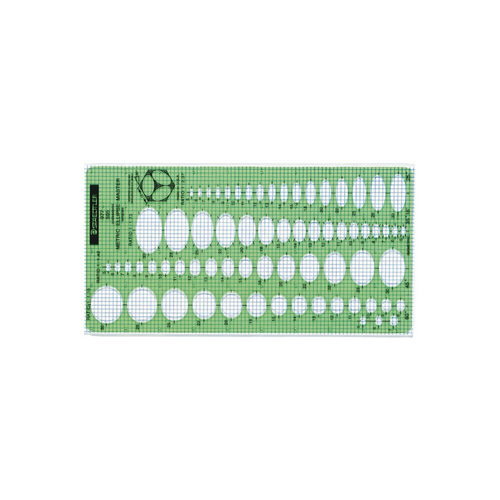

Staedtler 977 505 is the Mars professional ellipse master, a metric template with 68 ellipses from 5 mm to 30 mm set out in four projections.
A circle seen at an angle becomes an ellipse, and the ellipse narrows as the viewing angle drops. Having four projections side by side lets you match the right ellipse to the perspective of a cylinder, wheel, cup or hole, instead of drawing it freehand. The template labels each column by its axis ratio, which you can read in the photo as 1:1.16, 1:1.42, 1:1.73 and 1:2.37.
Staedtler make it from 0.8 mm green transparent plastic with a matte side against glare, and add built-in inking risers so a technical pen can follow the opening without a smear. Identification and the 200 mm scale are printed in black. For accurate sizes Staedtler specify a 0.5 mm pencil lead.
Related ranges: drawing supplies, rulers and geometry, mechanical drawing pencils and Staedtler.
