Staedtler

Staedtler Mars Triangular Reduction Scale Ruler 56198DINBK

$23.34
$23.34
RRP $25.19
Or 4 payments of $5.84 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: SR56198DINBK

UPC: 4007817148105

MPN: 56198DINBK

Fine Reduction Ratios For Detail And Product Drawing

Staedtler Mars 56198DINBK is the DIN version of the Mars 561 triangular reduction scale ruler, with 1:2.5, 1:5, 1:10, 1:20, 1:50 and 1:100.

This is the version to pick when the drawing is of an object rather than a building. Ratios of 1:2.5, 1:5 and 1:10 suit furniture, joinery and product parts, and the ruler still reaches 1:50 and 1:100 for general arrangement views. Staedtler call it the DIN version; that is their name for this scale set, and they publish no further standard statement for it.

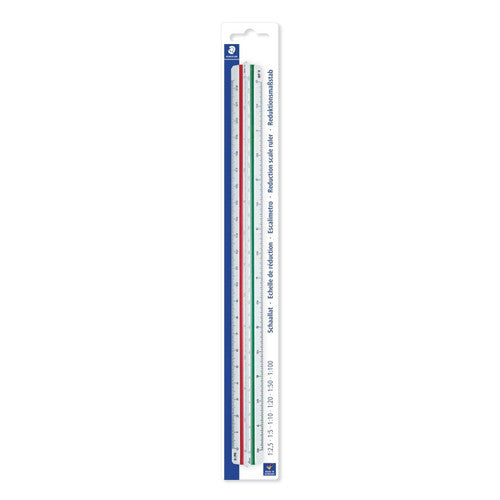

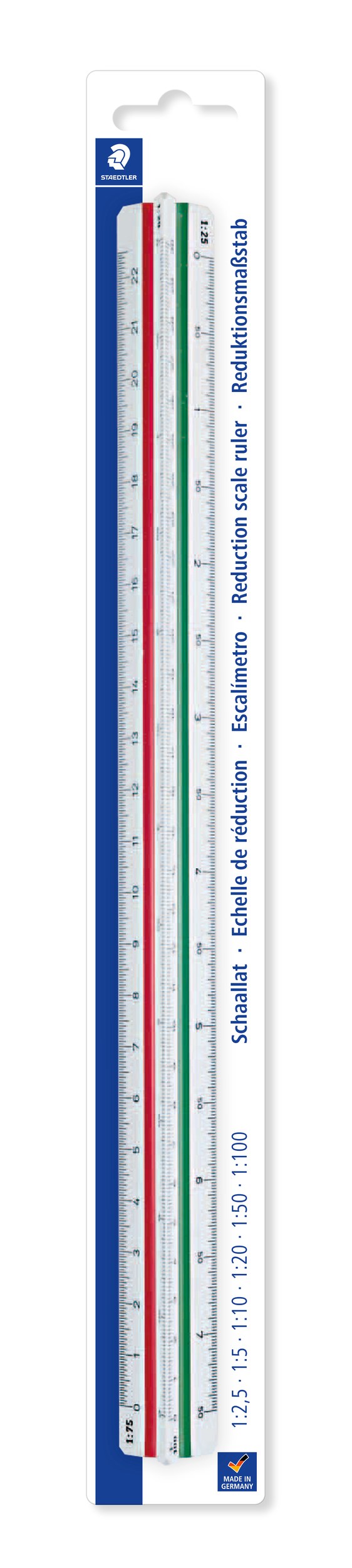

The body is solid white plastic in the familiar three-sided shape, with six scales and colour-coded grooves between them. It arrives on a hangable blistercard printed with the ratios, and Staedtler state the 561 is made in Germany.

Find more scale rulers, Staedtler geometry tools, rulers and set squares and Staedtler.

Often ordered together

  • DIN version: 1:2.5, 1:5, 1:10, 1:20, 1:50, 1:100
  • Fine reductions for objects and parts
  • Six scales on a three-sided body
  • Grooves colour-coded to each scale
  • Made from solid white plastic
  • Germany is the country of manufacture, per Staedtler
  • Furniture and joinery drawings
  • Product and industrial design study
  • Detail views at 1:5 or 1:10
  • General arrangements at 1:50 or 1:100

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Staedtler

Range: Mars 561 reduction scale ruler

MPN: 56198DINBK

Mega Code: SR56198DINBK

Version: Version DIN

Scales: 1:2.5, 1:5, 1:10, 1:20, 1:50, 1:100

Profile: Triangular, 6 scales, colour-coded grooves

Material: Solid white plastic, per Staedtler

Packaging: Hangable blistercard of 1 ruler

Country of Manufacture: Germany, as stated by Staedtler

Staedtler Australia Unit: 1 blistercard, minimum order 1

Pack Size: 1

Unit: Each

EAN: 4007817148105

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

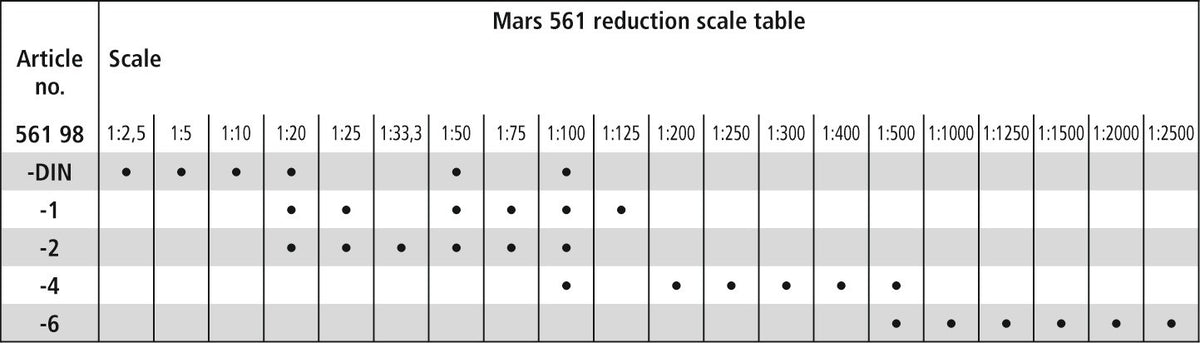

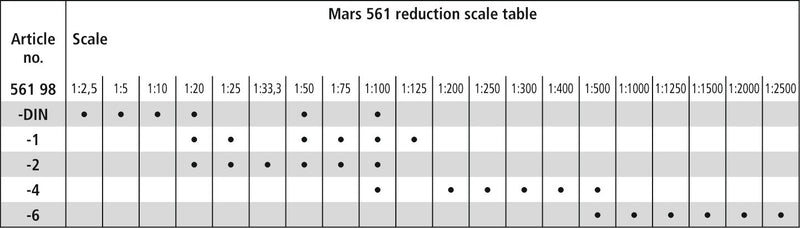

1:2.5, 1:5, 1:10, 1:20, 1:50 and 1:100, matching the blistercard and the Staedtler AU product page.
It is the name Staedtler give this scale set. Staedtler Australia do not publish any compliance or certification statement for it, so we make none.
It covers 1:20, 1:50 and 1:100, but lacks 1:25, 1:75 and 1:125. Version 1 is the usual pick for building plans.
One ruler on a blistercard. Staedtler Australia sell the DIN version by the single card.
