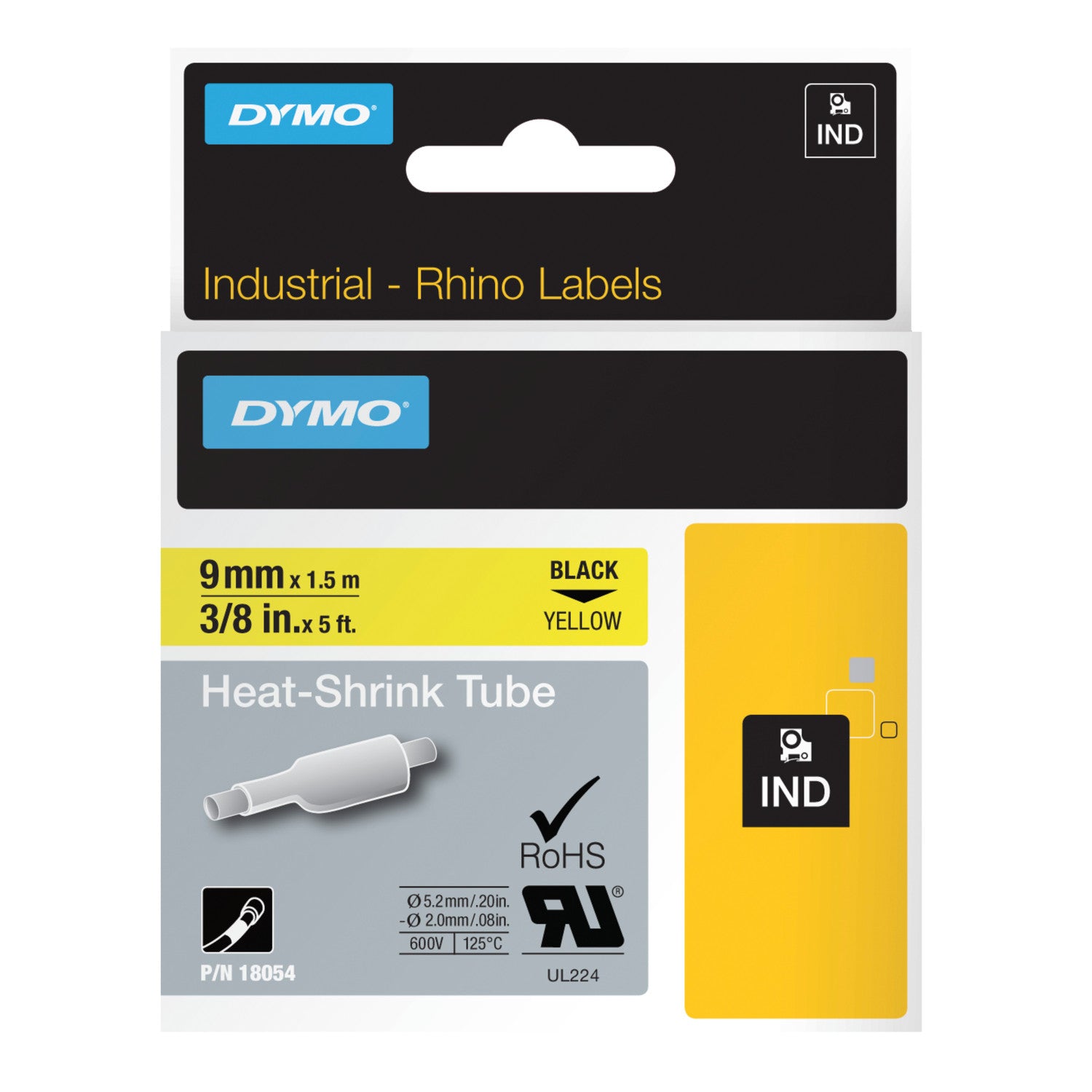

Dymo Rhino 18054 heat-shrink tube retail pack, 9mm x 1.5m, black on yellow, printed with P/N 18054, RoHS and UL224 marks

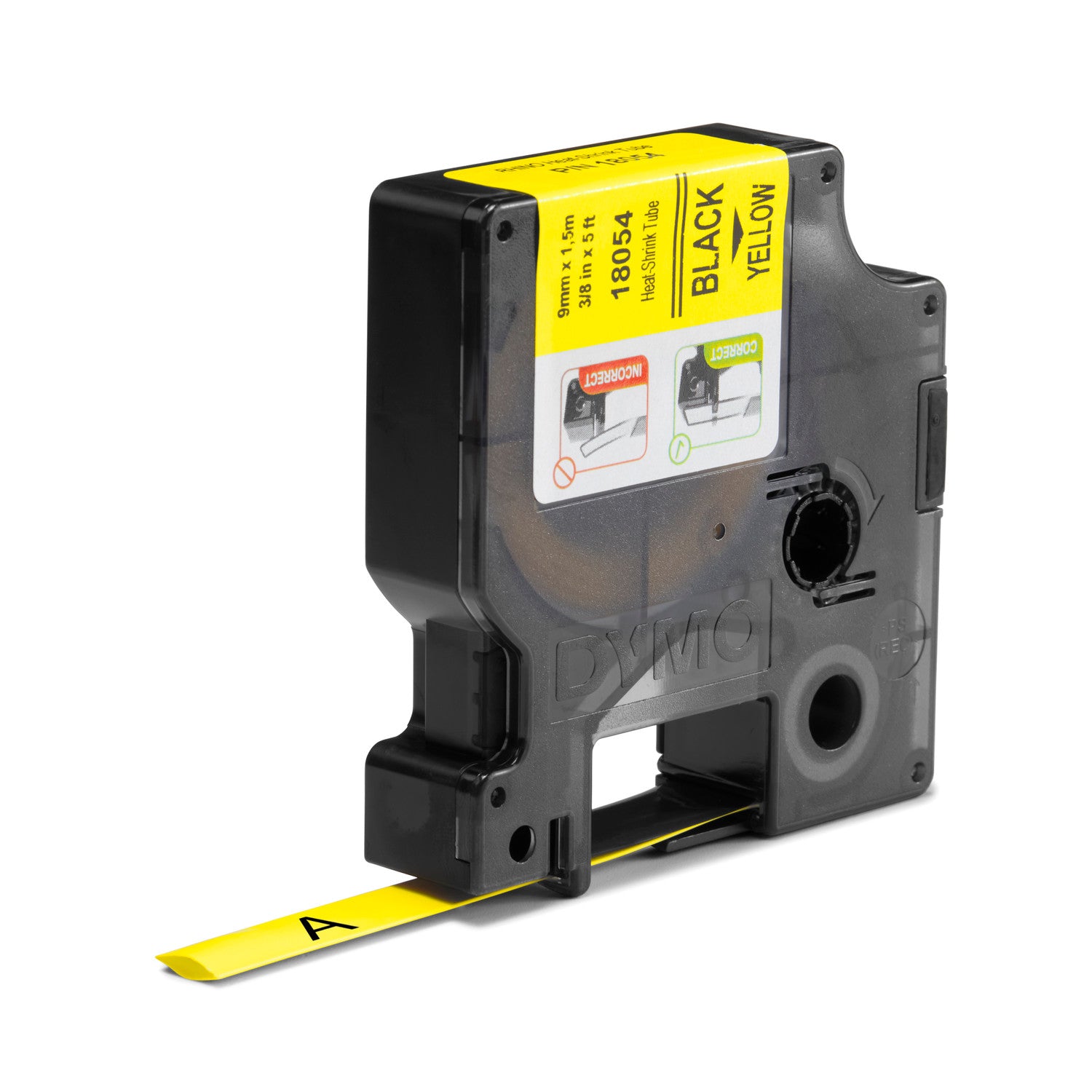

Dymo Rhino 18054 heat shrink tube cassette with yellow 9mm tube printed in black extending from the exit slot

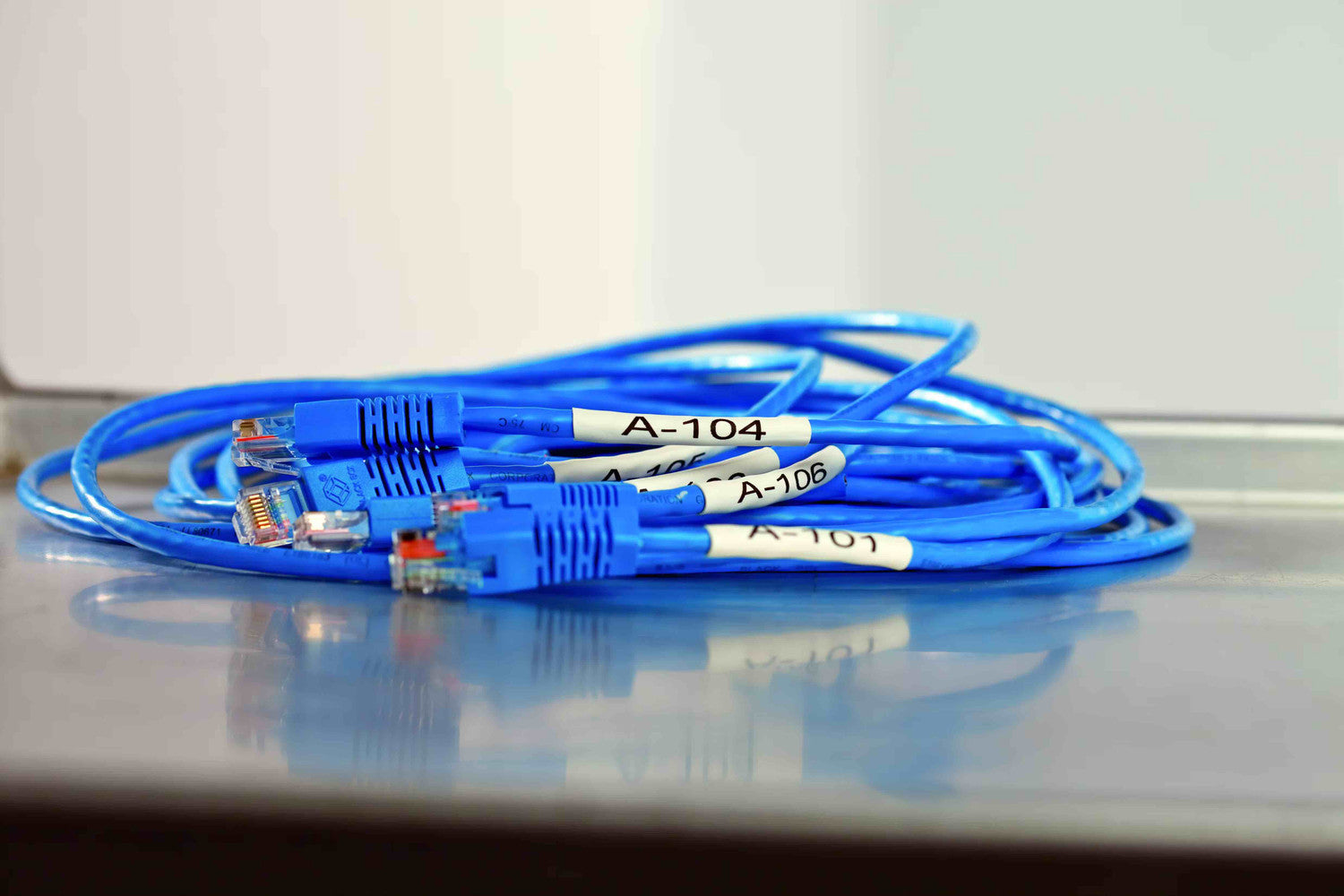

Blue network patch cables fitted with white printed sleeve markers reading A-104, A-105, A-106 and A-101
Dymo Rhino 5200 label printer resting on a coil of yellow network cable fitted with white printed cable markers
Dymo Rhino 18054 heat-shrink tube retail pack, 9mm x 1.5m, black on yellow, printed with P/N 18054, RoHS and UL224 marks
Dymo Rhino 18054 heat shrink tube cassette with yellow 9mm tube printed in black extending from the exit slot
Blue network patch cables fitted with white printed sleeve markers reading A-104, A-105, A-106 and A-101
Dymo Rhino 5200 label printer resting on a coil of yellow network cable fitted with white printed cable markers
Dymo Rhino 18054 heat-shrink tube retail pack, 9mm x 1.5m, black on yellow, printed with P/N 18054, RoHS and UL224 marks
Dymo Rhino 18054 heat shrink tube cassette with yellow 9mm tube printed in black extending from the exit slot
Blue network patch cables fitted with white printed sleeve markers reading A-104, A-105, A-106 and A-101
Dymo Rhino 5200 label printer resting on a coil of yellow network cable fitted with white printed cable markers
Dymo Rhino

Dymo Rhino Heat Shrink Tube Label Tape 9mm x 1.5m Black on Yellow

Regular price
$51.02
Sale price
$51.02
Regular price
Normally $58.30
Or 4 payments of $14.58 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: SD18054

UPC: 071701180544

MPN: 18054

Dymo Rhino 18054 Heat Shrink Tube, 9mm Black on Yellow

Dymo Rhino 18054 prints black characters onto a 9mm yellow heat shrink tube, supplied as a 1.5m cassette for marking individual wires and cores. The pack prints a diameter range of Ø 5.2mm to Ø 2.0mm for this width.

Dymo's heat shrink data sheet covers this part and describes the material as flame retardant polyolefin with a 3:1 shrink ratio. Marks are permanent straight after printing, the sheet says, and remain legible when the sleeve meets solvents, fuels or oils. It also records a maximum of 600 V and 125°C under UL224 testing and a total thickness no greater than 0.5mm.

A 9mm sleeve sits between the 6mm and 12mm parts in the same range, so a panel builder can match the tube to each conductor rather than forcing the same size everywhere. Dymo's data sheet says the sleeves may also add strain relief and insulation, beyond carrying the printed reference.

The Rhino 4200 user guide gives 3/8 inch among its cartridge widths and names heat shrink tubes among Rhino materials. Compare Dymo Rhino label tapes or view Rhino label makers and labelling consumables.

  • Black print on a 9mm yellow heat shrink tube, 1.5m per cassette
  • Dymo's data sheet: flame retardant polyolefin with a 3:1 shrink ratio
  • Dymo's data sheet: marks are permanent immediately after printing
  • Dymo's data sheet: print stays legible when exposed to solvents, fuels and oils
  • Dymo's data sheet: rated 600 V and 125°C maximum, tested per UL224
  • Dymo's data sheet: UL Recognized as a component to UL224, file E348356
  • Dymo's data sheet: meets SAE-DTL-23053/5 classes 1 and 3, with mark permanence to MIL-M-81531 and MIL-STD-202G
  • Marking wires and cores in switchboards
  • Colour-coding a circuit group in a control panel
  • Identifying conductors at terminal strips
  • Numbering cables in equipment and machinery wiring

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Dymo Rhino

Dymo Part Number: 18054

Product Type: Heat shrink tube label cassette

Print Colour: Black

Tube Colour: Yellow

Width: 9mm

Length: 1.5m

Material: Dymo's data sheet gives flame retardant polyolefin

Shrink Ratio: Dymo's data sheet gives 3:1

Voltage and Temperature: Dymo's data sheet gives 600 V maximum and 125°C maximum operating temperature, tested per UL224

Total Thickness: Dymo's data sheet gives 0.5mm maximum

Pack Diameter Marking: Dymo's pack prints Ø 5.2mm to Ø 2.0mm

UL Status: Dymo's data sheet lists UL Recognized as a component to UL224, file E348356

Printers Named by Dymo: the Rhino 4200 and Rhino 5200 user guides cover those printers, and Dymo's catalogue names the Rhino 6000

Cassette Shelf Life: Dymo's data sheet gives two years stored at 21°C and 50% relative humidity

FAQs

The Rhino 4200 and Rhino 5200 user guides each list Rhino cartridges in widths of 1/4, 3/8, 1/2 and 3/4 inch and name heat shrink tubes among the materials, and Dymo's Labelling Solutions Guide ticks heat-shrink tube labels for both printers. Dymo's ANZ catalogue states that the Rhino 6000 prints heat-shrink tubes.
Dymo's pack for part 18054 prints a diameter range of Ø 5.2mm to Ø 2.0mm, and Dymo's data sheet gives a 3:1 shrink ratio. Measure the cable's outside diameter and compare it with that range before printing a batch.
Dymo's data sheet reports severe discolouration of the yellow tube after 30 days of constant UV exposure, with the yellow colour disappearing. The print itself showed no visible effect, so plan for that result if colour coding must last in direct sun.
Dymo's data sheet states the marks are permanent immediately after printing and remain legible when exposed to solvents, fuels and oils. In its immersion test on tubing printed with a Rhino 6000, 10 minute soaks in IPA, kerosene or MIL 7808 oil left no visible defects on the printing. With 30 minute soaks repeated over 5 cycles and a swab rub, kerosene caused moderate smudging.
