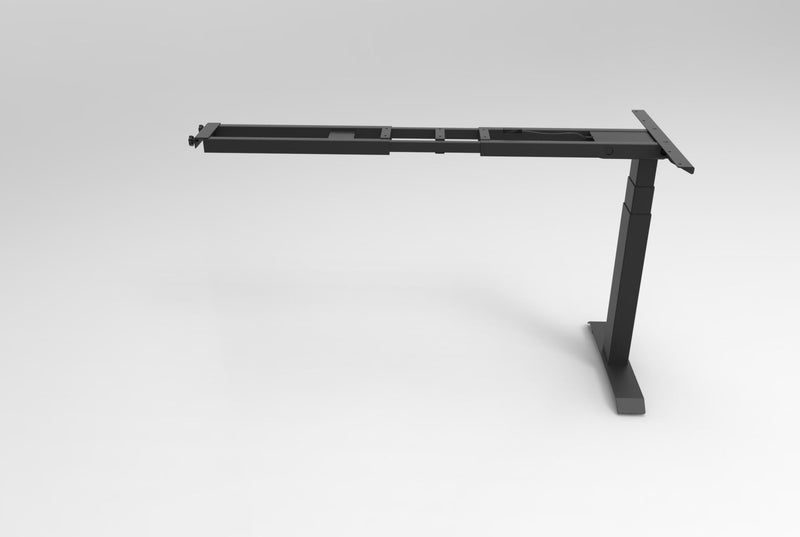

Rapidline Boost Plus electric height adjustable return frame in black satin powdercoat for electric height adjustable workstations. Supplied product image for model B2-RF BL.
Rapidline Height Adjustable Return Frame Only Black for Boost Plus Workstation

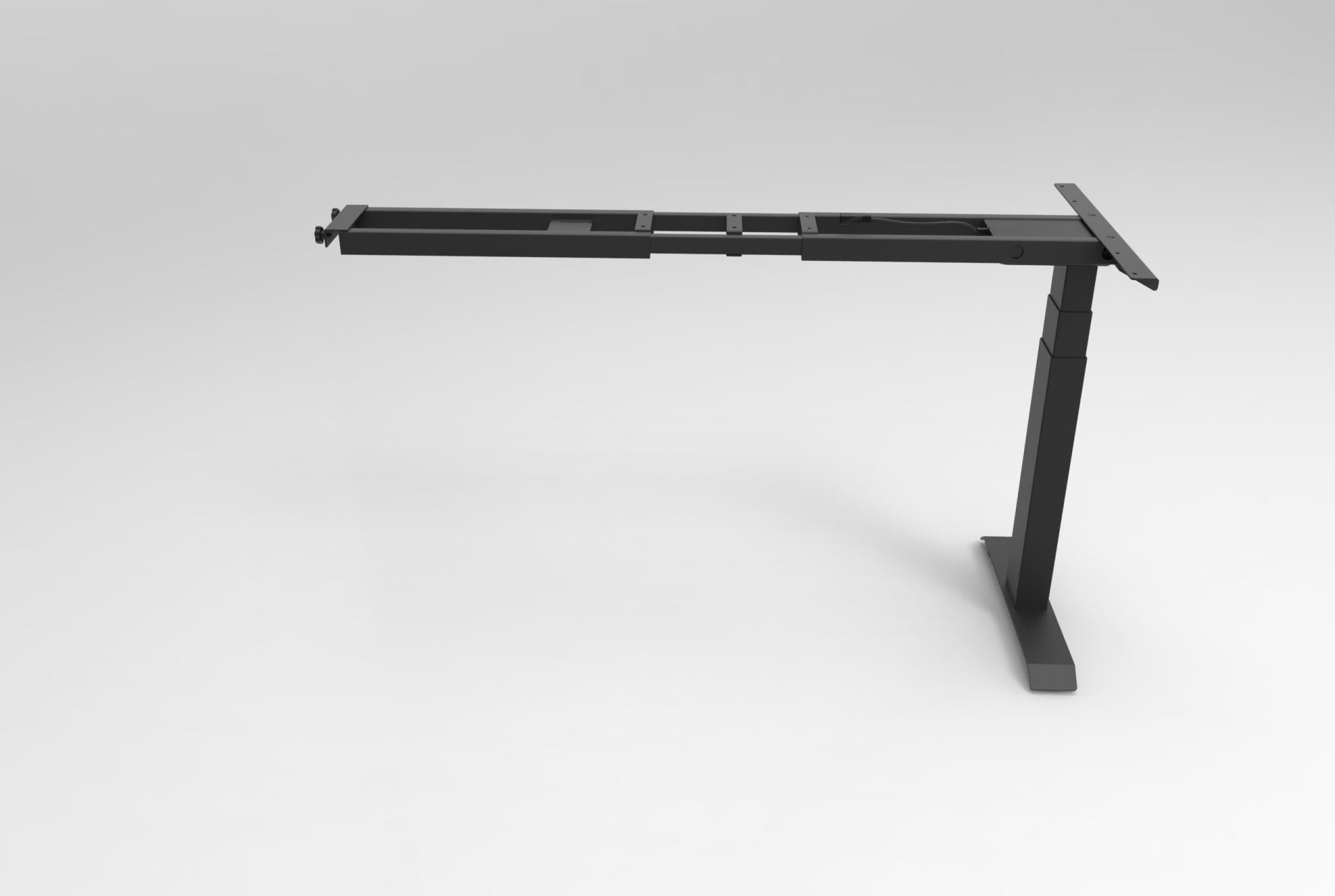

Rapidline Boost Plus electric height adjustable return frame in black satin powdercoat for electric height adjustable workstations. Supplied product image for model B2-RF BL.
Rapidline Height Adjustable Return Frame Only Black for Boost Plus Workstation
Rapidline Boost Plus electric height adjustable return frame in black satin powdercoat for electric height adjustable workstations. Supplied product image for model B2-RF BL.
Rapidline Height Adjustable Return Frame Only Black for Boost Plus Workstation
Rapidline

Rapidline Height Adjustable Return Frame Only Black for Boost Plus Workstation

Regular price
$568.61
Sale price
$568.61
Regular price
RRP $627.55
Or 4 payments of $142.15 with

SKU: FXB2-RF BL

MPN: B2-RF BL

The Leg That Turns a Desk Into a Corner

This is the electric height adjustable return frame from the Boost Plus range, which drives the second leg of a corner workstation in step with the main frame, finished in black satin powdercoat.

A corner top needs support under both legs, and both have to rise together or the surface racks. This is the return frame that ships under the complete Boost Plus corner workstations. It telescopes from 1040mm to 2150mm and suits rectangular return tops and radial one piece corner tops with an overall return edge of 1450mm to 2150mm.

It carries the same controller as the main frame, with three pre-set positions, a keypad safety lock, and anti-collision and anti-tilt. Rapidline publishes a lifting capacity of 160kg for the return frame, above the 120kg of the single sided frame, on a 500mm foot.

It belongs to the Boost Plus range, which is listed complete as the single sided workstation and as the back to back version. The rest of the range, including the corner desks and the other parts, sits in office furniture.

  • Rapidline Boost Plus return frame in black satin powdercoat
  • Telescopic frame 1040mm W - 2150mm W
  • Suits rectangular return table tops and radial 1 piece corner workstation tops with overall return edge size of 1450mm - 2150mm
  • Digital control panel with 3 pre-set positions, LED display panel, keypad safety lock and reminder alarm setting
  • Anti-collision and anti-tilt technology
  • Column size: 90mm x 60mm
  • Ten year Rapidline warranty
  • Building a corner workstation on customer supplied tops
  • Adding a return to an existing Boost Plus single sided frame
  • Radial one piece corner tops needing a driven second leg
  • Refits that keep an existing corner worktop

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Rapidline

Range: Boost Plus

Model: B2-RF BL

Mega Code: FXB2-RF BL

EAN: 9347414035909

Type: Return frame, black satin powdercoat

Size: 1040mm W x 500mm D x 595mm H

Column Size: 90mm x 60mm

Height Range: 595mm-1245mm

Lifting Capacity: 160kg

Max Speed: 38mm per second

Product Weight: 18.3kg

Carton Dimensions: 210mm W x 1050mm D x 260mm H

Warranty: 10 years

Unit: Each

FAQs

It is made for the Rapidline Boost Plus range and is the same part that ships with the complete workstations. If you are matching an existing installation, check the model code against the desk it is going on before ordering.
This listing is the item as described. What is in the carton is set out in the specifications above, so you can check the count before ordering rather than after it arrives.
Rapidline warrants this part for 10 years. Note that this is not always the same term as the complete desks, so check it against the rest of your order if the warranty period matters to a specification.
Yes. It is a separate line rather than an option on the desk listing, so add it alongside the workstations. If you are unsure how many you need for a run, tell us the desk layout and we will work it out.
