Panaro

Panaro MAX505TC Waterproof Tool Case Black

$558.69
$558.69
RRP $604.42
Or 4 payments of $139.67 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX505TC

Tool Organiser In A Watertight Shell

The Panaro MAX505TC is the black MAX505 fitted with Panaro's tool storage system, fabric panels and a lift-out organiser that hold hand tools in loops and pockets instead of loose in a box.

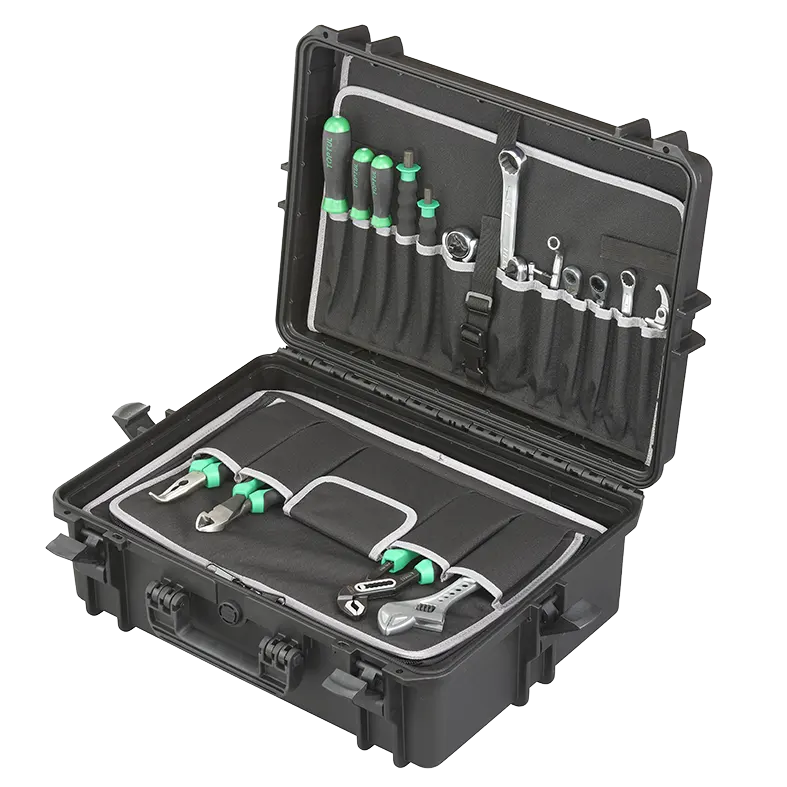

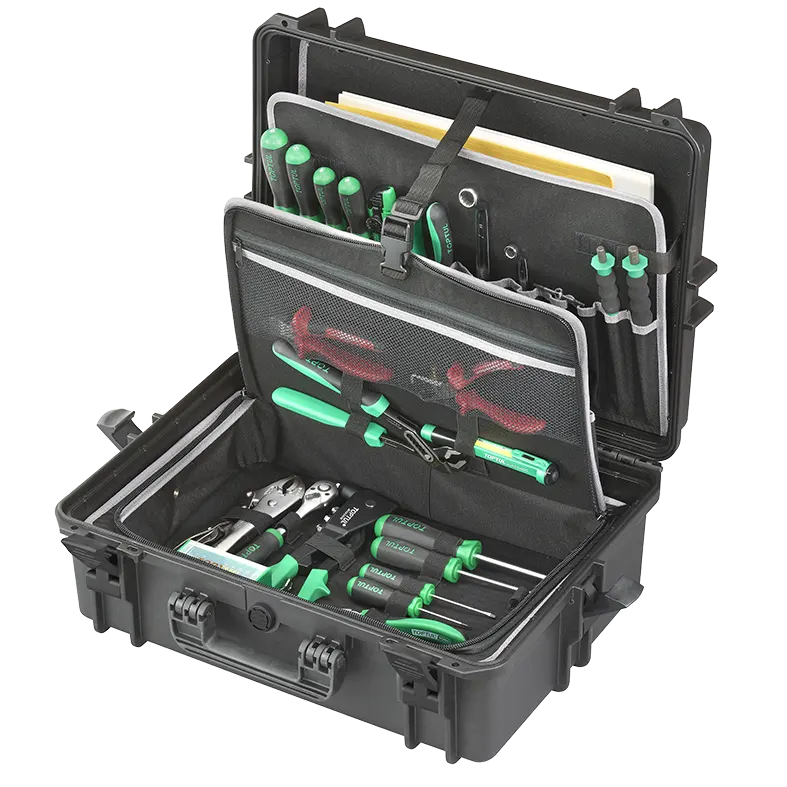

Panaro's photos show the lid lined with a tool panel of elastic slots, loops and a buckle strap, a second hinged panel in front of it, and a zipped fabric organiser with a carry handle that lifts out of the base. The textile parts are polyester tape and thread. Tools are not included, as Panaro's datasheet notes; the ones in the photos are there to show the layout.

Underneath is the standard MAX505: 500 x 350 x 194 mm inside, 555 x 428 x 211 mm outside, an O-ring seal, nylon double throw latches and an automatic pressure release valve. Fitted out, Panaro give 6.90 kg. Panaro's TC page names IP67, NATO STANAG 4280 alongside the UK DEF STAN 81-41, MIL-STD-810H and ATA 300 air transport, and each report can be downloaded here. Made in Italy.

For a wheeled version see the MAX505TCTR in our Panaro range, and browse other protective cases.

Often ordered together

  • Panaro tool storage system fitted
  • Lid tool panel with elastic slots and loops
  • Lift-out zipped organiser with handle
  • Tools not included, per Panaro
  • Interior 500 x 350 x 194 mm; 6.90 kg
  • IP67, STANAG 4280, MIL-STD-810H, ATA 300 per Panaro
  • Electricians and instrument technicians
  • IT and network field engineers
  • Aircraft and marine maintenance kits
  • Calibration and service visits
  • Trade apprentices building a first kit

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro MAX Cases, made in Italy per Panaro

MPN: MAX505TC

Mega Code: PMMAX505TC

Colour: Black

Configuration: TC, tool storage system (tools not included)

External Dimensions: 555 x 428 x 211 mm

Internal Dimensions: 500 x 350 x 194 mm

Lid + Base Depth: 58 + 136 mm

Capacity: 33.95 L

Weight: 6.90 kg, per Panaro

Materials: Polypropylene shell, nylon latches, polymer O-ring, polyester tape and thread

Test Standards Listed by Panaro: IP67, STANAG 4280 / DEF STAN 81-41, MIL-STD-810H, ATA 300 Cat. 1

Pack Size: 1 case, sold each

EAN: 8011236505285

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

No. Panaro's MAX505TC datasheet states that tools are not included. The tools in the photos show how the panels are used.
Panaro's photos show a strap fitted, yet Panaro sell their padded shoulder strap as an accessory and do not name it in the TC contents. Assume it is not included unless we confirm otherwise.
Panaro list polyester tape and polyester thread for the textile parts, in the polypropylene MAX505 shell.
Panaro name IP67, STANAG 4280 with DEF STAN 81-41, the MIL-STD-810H method tests and ATA 300. The TC datasheet, MAX505 drawing and the reports are attached on this page.
The TC uses fabric tool panels and a lift-out organiser. The PU swaps the fabric for a hinged ABS panel, elastic bands and a lid pouch for papers.
