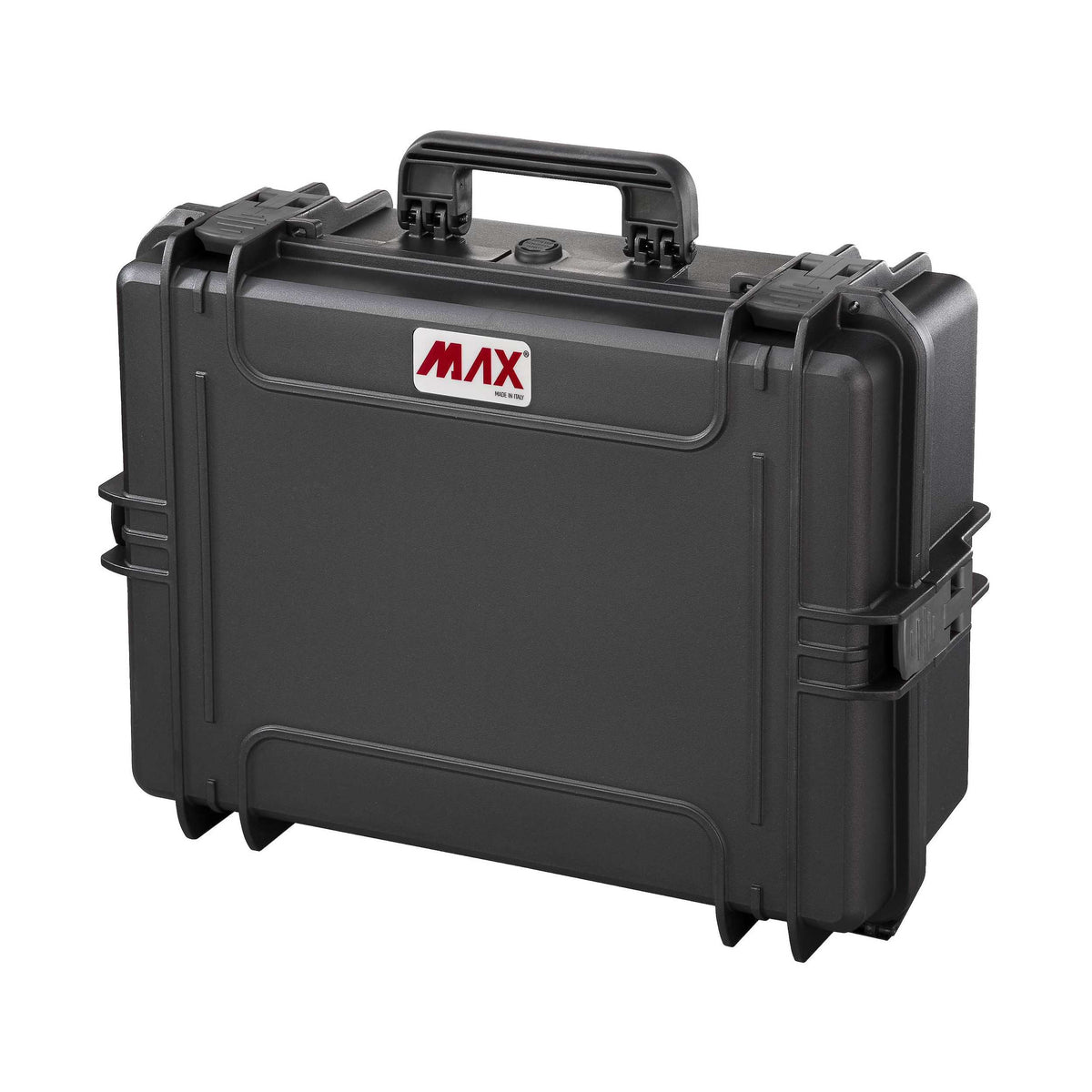

Closed black Panaro MAX505 case from a three quarter angle with handle, latches and red MAX logo
Front view of the closed black MAX505 shell, label recess on the lid and carry handle

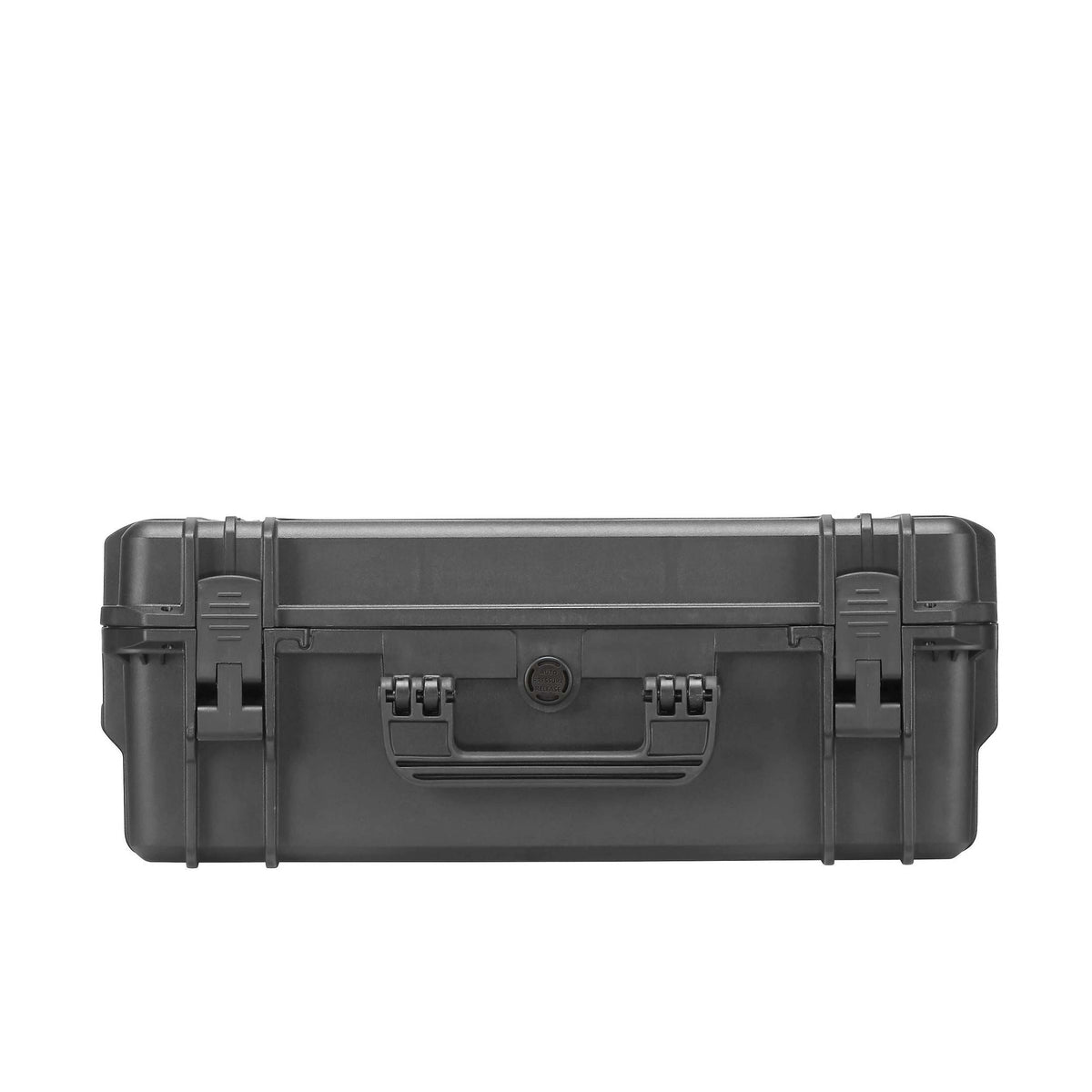

Black MAX505 case seen along the latch edge with both double throw latches and the pressure valve
Black Panaro MAX505PU open, swing-out panel holding red screwdrivers, a knife and hex keys, pliers and strippers on the base board, papers in the lid pouch
Closed black Panaro MAX505 case from a three quarter angle with handle, latches and red MAX logo
Front view of the closed black MAX505 shell, label recess on the lid and carry handle
Black MAX505 case seen along the latch edge with both double throw latches and the pressure valve
Black Panaro MAX505PU open, swing-out panel holding red screwdrivers, a knife and hex keys, pliers and strippers on the base board, papers in the lid pouch
Closed black Panaro MAX505 case from a three quarter angle with handle, latches and red MAX logo
Front view of the closed black MAX505 shell, label recess on the lid and carry handle
Black MAX505 case seen along the latch edge with both double throw latches and the pressure valve
Panaro

Panaro MAX505PU Waterproof Tool Case Black

$720.39
$720.39
RRP $778.62
Or 4 payments of $180.10 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX505PU

Rigid Tool Panel And Document Pouch

The Panaro MAX505PU is the black MAX505 in Panaro's Pouch and Tool Panel configuration: a hinged rigid panel and a base board with elastic bands for tools, plus a pouch in the lid for drawings and job sheets.

Panaro list the panel as ABS, the bands as elastic rubber, and the pouch and webbing as polyester. Their photo shows screwdrivers, a knife and hex keys strapped to the swing-out panel, pliers and strippers on the base board, and papers in the lid pouch. Panaro do not list tools in the PU contents, so treat the pictured tools as a guide to the layout.

Around it is the MAX505 shell, measuring 555 x 428 x 211 mm outside with a 500 x 350 x 194 mm interior, and the PU weighs 6.06 kg as configured. The PU page names IP67 first, then STANAG 4280 together with DEF STAN 81-41, MIL-STD-810 testing and ATA 300; Panaro attach the drawing, the IP67 certificate and the STANAG and ATA 300 reports, which you can download here. Made in Italy.

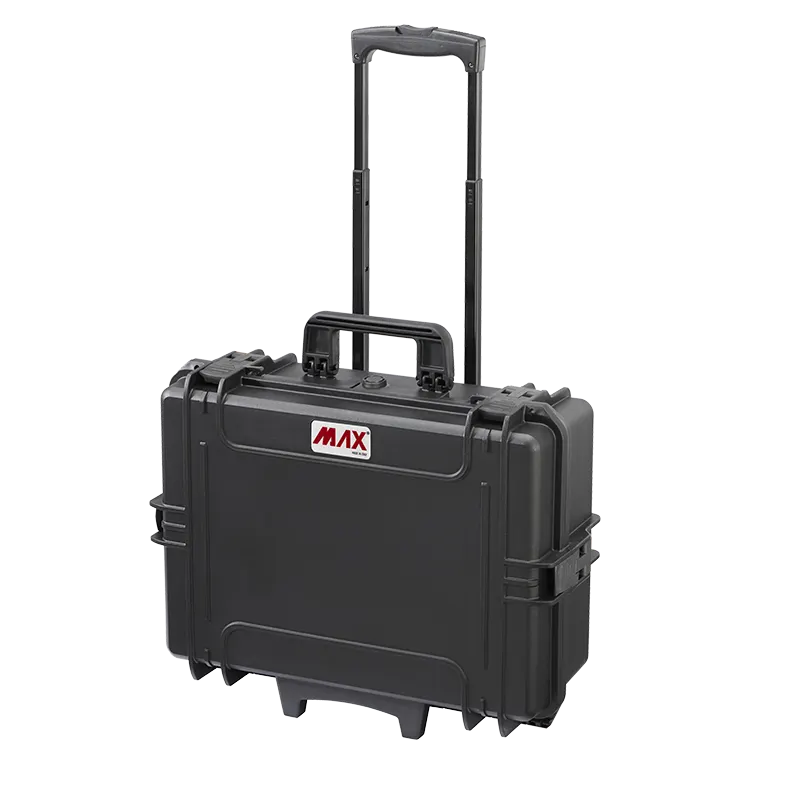

The wheeled version is the MAX505PUTR. See both in our Panaro collection and more protective cases.

Often ordered together

  • Hinged ABS tool panel with elastic bands
  • Base tool board with elastic loops
  • Polyester document pouch in the lid
  • Inside 500 x 350 x 194 mm; 6.06 kg
  • O-ring seal and automatic valve
  • Panaro list IP67, STANAG 4280, ATA 300
  • Electrical and instrumentation trades
  • Telecommunications installers
  • Plant maintenance fitters
  • Service engineers carrying job paperwork
  • Workshop tool kits that leave the bench

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro MAX Cases, made in Italy per Panaro

MPN: MAX505PU

Mega Code: PMMAX505PU

Colour: Black

Configuration: PU, pouch and tool panel

External Dimensions: 555 x 428 x 211 mm

Internal Dimensions: 500 x 350 x 194 mm

Lid + Base Depth: 58 + 136 mm

Capacity: 33.95 L

Weight: 6.06 kg, per Panaro

Materials: Polypropylene shell, nylon latches, polymer O-ring, ABS panel, elastic bands, polyester tape and thread, polyurethane foam

Test Standards Listed by Panaro: IP67, STANAG 4280 / DEF STAN 81-41, MIL-STD-810, ATA 300 (named on the PU page)

Pack Size: 1 case, sold each

EAN: 8011236505407

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

Panaro list the case, ABS panel, elastic bands, pouch and fittings as the PU materials, not tools. Treat the pictured tools as a guide and ask us before ordering if you need a filled kit.
ABS, per Panaro, with elastic rubber bands and polyester tape to hold the tools.
Panaro do not publish a PU datasheet. The MAX505 2D drawing, IP67 certificate and the STANAG and ATA 300 reports are attached here.
The PU uses a rigid ABS panel, elastic bands and a lid pouch. The TC uses soft polyester panels and a lift-out organiser.
