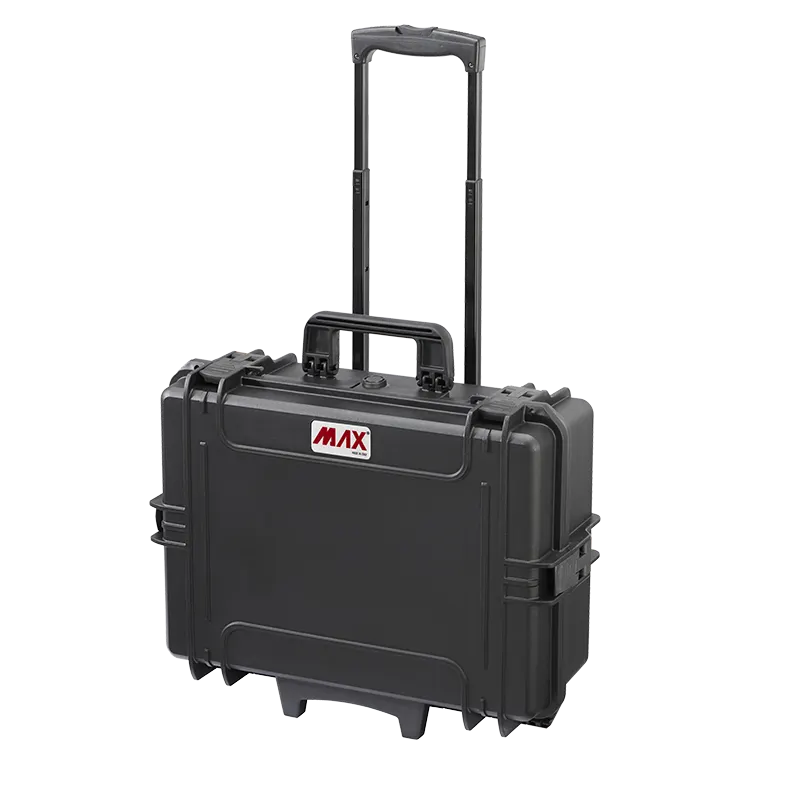

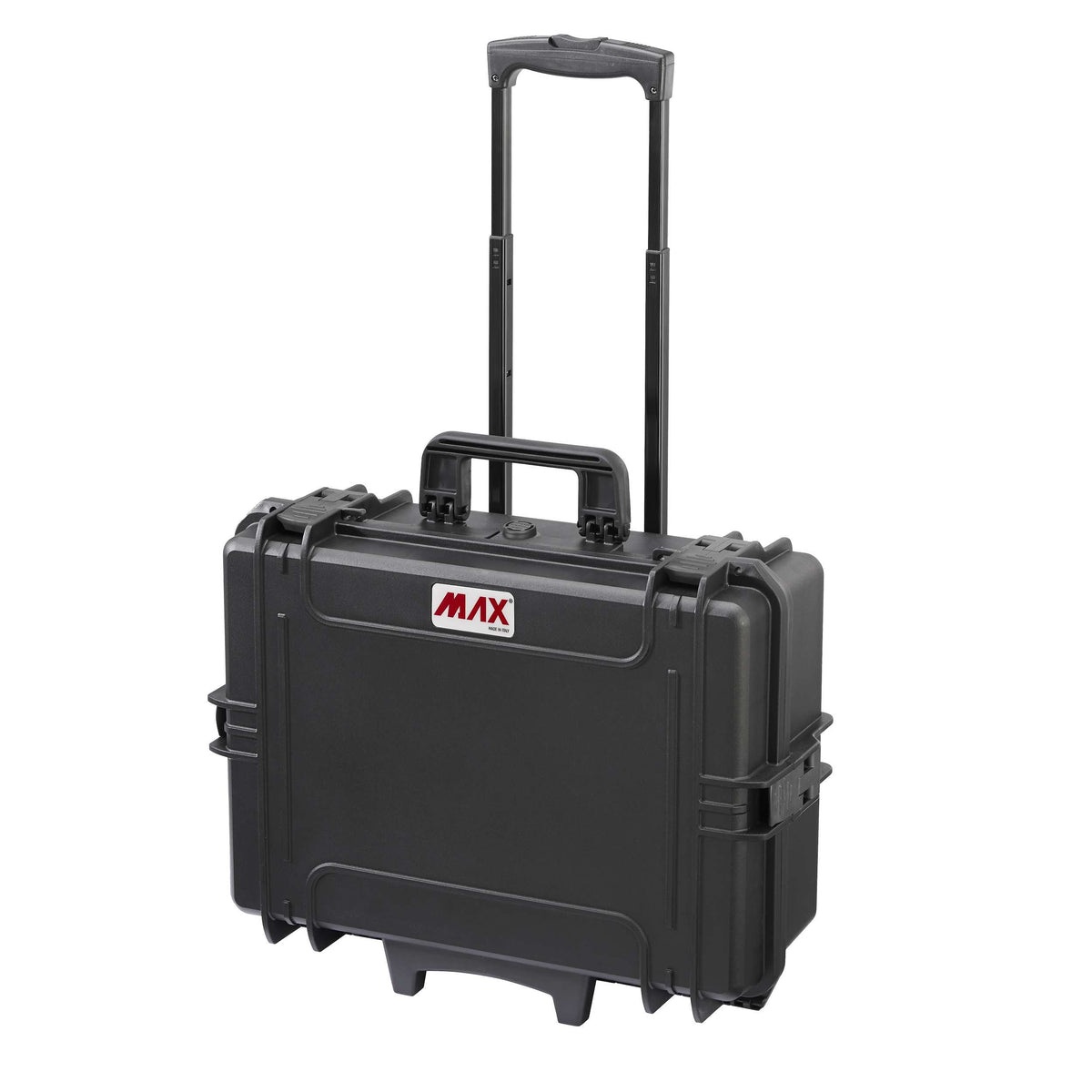

Black Panaro MAX505 trolley case standing upright with the telescopic handle extended and wheels at the base

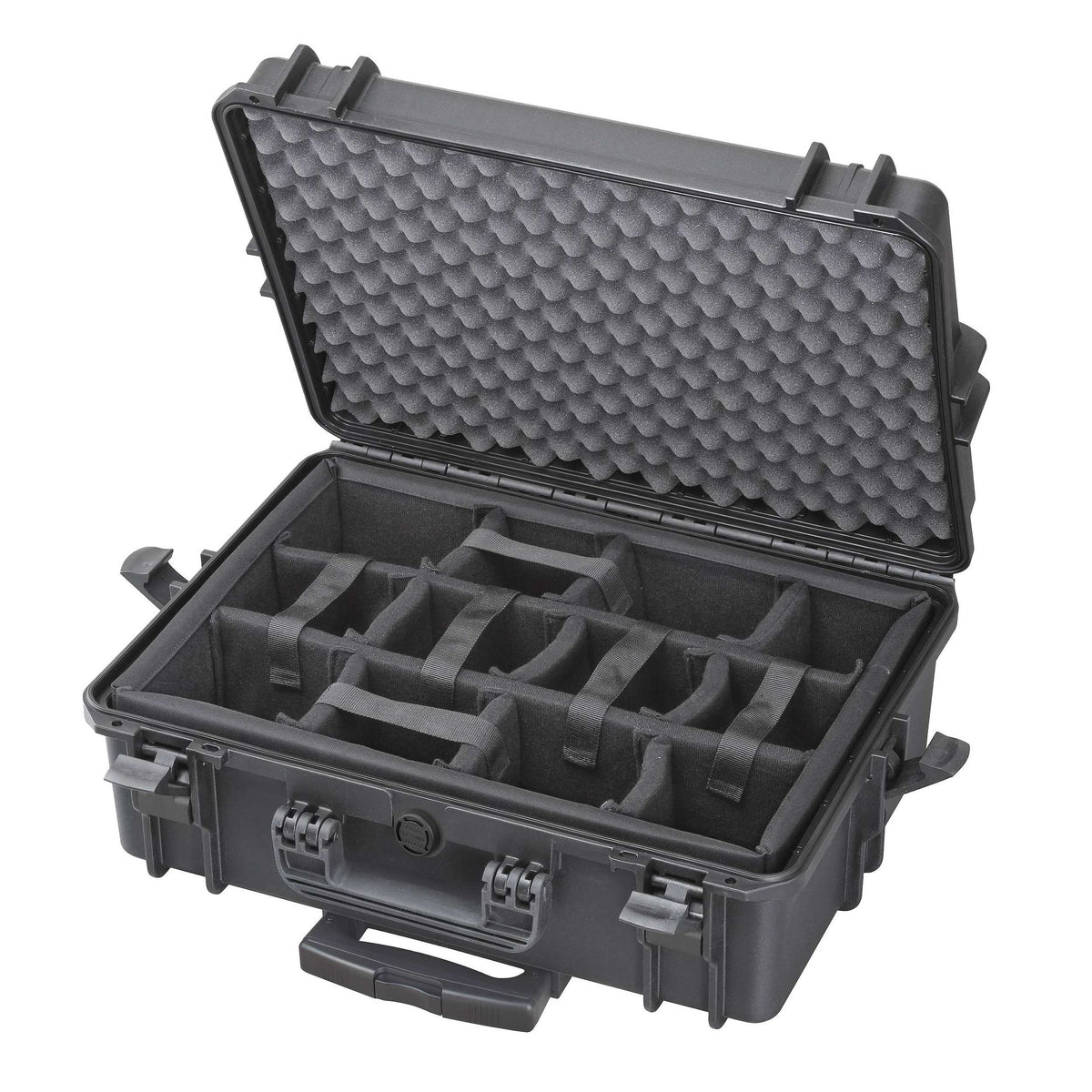

Panaro MAX505CAMTR black open, padded dividers in the base, convoluted lid foam and the trolley handle at the back

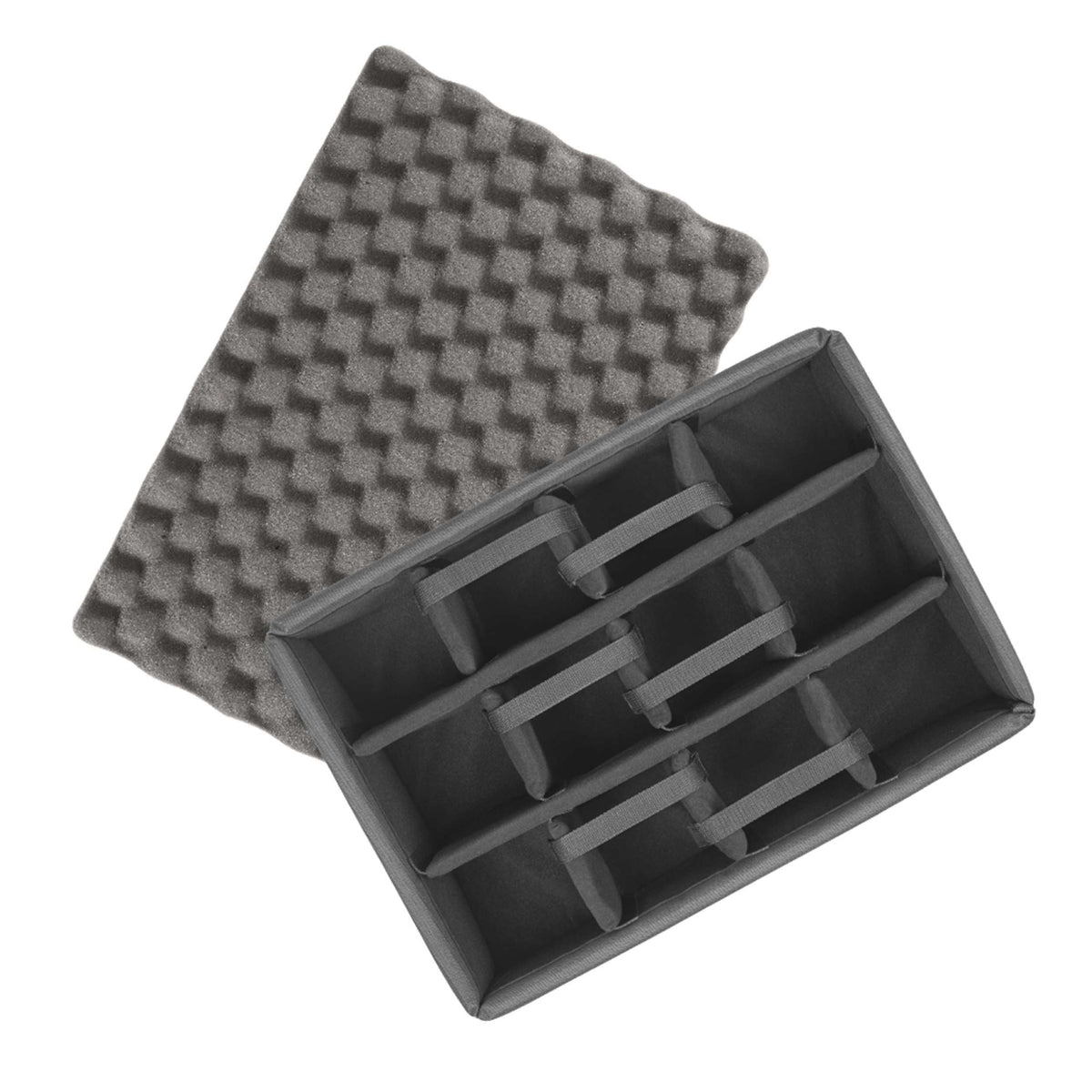

The CAM set for the Panaro MAX505: padded divider insert next to the convoluted lid foam

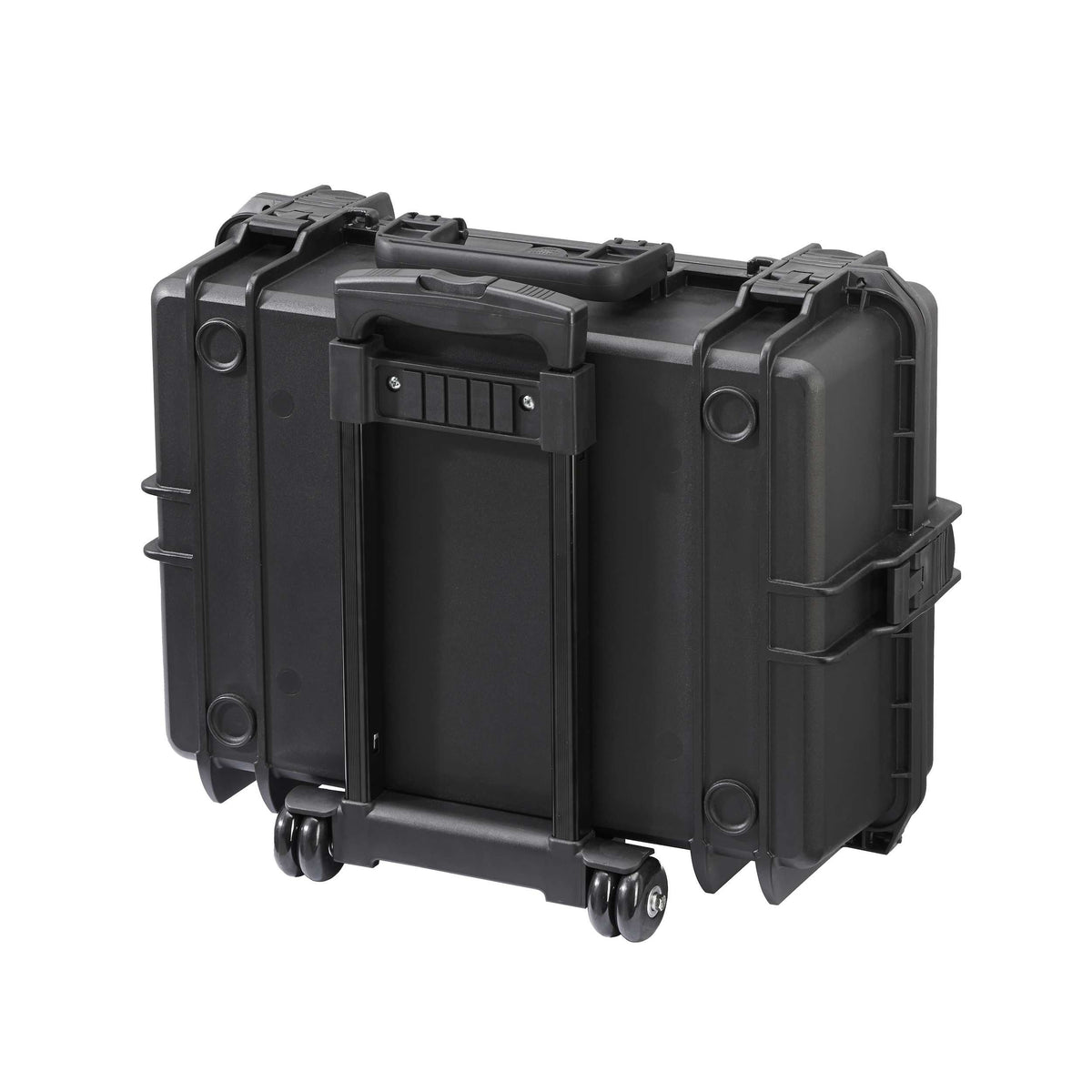

Back of the black Panaro MAX505 trolley case: retracted handle in its channel and two wheels

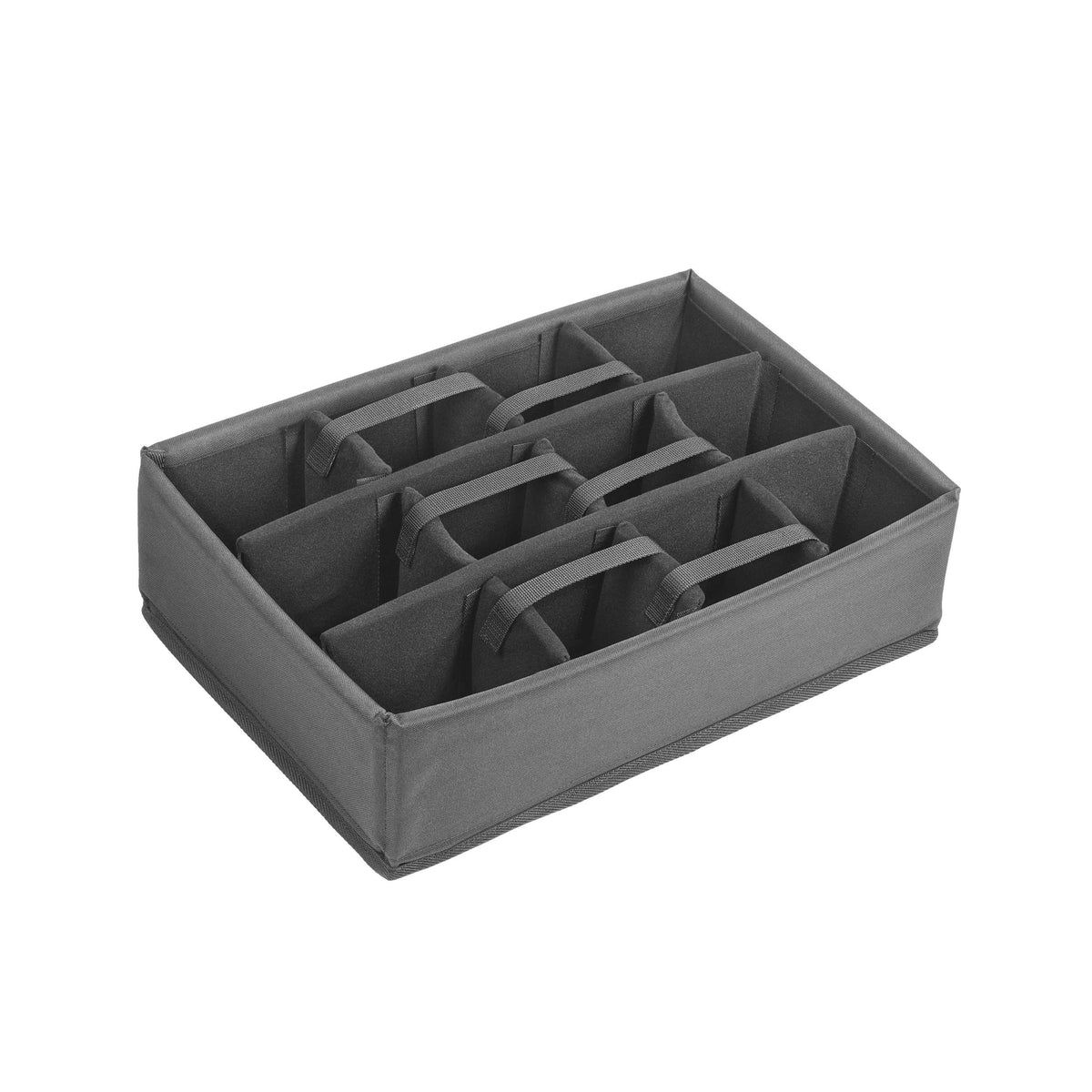

Panaro MAX505 padded divider insert alone, showing the movable compartment walls

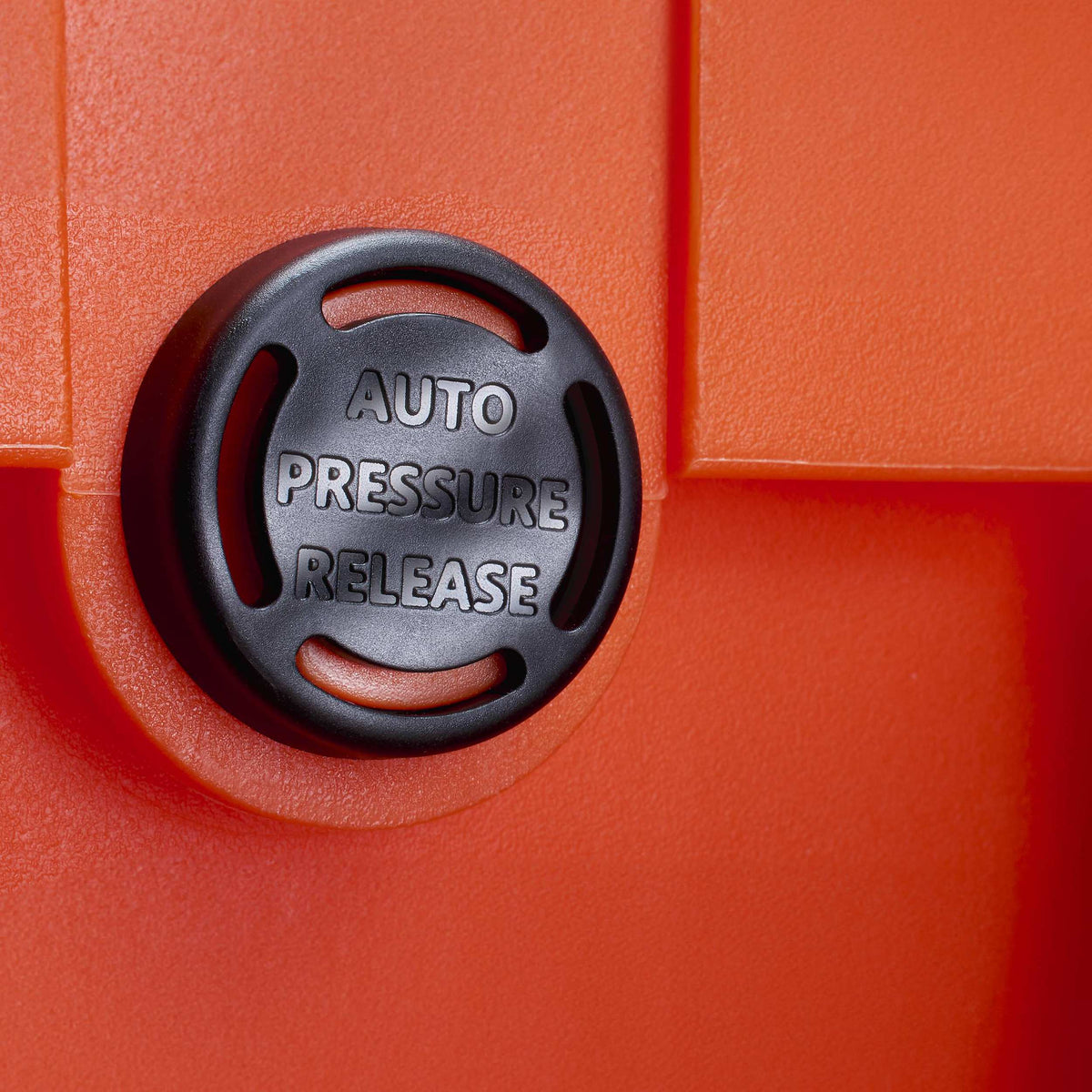

Panaro MAX pressure release valve close-up, photographed on an orange case
Black Panaro MAX505 trolley case standing upright with the telescopic handle extended and wheels at the base
Panaro MAX505CAMTR black open, padded dividers in the base, convoluted lid foam and the trolley handle at the back
The CAM set for the Panaro MAX505: padded divider insert next to the convoluted lid foam
Back of the black Panaro MAX505 trolley case: retracted handle in its channel and two wheels
Panaro MAX505 padded divider insert alone, showing the movable compartment walls
Panaro MAX pressure release valve close-up, photographed on an orange case
Black Panaro MAX505 trolley case standing upright with the telescopic handle extended and wheels at the base
Panaro MAX505CAMTR black open, padded dividers in the base, convoluted lid foam and the trolley handle at the back
The CAM set for the Panaro MAX505: padded divider insert next to the convoluted lid foam
Back of the black Panaro MAX505 trolley case: retracted handle in its channel and two wheels
Panaro MAX505 padded divider insert alone, showing the movable compartment walls
Panaro MAX pressure release valve close-up, photographed on an orange case
Panaro

Panaro MAX505CAMTR Waterproof Case with Padded Dividers and Trolley Black

$627.99
$627.99
RRP $677.79
Or 4 payments of $157.00 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX505CAMTR

Padded Dividers You Can Wheel Through An Airport

The MAX505CAMTR puts Panaro's CAM divider interior inside a black MAX505 fitted with wheels and an extendable handle, so a full camera or instrument kit rolls instead of being carried.

Once a padded case is loaded with bodies, lenses, a gimbal or test equipment it gets heavy fast, and the trolley takes that weight off your arm through terminals, car parks and long corridors. The CAM interior is Panaro's padded divider set with movable compartments in the base, topped by a convoluted foam pad in the lid.

The black CAMTR offers 33.95 litres of room, 500 x 350 x 194 mm, and Panaro list 6.10 kg as supplied. Its trolley is a metal and plastic assembly whose wheels run on stainless steel pins. From the plain MAX505 it inherits the gasket lid, auto vent valve, latches and padlock holes. Panaro's MAX505CAMTR page names a single certificate, MIL-STD-810H. Panaro make MAX cases in Italy.

More wheeled options are in trolley cases and accessories; see also photography and AV and Panaro.

Often ordered together

  • Wheels plus extendable trolley handle
  • CAM padded divider set in the base
  • Convoluted foam in the lid
  • Black MAX505 shell, 33.95 litres
  • Weight 6.10 kg as supplied
  • MIL-STD-810H certificate listed by Panaro
  • Travelling photographers and videographers
  • Broadcast crews moving through venues
  • Instrument kits for site visits
  • Drone teams with heavy battery sets

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro

Range: MAX Cases

MPN: MAX505CAMTR

Mega Code: PMMAX505CAMTR

Colour: Black

Configuration: CAM padded dividers with lid foam, plus trolley

Internal Size: 500 x 350 x 194 mm

Lid / Base Depth: 58 + 136 mm

External Size: 555 x 428 x 211 mm on Panaro's page and datasheet for this code; Panaro's MAX505TR page gives 555 x 445 x 258 mm with the trolley

Capacity: 33.95 L

Weight: 6.10 kg

Trolley: Wheels and extendable handle, metal and plastic, stainless steel wheel pins

Certificates Listed By Panaro For This Code: MIL-STD-810H test certificate

Pack Size: 1

Unit: Each

EAN: 8011236505148

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

Panaro's datasheet for this code shows the IP67 mark, but the product page lists only the MIL-STD-810H certificate, and the IP67 and ATA 300 certificates they publish name the MAX505 without trolley. We only claim what is listed for this code.
The CAMTR sheet gives 555 x 428 x 211 mm. With its trolley counted, Panaro's MAX505TR page gives 555 x 445 x 258 mm, so plan car boots and lockers around that.
Panaro's padded divider set, whose walls you can move, plus an egg crate foam sheet in the black lid.
Four: Panaro's MAX505CAMTR datasheet, a 2D drawing of the MAX505 with trolley, the CAM configuration sheet and a MIL-STD-810H report.
