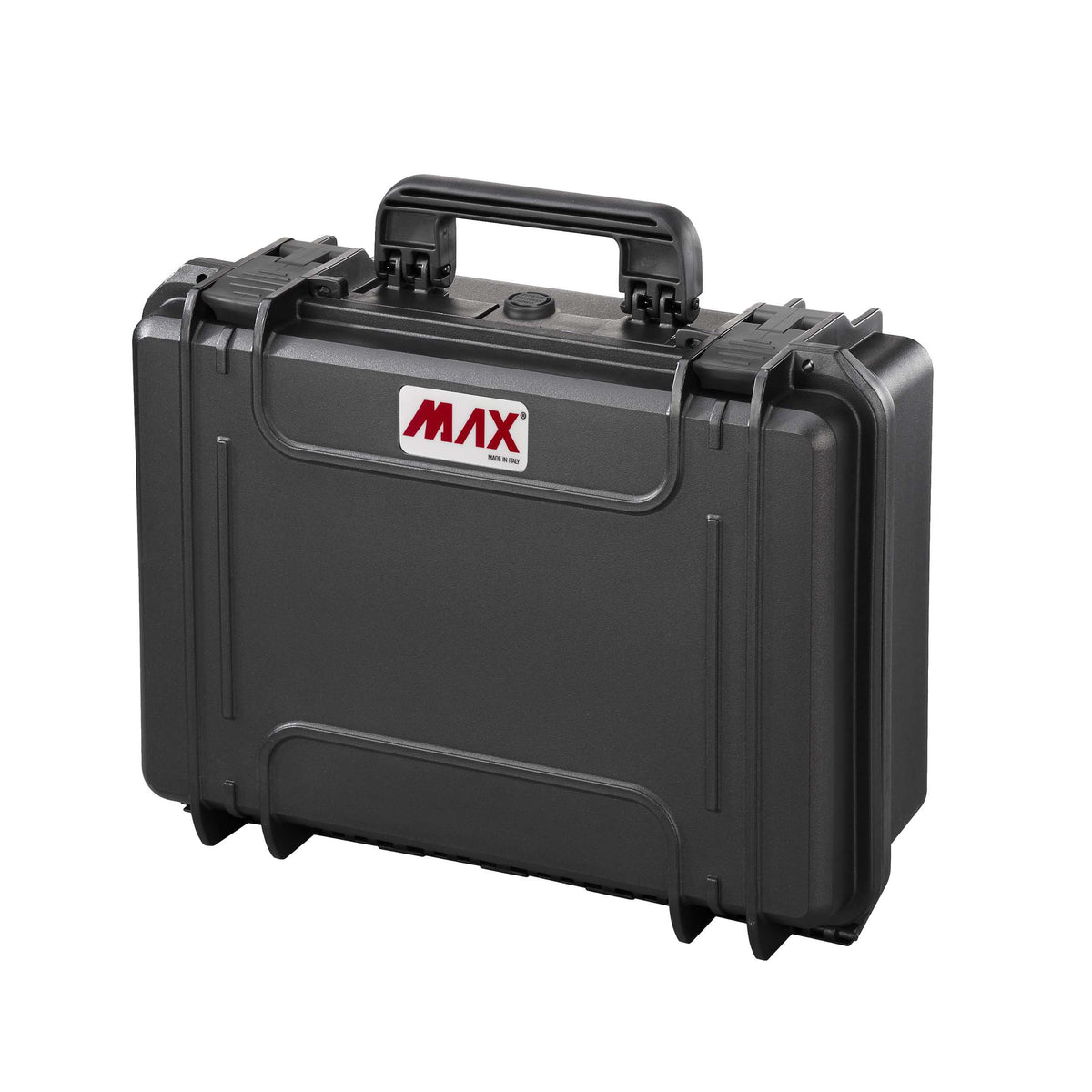

Black Panaro MAX430 waterproof case closed, three quarter view, the shell used for the MAX430TC tool case

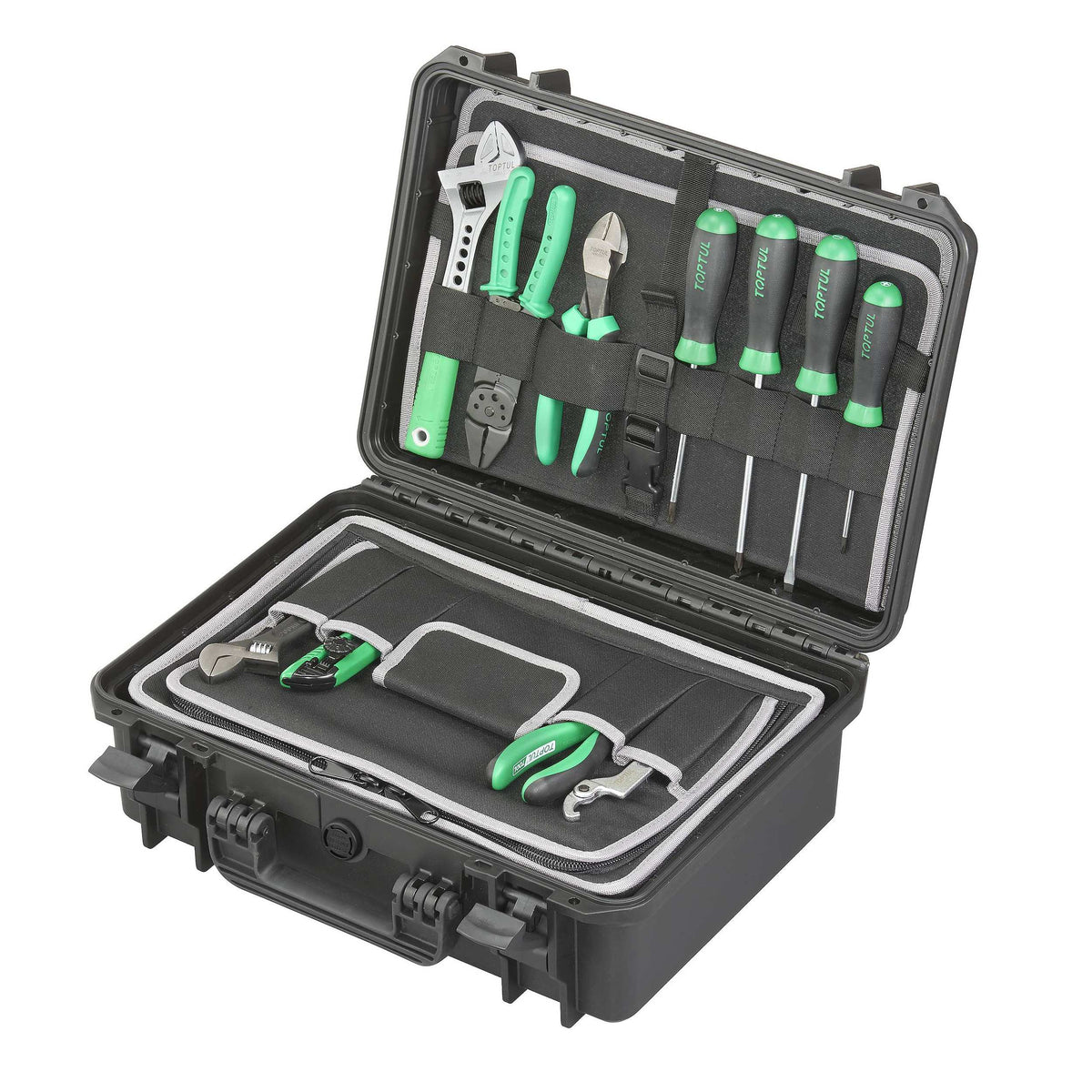

MAX430TC open with pliers and screwdrivers in the lid tool slots and more tools in the base insert

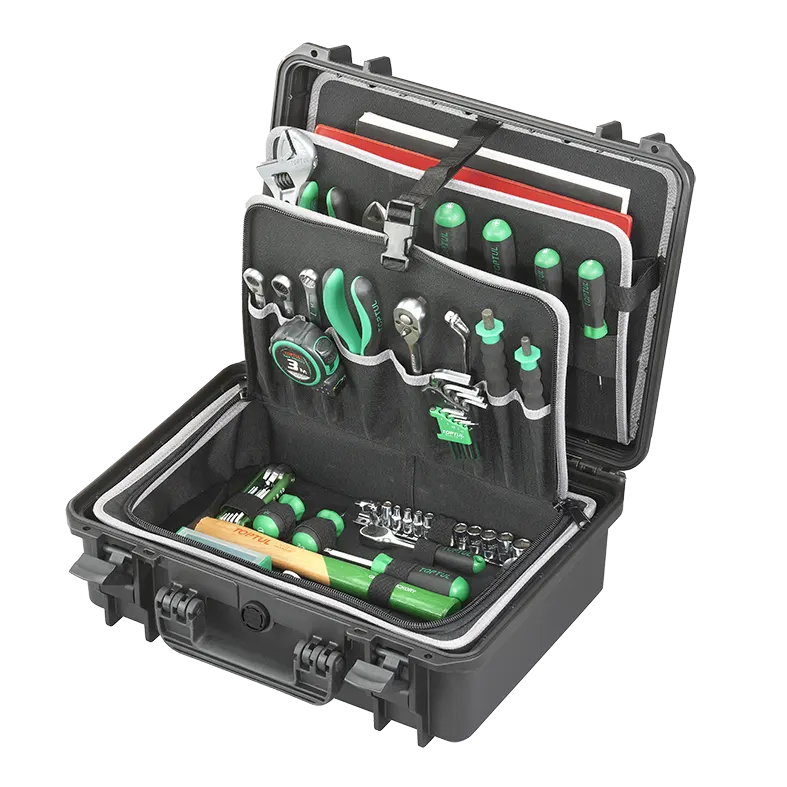

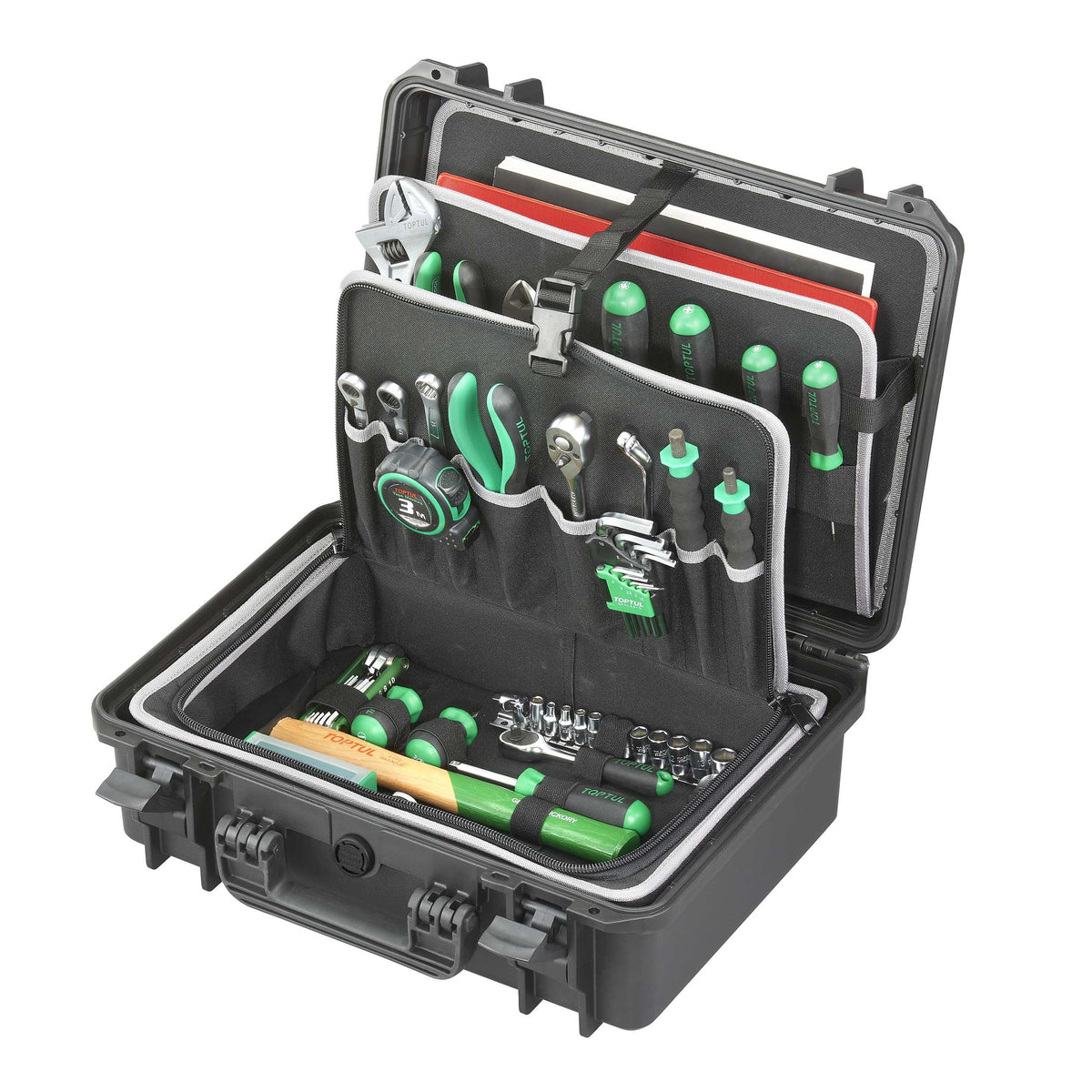

MAX430TC loaded with hand tools in the lid holders, documents in the lid pouch and a tool roll in the base

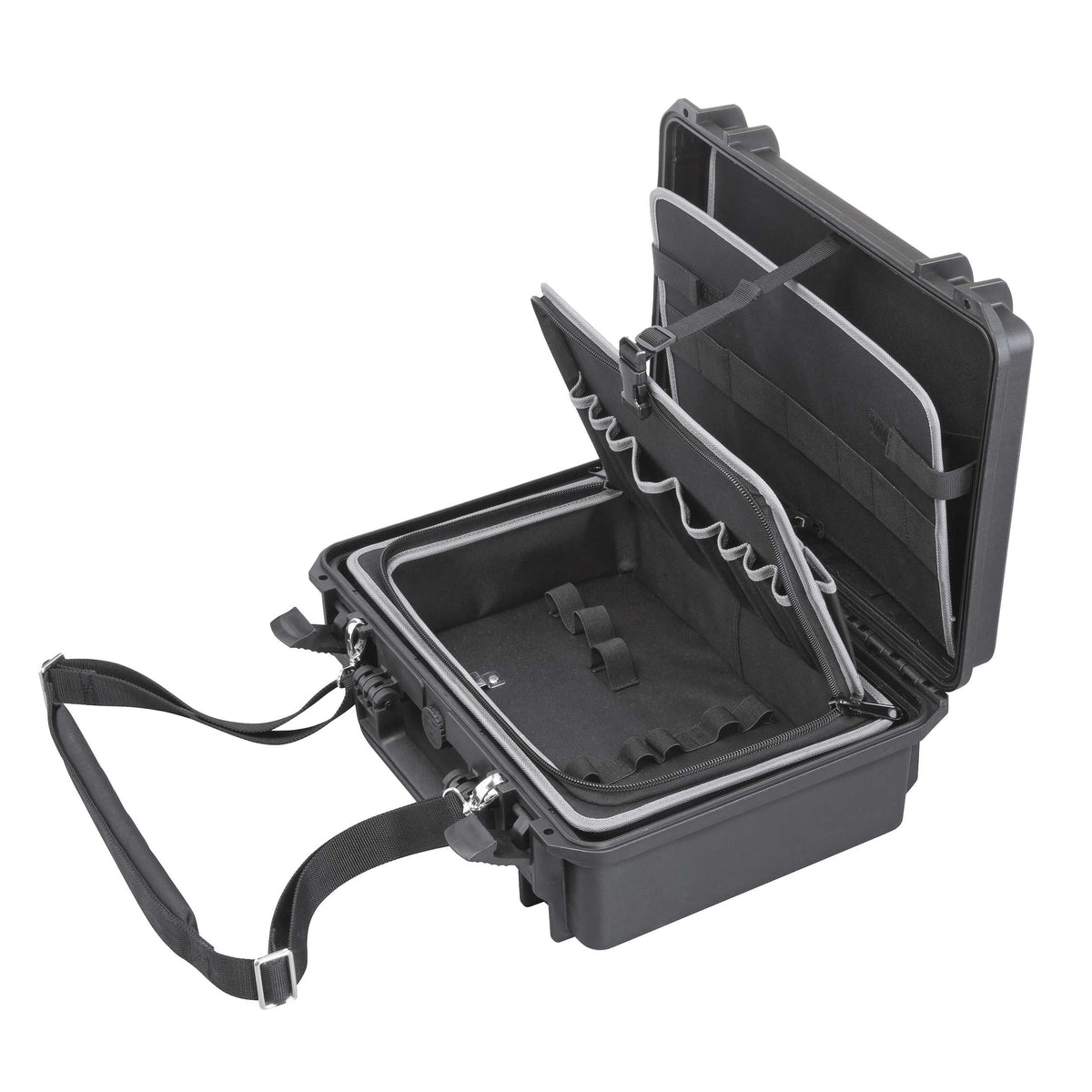

MAX430TC open and empty showing the hinged TC tool storage panels, photographed with a padded shoulder strap attached

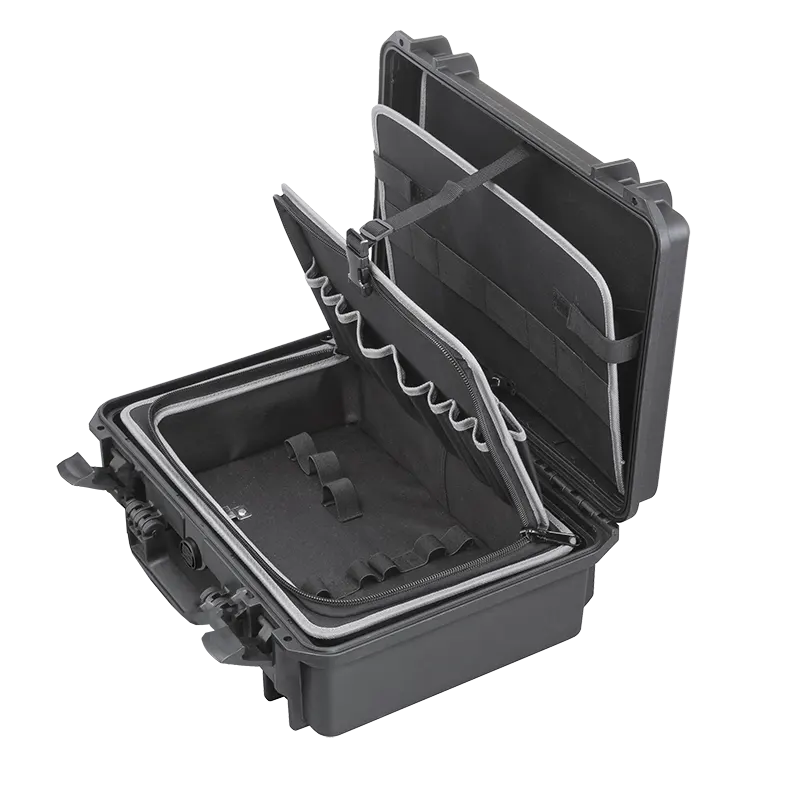

MAX430TC open with the empty TC tool storage panels raised to show the pockets on each side

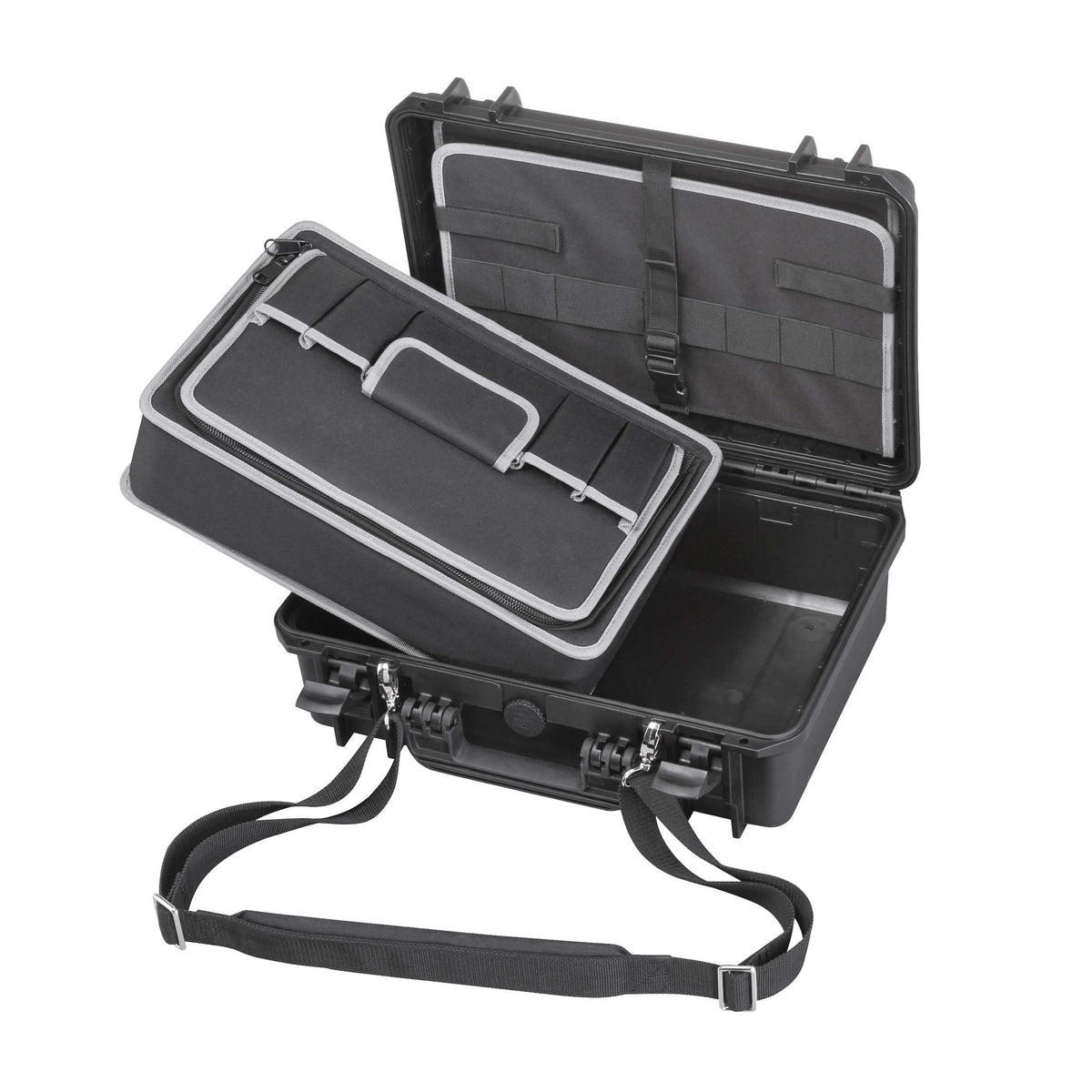

MAX430TC with the base insert lifted out on its handle and the lid pouch panel visible, shown with a shoulder strap

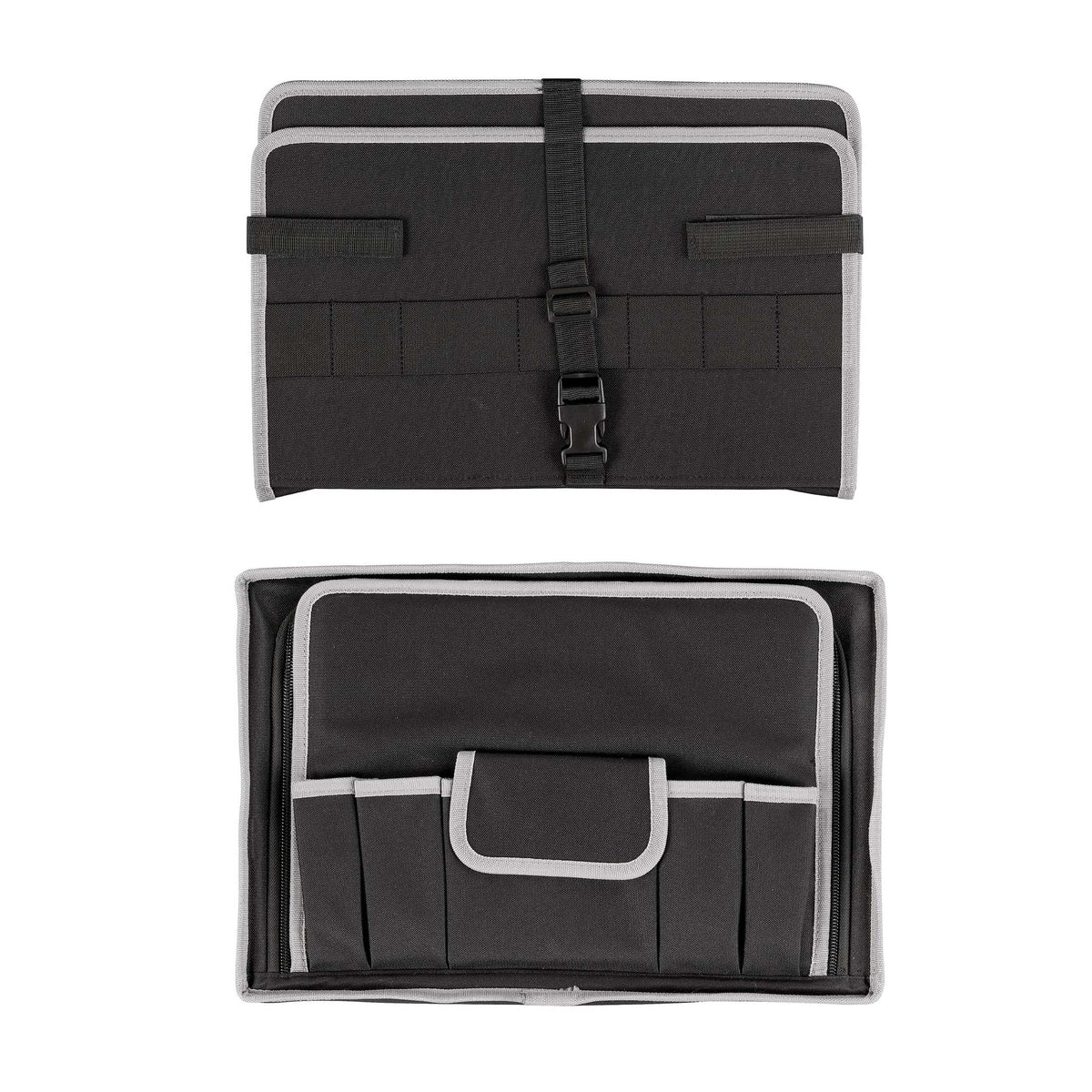

The TC tool storage insert out of the case: a folded fabric panel with buckle strap above the base tool holder
Black Panaro MAX430 waterproof case closed, three quarter view, the shell used for the MAX430TC tool case
MAX430TC open with pliers and screwdrivers in the lid tool slots and more tools in the base insert
MAX430TC loaded with hand tools in the lid holders, documents in the lid pouch and a tool roll in the base
MAX430TC open and empty showing the hinged TC tool storage panels, photographed with a padded shoulder strap attached
MAX430TC open with the empty TC tool storage panels raised to show the pockets on each side
MAX430TC with the base insert lifted out on its handle and the lid pouch panel visible, shown with a shoulder strap
The TC tool storage insert out of the case: a folded fabric panel with buckle strap above the base tool holder
Black Panaro MAX430 waterproof case closed, three quarter view, the shell used for the MAX430TC tool case
MAX430TC open with pliers and screwdrivers in the lid tool slots and more tools in the base insert
MAX430TC loaded with hand tools in the lid holders, documents in the lid pouch and a tool roll in the base
MAX430TC open and empty showing the hinged TC tool storage panels, photographed with a padded shoulder strap attached
MAX430TC open with the empty TC tool storage panels raised to show the pockets on each side
MAX430TC with the base insert lifted out on its handle and the lid pouch panel visible, shown with a shoulder strap
The TC tool storage insert out of the case: a folded fabric panel with buckle strap above the base tool holder
Panaro

Panaro MAX430TC Waterproof Tool Case Black

$394.46
$394.46
RRP $424.86
Or 4 payments of $98.62 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX430TC

MAX430TC Tool Case With Panaro's Storage System

Panaro's MAX430TC is the black MAX430 watertight case fitted with the TC Tool Storage System: tool slots in fabric holders and a document pouch in the lid, there to organise professional instruments.

Panaro describe the TC kit as a tool storage system to better organise your professional instruments, with different tool slots and a document pouch in the lid. It is made of polyester, plastic and rubber with metal fittings, and the kit alone weighs 1.9 kg; the complete case is 5.10 kg. The photos show the insert both empty and loaded with hand tools and paperwork.

Interior space is 426 x 290 x 159 mm in a 464 x 366 x 176 mm black polypropylene shell. According to Panaro the MAX430TC holds IP67 and ATA 300 Cat. 1 certification, passed testing to MIL-STD-810H, and Panaro's environmental report covers STANAG 4280 as well as DEF STAN 81-41. The case is made in Italy, and the TC datasheet and certificates can be downloaded here.

Related: every Panaro case, protective and carry cases and defence cases.

Often ordered together

  • TC Tool Storage System in a black MAX430
  • Tool slots plus a lid document pouch
  • Kit in polyester, plastic, rubber and metal
  • Complete case 5.10 kg
  • TC datasheet downloadable
  • Made in Italy
  • Field technicians and instrument fitters
  • Electrical service kits
  • Maintenance crews with set tool lists
  • Kits that travel with manuals or job sheets
  • Vehicle based service work

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro, MAX Cases range

MPN: MAX430TC

Mega Code: PMMAX430TC

Configuration: TC, Tool Storage System

Colour: Black

Internal Dimensions: 426 x 290 x 159 mm (lid 45 + base 114 mm)

External Dimensions: 464 x 366 x 176 mm

Capacity: 19.64 L

Weight: 5.10 kg (Panaro datasheet); TC kit alone 1.9 kg

Materials: Polypropylene shell, nylon latches, polymer O-ring

Certificates: IP67, STANAG 4280 / DEF STAN 81-41, MIL-STD-810H, ATA 300 Cat. 1 (per Panaro)

Made In: Italy (per Panaro)

Unit: Each

EAN: 8011236430259

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

Field technicians, electricians, instrument fitters and maintenance crews who carry a set kit of hand tools and want each one in its own slot.
Panaro's TC photos show a padded strap fitted. On their accessory list the strap is a separate item, so this listing covers the case and TC insert only.
No. The tools and documents in the photos are there to show the layout.
Download the TC datasheet from this page, together with the MAX430 drawing, the environmental report and Panaro's certificates for IP67, MIL-STD-810H and ATA 300.
