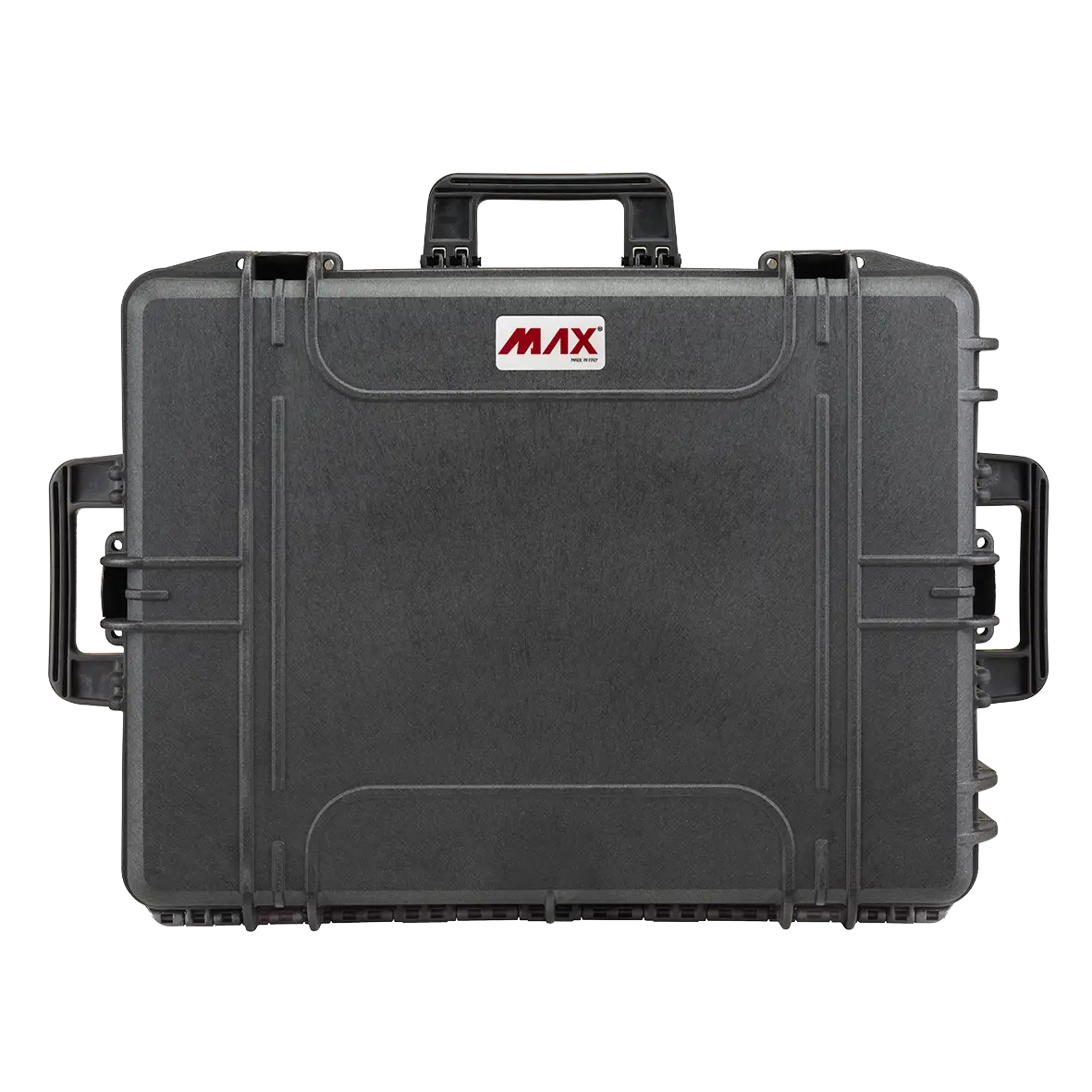

Closed Panaro MAX620H340 lid face on with carry handle and folding side handles
Closed Panaro MAX620H340 case at an angle showing the handle, latches and MAX logo
Panaro A-RACK6U-MAX620H340TR trolley case open with the 6U rack frame fitted inside
Panaro 6U A-RACK aluminium frame on its own, showing the slotted sides and rails
Overhead view of the open Panaro MAX620H340 with the 6U rack frame inside
Front of the closed Panaro MAX620H340 case showing the latches and lower edge
Panaro MAX620H340TR upright with the telescopic handle extended
Top view of the closed Panaro MAX620H340 lid with carry handle and MAX logo
Closed Panaro MAX620H340 lid face on with carry handle and folding side handles
Closed Panaro MAX620H340 case at an angle showing the handle, latches and MAX logo
Panaro

Panaro A-RACK 6U 19 Inch Rack Case in MAX620H340TR Waterproof Case with Trolley Black

$2,299.77
$2,299.77
RRP $2,463.03
Or 4 payments of $574.94 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMA-RACK6U-MAX620H340TR

6U of Shock Mounted Rack Space Inside a Watertight Case

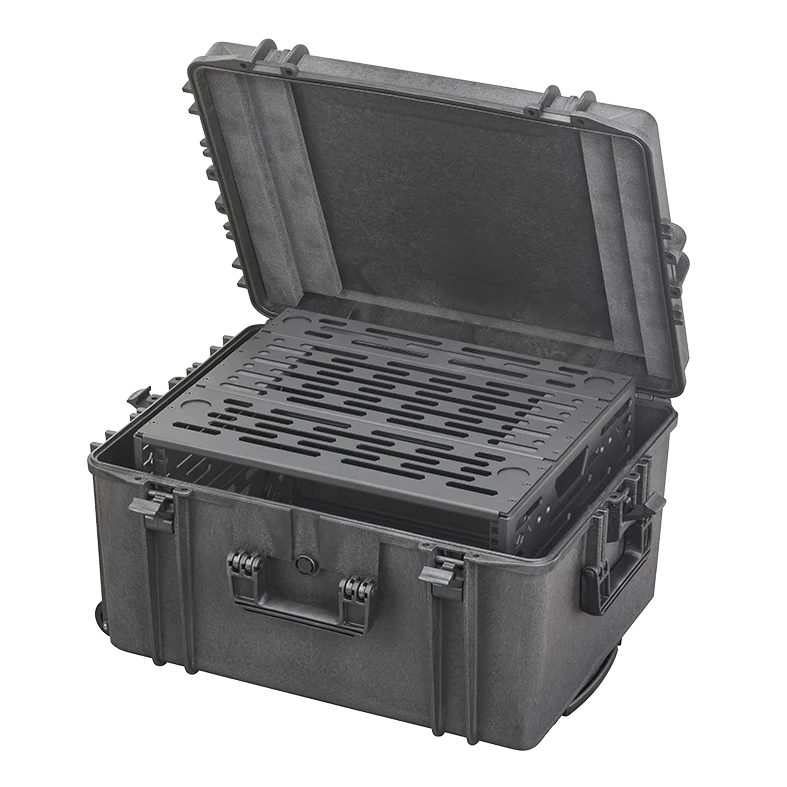

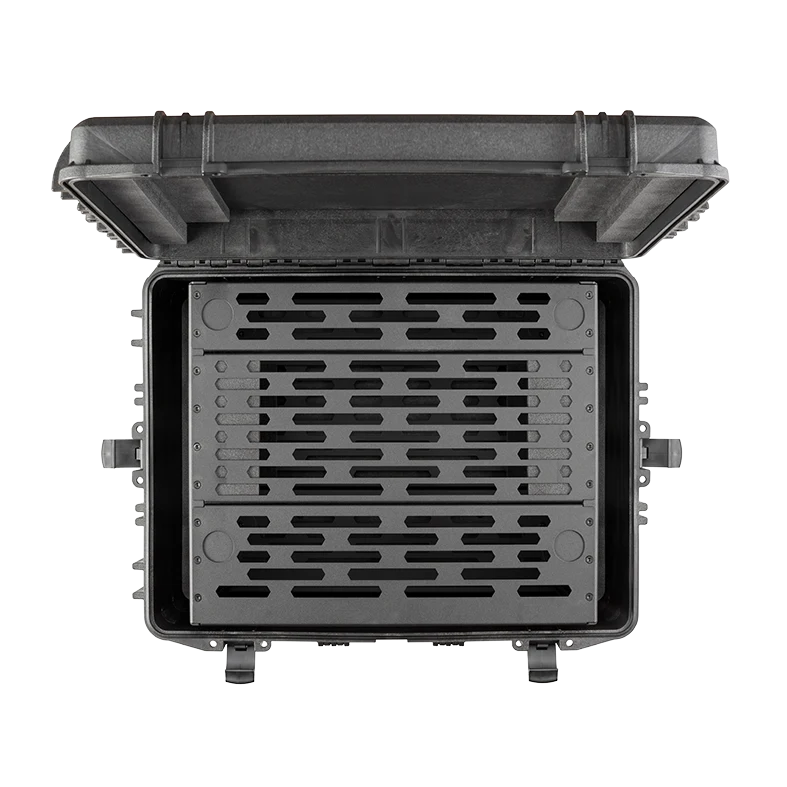

The Panaro A-RACK6U-MAX620H340TR pairs a 6U, 19 inch aluminium A-RACK frame with the watertight MAX620H340TR case, so rack mounted audio, network or control gear travels already wired and protected from water, dust and knocks.

This is Panaro's Regular A-RACK size, with adjustable rail strips that give nine rail-to-rail depths from 414 mm down to 252 mm to suit equipment of different depths. Anti-shock padding runs in the rail strips, and polyethylene foam inserts sit between the frame and the shell. The case measures 687 x 528 x 376 mm outside and 620 x 460 x 340 mm inside, and Panaro give 15.50 kg as supplied.

The open, slotted frame lets air move around running equipment and leaves cables easy to route and check. Side handles on the frame let you lift the whole rack out for bench work or to swap it between cases. Wheels and a telescopic handle take the weight on long walks through venues and terminals.

Panaro publish IP67, STANAG 4280 / DEF STAN 81-41 and MIL-STD-810H documents for the MAX620H340 case and state it is made in Italy. Browse our Panaro collection, with more protective cases and defence and tactical cases.

Often ordered together

  • 6U, 19 inch aluminium A-RACK frame
  • Anti-shock padding in the rail strips
  • Nine rail depths, 414 to 252 mm
  • Open slotted frame for airflow and cabling
  • Frame side handles for quick removal
  • Watertight MAX620H340TR case, IP67 documented
  • Telescopic handle and wheels
  • Mixers, amplifiers and wireless receivers on tour
  • Network switches and routers for site deployments
  • Broadcast and outside broadcast equipment
  • Defence and emergency communications kits
  • Control and test equipment in the field

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro

Range: MAX Cases with A-RACK

MPN: A-RACK6U-MAX620H340TR

Mega Code: PMA-RACK6U-MAX620H340TR

Panaro Configuration: MAX620H340-RR6UTR

Rack Size: 6U, 19 inch

Rack Type: A-RACK Regular

Rail Depths (Panaro): Nine rail-to-rail depths from 414 mm down to 252 mm

Internal Dimensions: 620 x 460 x 340 mm

External Dimensions: 687 x 528 x 376 mm

Lid and Base Depth: 60 mm lid + 280 mm base

Capacity: 96.96 litres

Weight: 15.50 kg as supplied (Panaro)

Certifications (Panaro, case): IP67, STANAG 4280 / DEF STAN 81-41, MIL-STD-810H

Materials: Polypropylene shell, nylon latches, aluminium rack, polyethylene foam

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

Yes. You get the MAX620H340TR case with the 6U A-RACK frame and foam inserts fitted. Equipment shown in photos is not included.
The rail strips move to give nine rail-to-rail depths from 414 mm down to 252 mm. Check the depth of your deepest unit, including connectors and cables at the back.
Yes for most jobs. Open the lid to reach the front panels. For rear access, lift the frame out by its side handles.
Yes. The non trolley MAX620H340 version is lighter, and both take the same 6U frame.
Panaro list a front or rear rack cover (RLID) and a screen mount (RSCREEN) as accessories. Ask us and we will check availability.
