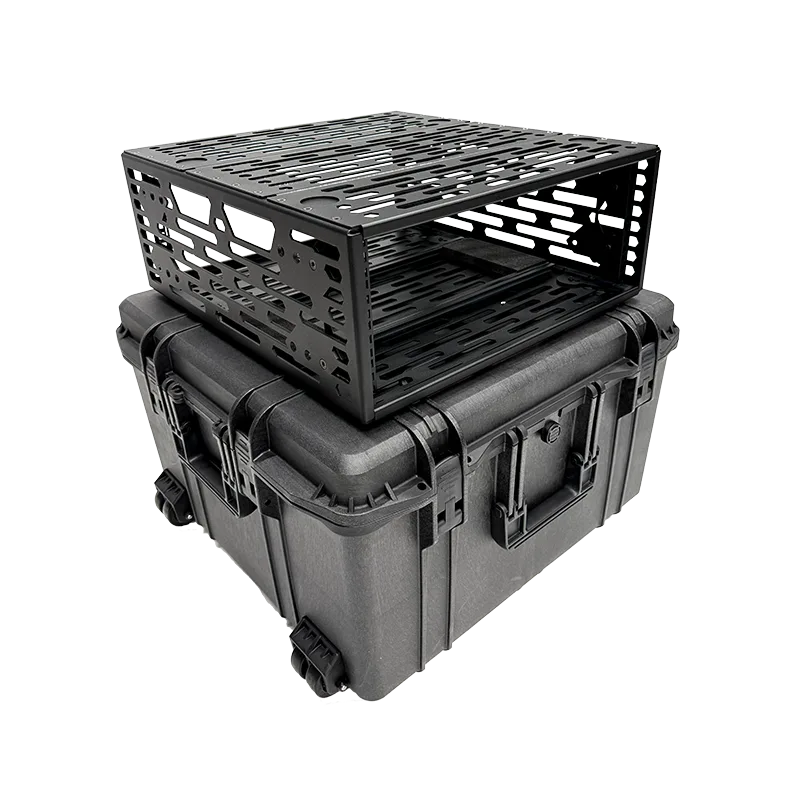

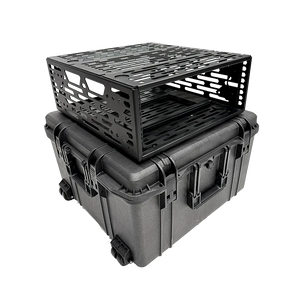

Panaro 4U A-RACK frame lifted above the MAX615 case to show how it slides in
Front of the closed Panaro MAX615 case with latches and wheels at the lower edge

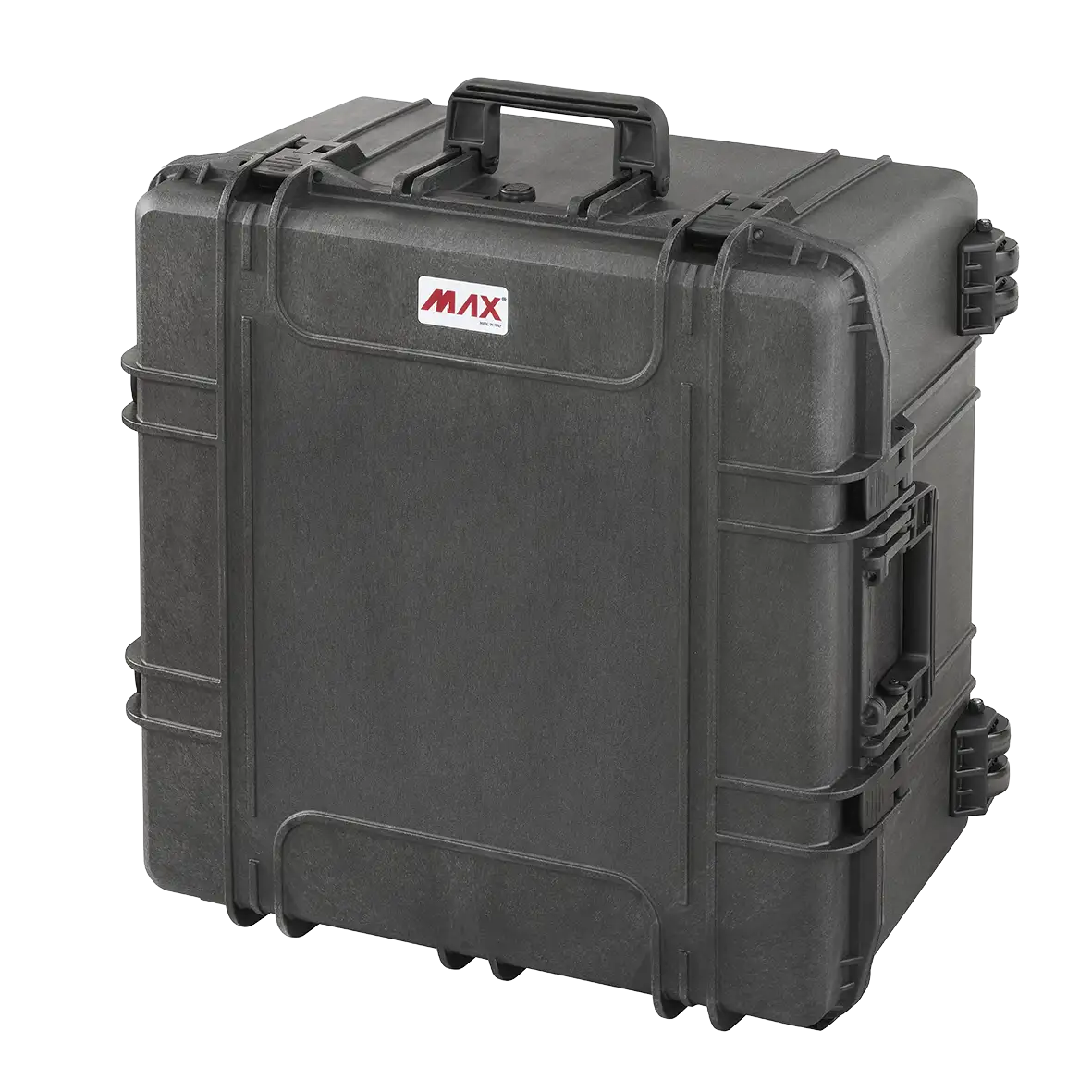

Closed Panaro MAX615 square case from the side showing the handle, latches and MAX logo

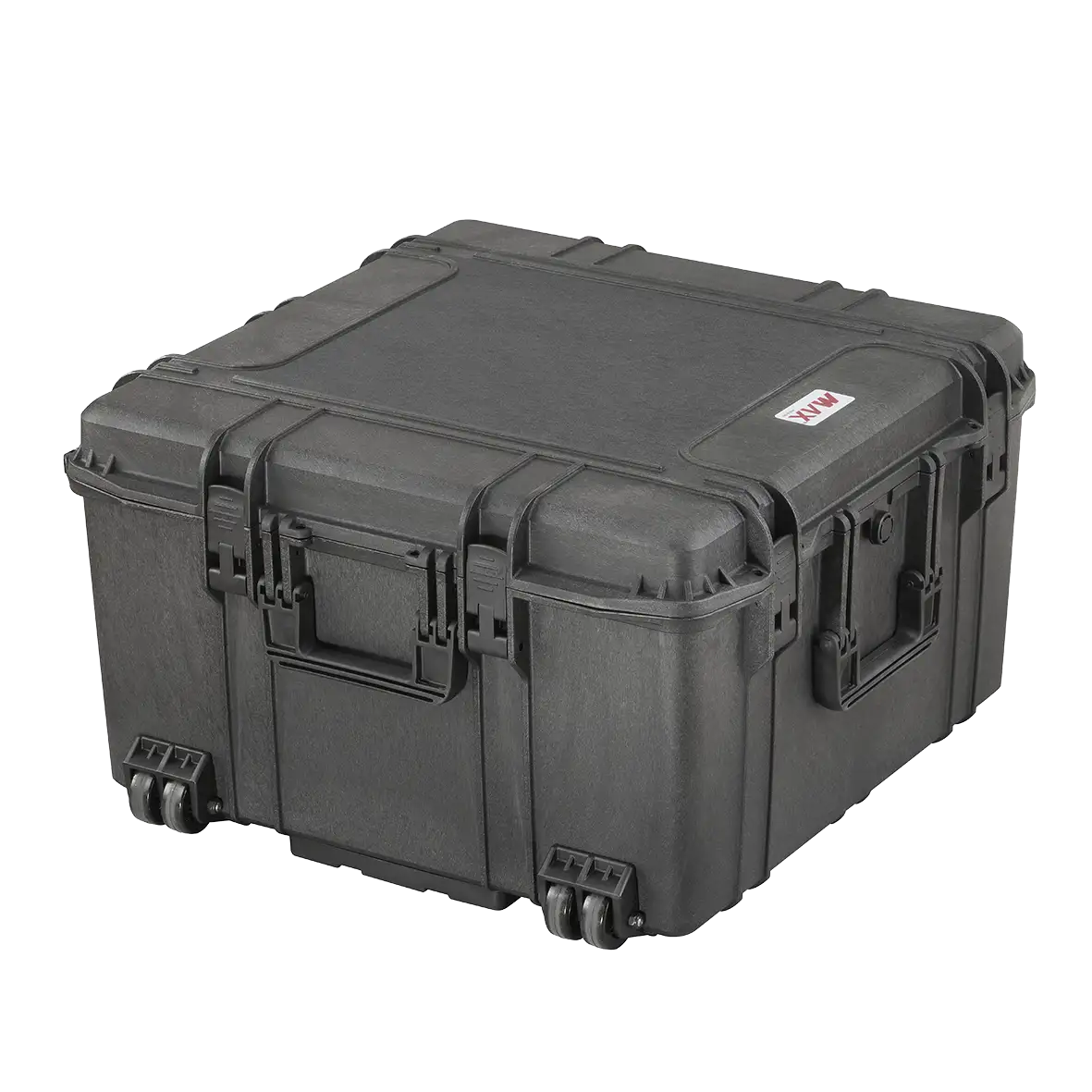

Closed Panaro MAX615 case at an angle with side handles, latches and wheels

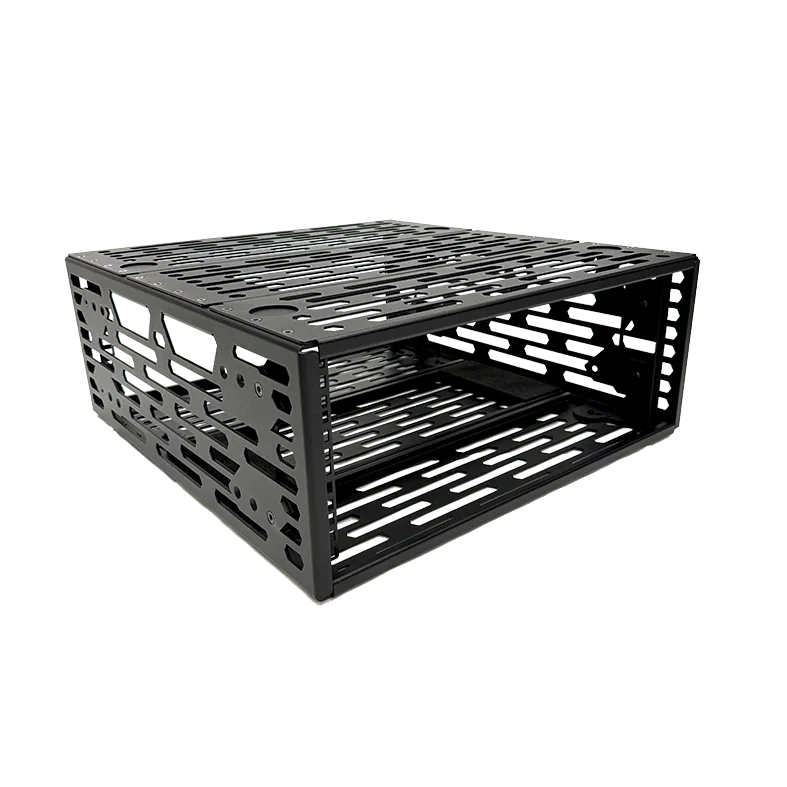

Panaro 4U A-RACK aluminium frame on its own, showing the open slotted sides and rails

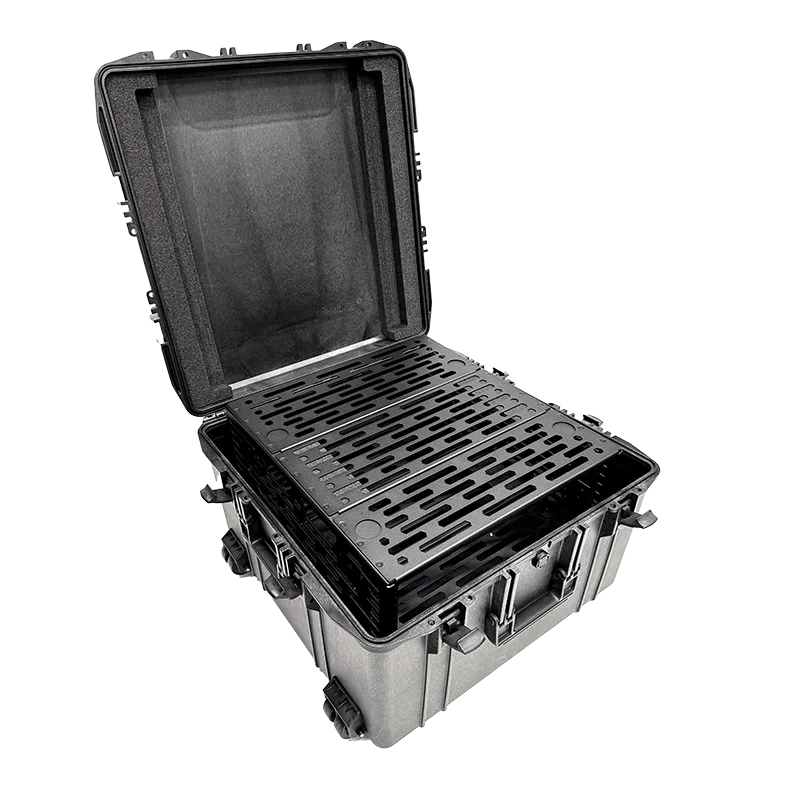

Panaro MAX615 case open with the 4U rack frame fitted inside
Front view of the open Panaro MAX615 with the 4U rack frame and foam lining
Panaro 4U A-RACK frame lifted above the MAX615 case to show how it slides in
Front of the closed Panaro MAX615 case with latches and wheels at the lower edge
Closed Panaro MAX615 square case from the side showing the handle, latches and MAX logo
Closed Panaro MAX615 case at an angle with side handles, latches and wheels
Panaro 4U A-RACK aluminium frame on its own, showing the open slotted sides and rails
Panaro MAX615 case open with the 4U rack frame fitted inside
Front view of the open Panaro MAX615 with the 4U rack frame and foam lining
Panaro 4U A-RACK frame lifted above the MAX615 case to show how it slides in
Front of the closed Panaro MAX615 case with latches and wheels at the lower edge
Closed Panaro MAX615 square case from the side showing the handle, latches and MAX logo
Closed Panaro MAX615 case at an angle with side handles, latches and wheels
Panaro 4U A-RACK aluminium frame on its own, showing the open slotted sides and rails
Panaro MAX615 case open with the 4U rack frame fitted inside
Front view of the open Panaro MAX615 with the 4U rack frame and foam lining
Panaro

Panaro A-RACK 4U 19 Inch Rack Case in MAX615 Waterproof Case Black

Regular price
$2,601.94
Sale price
$2,601.94
Regular price
RRP $2,786.69
Or 4 payments of $650.49 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMA-RACK4U-MAX615

4U of Shock Mounted Rack Space Inside a Watertight Case

The Panaro A-RACK4U-MAX615 pairs a 4U, 19 inch aluminium A-RACK frame with the watertight MAX615 case, so rack mounted audio, network or control gear travels already wired and protected from water, dust and knocks.

This is Panaro's Ultra A-RACK size, with adjustable rail strips that give nine rail-to-rail depths from 529 mm down to 367 mm to suit equipment of different depths. Anti-shock padding runs in the rail strips, and polyethylene foam inserts sit between the frame and the shell. The case measures 680 x 675 x 393 mm outside and 615 x 615 x 360 mm inside, and Panaro give 16.60 kg as supplied.

The open, slotted frame lets air move around running equipment and leaves cables easy to route and check. Side handles on the frame let you lift the whole rack out for bench work or to swap it between cases. Side handles on the case and a large fold down handle cover short carries.

Panaro publish IP67, STANAG 4280 / DEF STAN 81-41 and MIL-STD-810H documents for the MAX615 case and state it is made in Italy. Browse our Panaro collection, with more protective cases and defence and tactical cases.

  • 4U, 19 inch aluminium A-RACK frame
  • Anti-shock padding in the rail strips
  • Nine rail depths, 529 to 367 mm
  • Open slotted frame for airflow and cabling
  • Frame side handles for quick removal
  • Watertight MAX615 case, IP67 documented
  • Foam inserts between frame and shell
  • Mixers, amplifiers and wireless receivers on tour
  • Network switches and routers for site deployments
  • Broadcast and outside broadcast equipment
  • Defence and emergency communications kits
  • Control and test equipment in the field

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro

Range: MAX Cases with A-RACK

MPN: A-RACK4U-MAX615

Mega Code: PMA-RACK4U-MAX615

Panaro Configuration: MAX615-RU4U

Rack Size: 4U, 19 inch

Rack Type: A-RACK Ultra

Rail Depths (Panaro): Nine rail-to-rail depths from 529 mm down to 367 mm

Internal Dimensions: 615 x 615 x 360 mm

External Dimensions: 680 x 675 x 393 mm

Lid and Base Depth: 60 mm lid + 300 mm base

Capacity: 135 litres

Weight: 16.60 kg as supplied (Panaro)

Certifications (Panaro, case): IP67, STANAG 4280 / DEF STAN 81-41, MIL-STD-810H

Materials: Polypropylene shell, nylon latches, aluminium rack, polyethylene foam

FAQs

Yes. You get the MAX615 case with the 4U A-RACK frame and foam inserts fitted. Equipment shown in photos is not included.
The rail strips move to give nine rail-to-rail depths from 529 mm down to 367 mm. Check the depth of your deepest unit, including connectors and cables at the back.
Yes for most jobs. Open the lid to reach the front panels. For rear access, lift the frame out by its side handles.
Panaro make trolley versions of the MAX615 rack cases with wheels and a telescopic handle. Ask us if the one you need is not listed.
Panaro list a front or rear rack cover (RLID) and a screen mount (RSCREEN) as accessories. Ask us and we will check availability.
