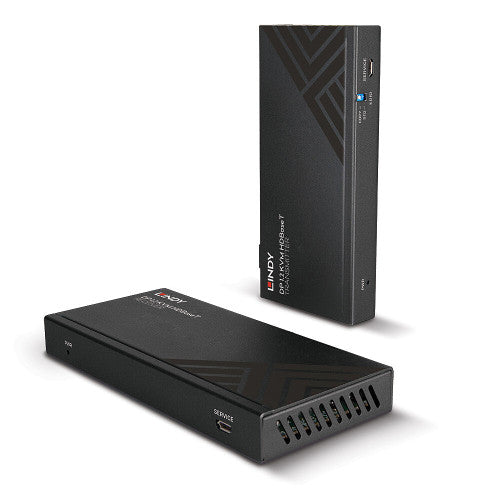

Lindy 150m Cat6 DisplayPort 1.2 HDBaseT KVM Extender, receiver standing upright behind the transmitter lying flat with vents and service port

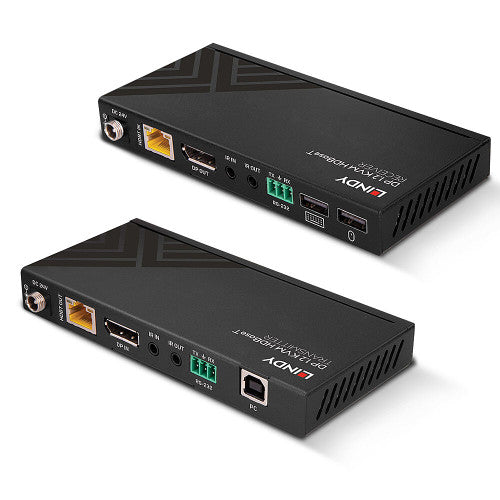

Rear panels of the Lindy DisplayPort 1.2 HDBaseT KVM Extender units showing RJ45, DisplayPort, IR jacks, green RS-232 terminal blocks and USB ports

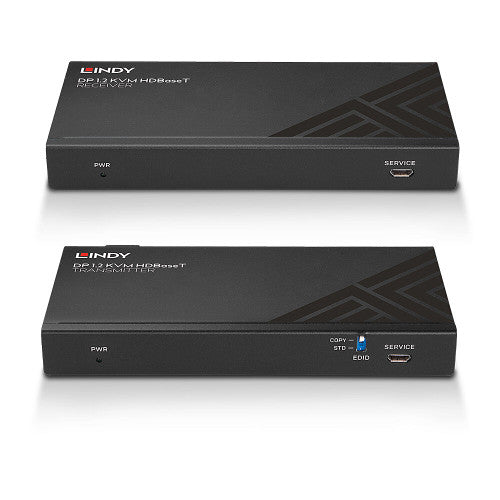

Front panels of the Lindy DisplayPort 1.2 HDBaseT KVM Extender transmitter and receiver with power LEDs, service ports and EDID switch

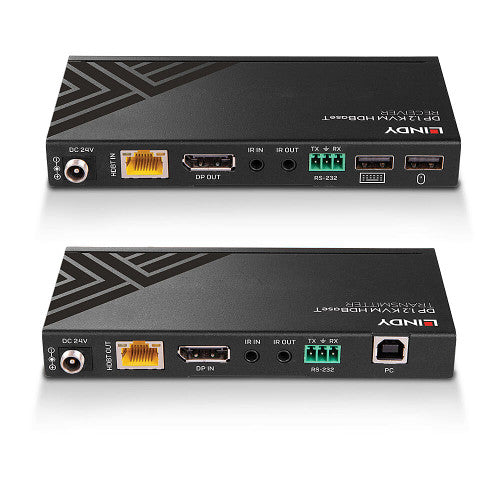

Straight rear view of the Lindy DP 1.2 KVM HDBaseT receiver above the transmitter, showing DC input, RJ45, DisplayPort, IR, RS-232 and USB ports

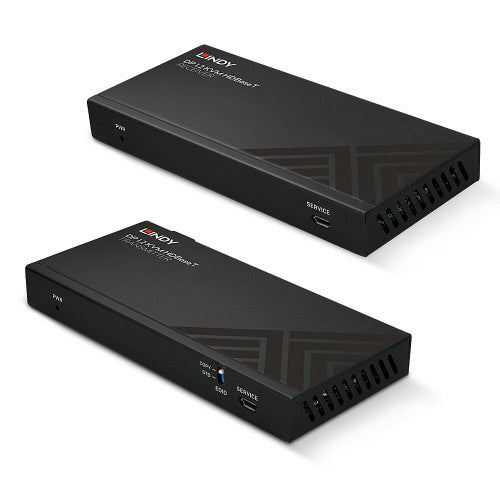

Both units of the Lindy 150m Cat6 DisplayPort 1.2 HDBaseT KVM Extender lying at an angle, showing the patterned tops and vents
Lindy 150m Cat6 DisplayPort 1.2 HDBaseT KVM Extender, receiver standing upright behind the transmitter lying flat with vents and service port
Rear panels of the Lindy DisplayPort 1.2 HDBaseT KVM Extender units showing RJ45, DisplayPort, IR jacks, green RS-232 terminal blocks and USB ports
Front panels of the Lindy DisplayPort 1.2 HDBaseT KVM Extender transmitter and receiver with power LEDs, service ports and EDID switch
Straight rear view of the Lindy DP 1.2 KVM HDBaseT receiver above the transmitter, showing DC input, RJ45, DisplayPort, IR, RS-232 and USB ports
Both units of the Lindy 150m Cat6 DisplayPort 1.2 HDBaseT KVM Extender lying at an angle, showing the patterned tops and vents
Lindy 150m Cat6 DisplayPort 1.2 HDBaseT KVM Extender, receiver standing upright behind the transmitter lying flat with vents and service port
Rear panels of the Lindy DisplayPort 1.2 HDBaseT KVM Extender units showing RJ45, DisplayPort, IR jacks, green RS-232 terminal blocks and USB ports
Front panels of the Lindy DisplayPort 1.2 HDBaseT KVM Extender transmitter and receiver with power LEDs, service ports and EDID switch
Straight rear view of the Lindy DP 1.2 KVM HDBaseT receiver above the transmitter, showing DC input, RJ45, DisplayPort, IR, RS-232 and USB ports
Both units of the Lindy 150m Cat6 DisplayPort 1.2 HDBaseT KVM Extender lying at an angle, showing the patterned tops and vents
Lindy

Lindy 150m Cat6 DisplayPort 1.2 HDBaseT KVM Extender USB IR and RS-232

$795.00
$795.00
RRP $921.91
Or 4 payments of $198.75 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: DS39385

UPC: 4002888393850

MPN: 39385

DisplayPort, USB, IR and RS-232 over one Cat6 run

This Lindy HDBaseT KVM extender carries DisplayPort 1.2 video, USB keyboard and mouse, IR, RS-232 and power over a single Cat.6 cable.

The transmitter takes DisplayPort and a USB Type B host connection from the computer, and the receiver provides DisplayPort out and two USB Type A ports for a keyboard and mouse. Lindy quotes 3840x2160 at 60Hz 4:4:4 8bit up to 100m and 1920x1080 at 60Hz up to 150m on high quality solid core Cat.6, with 21.6Gbps bandwidth, HDCP 2.2 and audio pass-through including Dolby TrueHD and DTS-HD.

Quote Lindy part 39385 or our code DS39385 when ordering. The kit includes the transmitter and receiver, a 1.5m USB 2.0 Type A to B cable, 1.5m IR emitter and receiver cables, four mounting ears with eight screws, two 3-pin terminal blocks, a multi-country power supply and a Lindy manual. Lindy backs it with a 3 year warranty.

Bi-directional IR, RS-232 pass-through and Power over Cable from one 24VDC supply complete the system. Typical uses include digital signage, conference rooms, lecture theatres and broadcast facilities. See Cable Extenders, Cable Extenders & Converters, Office Technology Supplies and LINDY.

Often ordered together

  • DisplayPort 1.2 up to 3840x2160 at 60Hz
  • 150m at 1080p, 100m at 4K60
  • USB HID keyboard and mouse extension
  • Bi-directional IR and RS-232 pass-through
  • Power over Cable from one supply
  • EDID dip switch with copy function
  • Digital signage
  • Conference rooms
  • Lecture theatres
  • Broadcast facilities
  • Equipment rooms with the PC away from the operator

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Lindy

Product Code: DS39385

Lindy Part No.: 39385

Interface: DisplayPort 1.2, USB 1.1

Bandwidth: 21.6Gbps

Maximum Distance: 150m (100m at 4K60)

Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit

HDCP: 2.2

IR Support: 20 to 60kHz

Chipset: VS010-A0

Receiver Outputs: DP, 2 x USB Type A, 3.5mm IR

Power: 24VDC 1A, 5.5/2.1mm

Dimensions (W x D x H): 140 x 65 x 18mm each unit

Housing: Black metal

Warranty: 3 years

Downloads

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

Lindy quotes 3840x2160 at 60Hz up to 100m, and 1920x1080 at 60Hz up to 150m, on high quality solid core Cat.6.
Yes. Integrated USB HID support lets a keyboard and mouse at the receiver control the source computer.
One. Power over Cable runs both transmitter and receiver from a single supply.
By a dip switch with a copy function.
