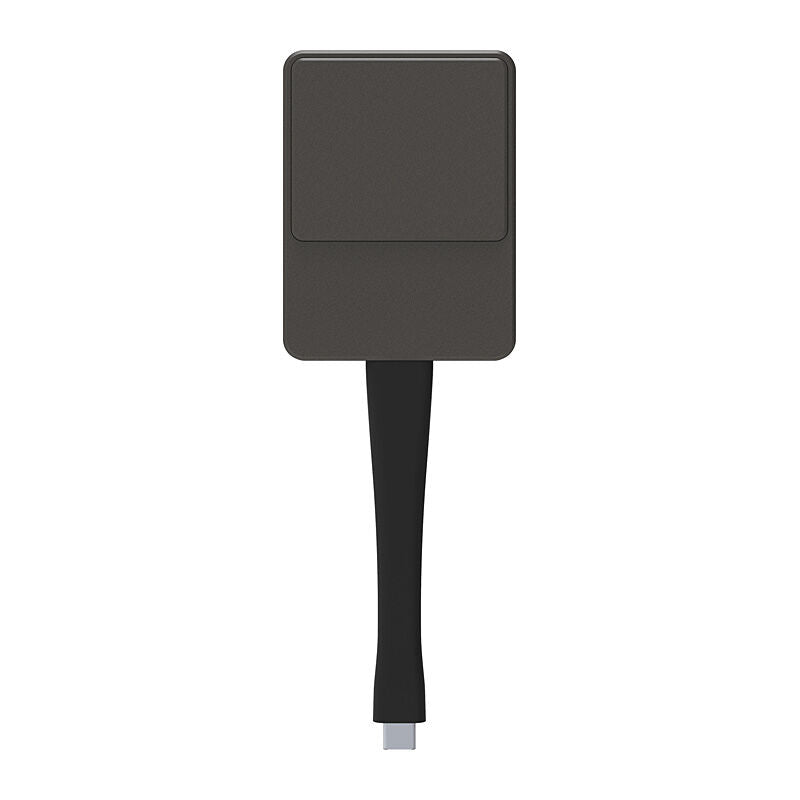

Dahua wireless screen sharing dongle DHI-PKP-WP1B, front view of the dark grey rectangular body with a flat black cable ending in a small silver plug

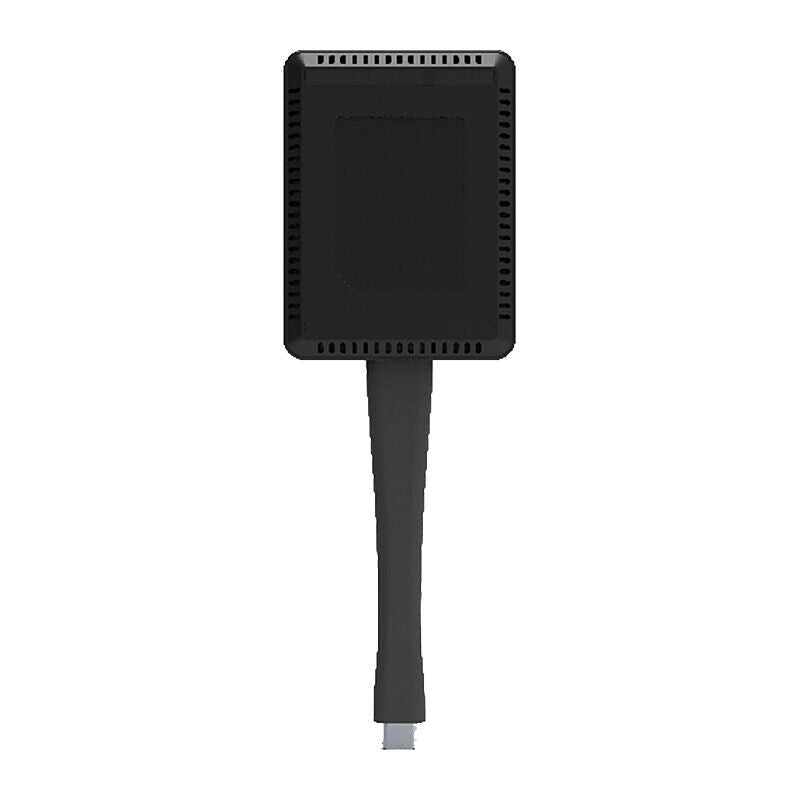

Back of the Dahua screen sharing dongle DHI-PKP-WP1B, black housing with vent slots around the edge and a flat cable running to a small silver plug
Dahua wireless screen sharing dongle DHI-PKP-WP1B, front view of the dark grey rectangular body with a flat black cable ending in a small silver plug
Back of the Dahua screen sharing dongle DHI-PKP-WP1B, black housing with vent slots around the edge and a flat cable running to a small silver plug
Dahua wireless screen sharing dongle DHI-PKP-WP1B, front view of the dark grey rectangular body with a flat black cable ending in a small silver plug
Back of the Dahua screen sharing dongle DHI-PKP-WP1B, black housing with vent slots around the edge and a flat cable running to a small silver plug
Dahua

Dahua Wireless Screen Sharing USB Type-C Cable Adaptor

$572.00
$572.00
RRP
Or 4 payments of $143.00 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: DSDHI-PKP-WP1B

A plug and press dongle for sharing a laptop screen to the board

Dahua's data sheet describes the DHI-PKP-WP1B as a wireless screen sharing dongle that plugs into a laptop's full featured Type-C port and projects to the display at the press of a button, with no software or drivers to install.

Dahua lists output up to 3840 x 2160, IEEE 802.11 a/g/n Wi-Fi on 2.4 GHz and 5 GHz, WPA2 authentication with CCMP encryption, and a transmission distance of up to 15 m from the host. Frame rate, per Dahua, reaches up to 60 fps at FHD depending on the environment, and blue, green and red LEDs are listed too.

On Dahua's sheet, touch control back is rated at 10 points, letting a presenter control the casting laptop from the touch display. Dahua also says the transmitter can be paired with multiple devices at the same time and project for each in turn, with collaborative sharing through the EShare app.

Dahua's sheet places this dongle with its Smart Interactive Whiteboard series. Our interactive whiteboards collection, the boards and visual communication range and our HDMI cables cover boards, room equipment and a wired connection for the times one is needed.

Often ordered together

  • Plug-in Type-C dongle with button-press projection, per Dahua
  • Dahua lists output up to 3840 x 2160
  • Wi-Fi given by Dahua: IEEE 802.11 a/g/n on 2.4 GHz and 5 GHz
  • Security listed by Dahua: WPA2 authentication and CCMP encryption
  • Range quoted by Dahua: up to 15 m from the host
  • Dahua lists touch control back at 10 points
  • No software or drivers needed, according to Dahua
  • Casting a laptop to a meeting room whiteboard
  • Visitor presentations without cables to the board
  • Classroom teaching from a teacher's laptop
  • Switching between presenters in turn
  • Hot desk and huddle room meetings

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Specification Source: Dahua data sheet DHI-PKP-WP1B, Rev 002.000

Brand: Dahua

Model: DHI-PKP-WP1B

Product Type: Wireless screen sharing dongle

Interface: Full featured Type-C

Output Resolution: up to 3840 x 2160

Wireless: IEEE 802.11 a/g/n, 2.4 GHz and 5 GHz

Security: WPA2 authentication, CCMP encryption

Transmission Distance: up to 15 m

Frame Rate: up to 60 fps at FHD, depending on environment

Touch Control Back: 10 points

Power: 5 VDC via Type-C, 2.5 W average

Net Weight: 80 g

Dimensions: 176 x 58 x 17 mm

LED Indicator: blue, green, red

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

Dahua's dongle sheet says it is used with the Smart Interactive Whiteboard series and pairs with devices that support EShare. The MC480-U data sheets we hold do not name this dongle or EShare, so we do not state a pairing with a specific board.
Dahua lists Windows 7, Windows 8.1, Windows 10 and Windows 11, macOS, Chrome OS, Linux OS and Android OS, on a device whose Type-C port is full featured.
No. Dahua's sheet says no software or drivers need to be installed: plug it in, pair it and press the button to project.
Dahua quotes a transmission distance of up to 15 m between the wireless projector and the host, and recommends the 5 GHz band.
Dahua lists 5 VDC supplied through the Type-C connection, with 2.5 W average power consumption and a 0.9 A maximum current.
