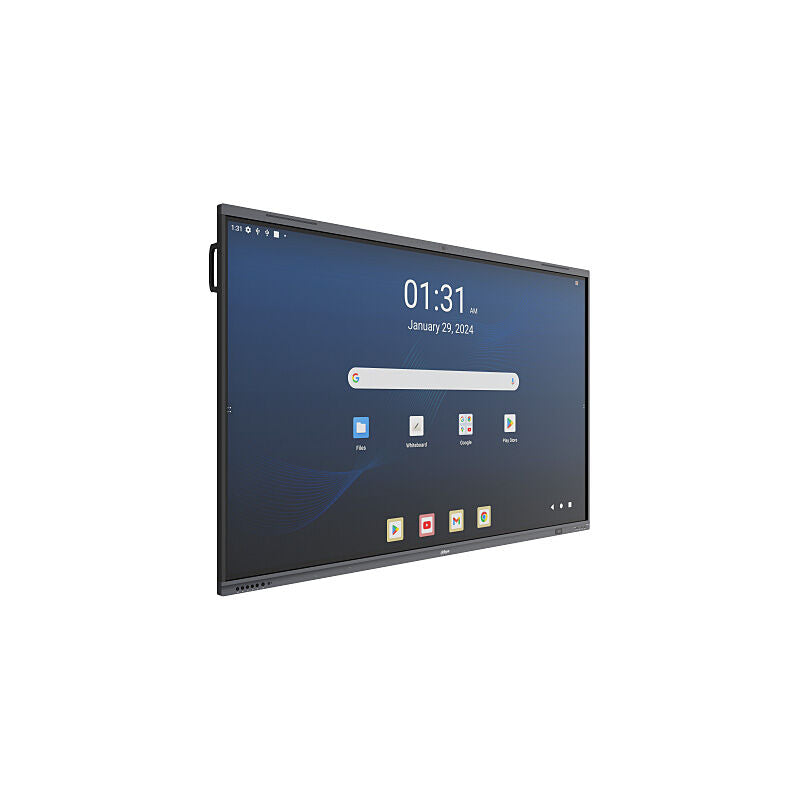

Dahua MC480-U interactive whiteboard DHI-LPH86-MC480-U viewed at an angle, slim dark grey frame, a handle on the side and a home screen with search bar and app icons

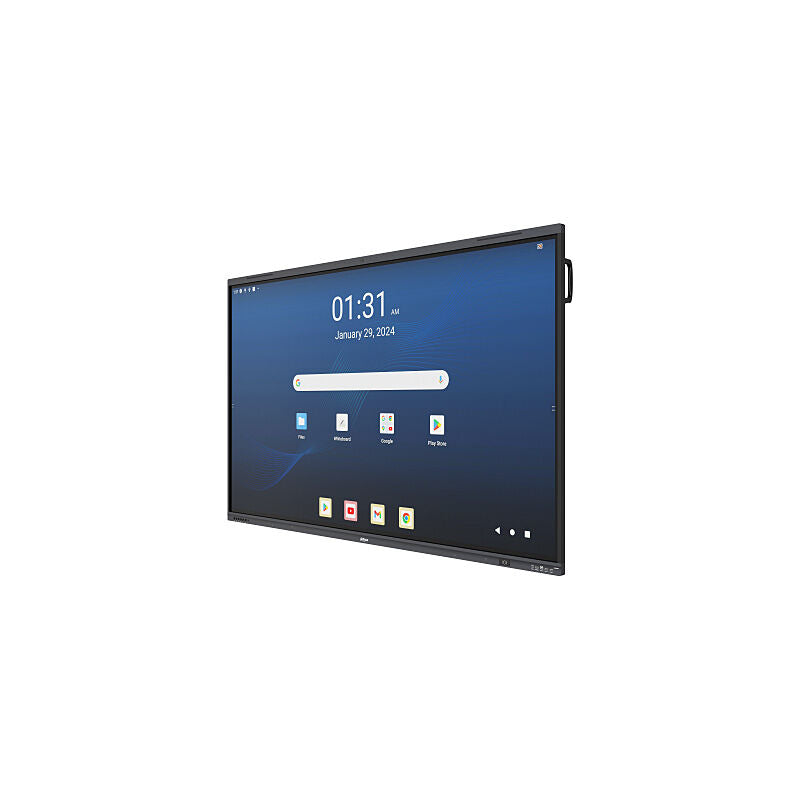

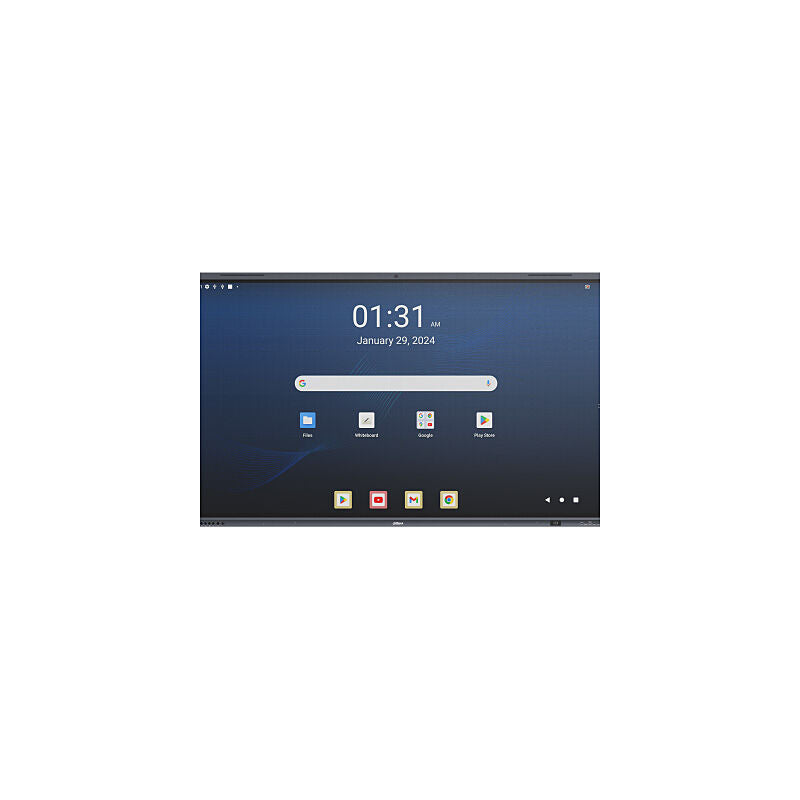

Dahua MC480-U interactive whiteboard DHI-LPH86-MC480-U from the front, thin frame around a home screen showing the time, a search bar and a row of app icons
Dahua MC480-U interactive whiteboard DHI-LPH86-MC480-U turned the opposite way, with the side handle, the dark frame edge and the home screen in view
Dahua MC480-U interactive whiteboard DHI-LPH86-MC480-U viewed at an angle, slim dark grey frame, a handle on the side and a home screen with search bar and app icons
Dahua MC480-U interactive whiteboard DHI-LPH86-MC480-U from the front, thin frame around a home screen showing the time, a search bar and a row of app icons
Dahua MC480-U interactive whiteboard DHI-LPH86-MC480-U turned the opposite way, with the side handle, the dark frame edge and the home screen in view
Dahua MC480-U interactive whiteboard DHI-LPH86-MC480-U viewed at an angle, slim dark grey frame, a handle on the side and a home screen with search bar and app icons
Dahua MC480-U interactive whiteboard DHI-LPH86-MC480-U from the front, thin frame around a home screen showing the time, a search bar and a row of app icons
Dahua MC480-U interactive whiteboard DHI-LPH86-MC480-U turned the opposite way, with the side handle, the dark frame edge and the home screen in view
Dahua

Dahua 86" UHD Pro Smart Interactive Whiteboard with Camera

$7,531.34
$7,531.34
RRP
Or 4 payments of $1,882.84 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

Bulky item: this product may be subject to additional bulky freight charges. It can't be delivered to a PO Box, so please use a street address for delivery.

SKU: DSDHI-LPH86-MC480-U

An interactive whiteboard sized for training rooms and wide boardrooms

Dahua's sheets for the DHI-LPH86-MC480-U describe an 86 inch 4K interactive whiteboard on Android 13.0, with a built-in camera, 8 microphones and 4 speakers, for training rooms and wide boardrooms where people sit well back from the screen.

Both copies of Dahua's sheet that we hold list a DLED panel of 3840 x 2160 running at 60 Hz, an 8 ms response time and an infrared touch frame under 3.2 mm tempered anti-glare glass. They differ on memory, storage, camera resolution and brightness, so those figures stay out of our specifications and are set out in the questions below.

Dahua lists an HDMI IN and a USB Type-C IN on the front, and also lists DP IN, 3 x HDMI IN, USB Type-C OUT and HDMI OUT. For audio, Dahua gives 2.2 channel sound from 2 x 18 W and 2 x 8 W speakers, and 8 microphones with pick-up to 12 m.

The other sizes in this range are in our interactive whiteboards collection, while audio and video cables and our monitors and display carry the cabling and display gear that a wide meeting room or training space tends to need.

Often ordered together

  • Display listed by Dahua: 86 inch, 3840 x 2160, 60 Hz, DLED
  • Response time quoted by Dahua: 8 ms
  • Both of Dahua's sheets list Android 13.0
  • Dahua gives the camera field of view as 98 degrees horizontal
  • Speaker output given by Dahua: 2 x 18 W and 2 x 8 W in 2.2 channel
  • Microphone array per Dahua's sheet: 8 units, 0 to 12 m pick-up
  • Training rooms with deep seating
  • Wide boardrooms and executive meeting rooms
  • Lecture spaces and auditoriums
  • Hybrid meetings with remote attendees
  • Workshops and planning sessions

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Specification Source: Dahua data sheets DHI-LPH86-MC480-U, Rev 002.000

Brand: Dahua

Model: DHI-LPH86-MC480-U

Display: 86 inch, 16:9, 3840 x 2160 at 60 Hz, DLED backlight

Response Time: 8 ms

Operating System: Android 13.0

Camera: field of view H 98 degrees, D 106 degrees

Microphones: 8, pick-up distance 0 to 12 m

Speakers: 2 x 8 W + 2 x 18 W, 2.2 channel

Video Inputs: HDMI IN on the front, 3 x HDMI IN up to 4K at 60 Hz, 1 x DP IN

Video Outputs: 1 x HDMI OUT, 1 x USB Type-C OUT, both 4K at 60 Hz

Power Supply: 100 to 240 VAC, 50/60 Hz, 6.5 A

Mounting: 800 x 600 mm hole distance, wall mount or mobile bracket

Weight: 64.38 kg net, 77.60 kg gross

Dimensions: 1,957.1 x 1,178.6 x 98.5 mm

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

Dahua's sheets disagree here: one copy gives 8 GB of RAM with 128 GB of storage, another 16 GB of RAM with 256 GB of storage. Neither figure is in our specifications for that reason.
Dahua's sheets give different figures, 48 MP on one copy and 8 MP on the other. Both copies of Dahua's sheet list the same field of view, 98 degrees horizontal and 106 degrees diagonal.
No. The DHI-PKC-MS0A stand is listed by Dahua for screens from 55 to 75 inch, so this board falls outside that range. Dahua lists wall mounting with an 800 x 600 mm hole distance for this model.
Dahua's two sheets differ, 450 cd/m² typical on one and 400 cd/m² typical on the other, so we have left brightness out of the specifications.
In both copies of Dahua's sheet the packing list matches: the panel, its power cord, a remote, a pair of stylus pens, plus a wall bracket and screw pack for mounting.
