CyberPower Switched PDU 0U Vertical Rackmount 16A
- Regular price
- $1,630.01
- Sale price
- $1,630.01
- Regular price
-
RRP $1,690.52
SKU: DSPDU41404
UPC: 4712856277241
MPN: PDU41404

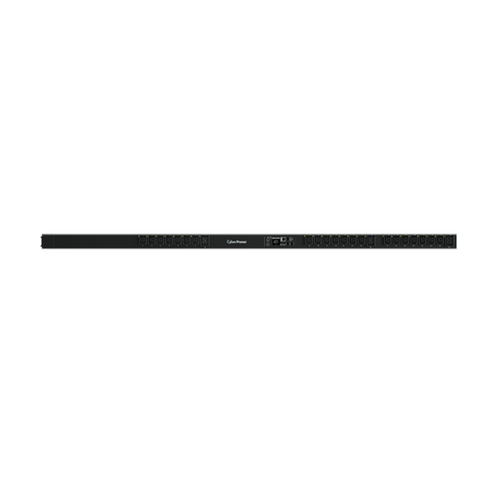

CyberPower Switched Power Distribution Units 0U Vertical Rackmount 16A
Note: Technology Products May Be Subject To Additional Fraud Checks By The Mega Team
CyberPower PDU41404 provides output from a UPS unit, generator, or utility power to multiple connected devices in IT environments. The unit supports remote individual outlet control over the network, allowing administrators to turn on/off connected devices from any location. Administrators can further determine the power sequence used to turn individual outlets on or off. The Daisy Chain function also allows the PDUs connected together to be monitored and controlled under one IP address.
The digital LCD display is color configurable and rotatable, allowing users to easily maintain and monitor the PDU. Users can change LCD’s colors to easily categorize devices between multiple machines in server room and IT environments.
The product is built-in with hot-swappable Ethernet module, which can work with PowerPanel Power Management Software and power management web interface for real-time remote monitoring and configuration. Event logging via a web browser or network connection allows users to review a history of power conditions. When specified power events occur, automatic event notifications will be sent via email, SMS text, or SNMP trap to designated users so that they can take immediate actions. The USB port supports easy firmware upgrade. Moreover, the featured RJ45 port enables the connection of the optional environmental sensor (ENVIROSENSOR), which can provide real-time temperature and humidity monitoring in an IT center.
Features:
- Real-time Local/Remote Monitoring and Switching
- Work under High Temperature
- Industrial-grade Metal Housing
- User Configurable Color LCD
- Rotatable LCD for Proper Display Orientation
- Firmware Upgrade via USB
- User-upgradeable Firmware
- Adjustable Mounting Brackets
- IEC Receptacle Locking
- Controllable Receptacles with Power Sequencing
- Ultra Low Power Consumption
- Digital Real-time Load Display
- Hot-swappable LCD Design
- LED Status Indicator
- Support ENVIROSENSOR
- PowerPanel Management Software
- Cord Retention Tray
What's in the box:
- PDU41404
- User's Manual
- Product Registration Card
- Cord Retention Tray
- Mounting Brackets
- Cable Ties
- Screw Kit
* Product contents may vary according to different regions. For detailed information, please refer to user's manual/quick start guide.
Downloads:
Specifications:
| General | |
| Type | Switched |
| Phase | Single Phase |
| Input | |
| Nominal Input Voltage ( Vac ) | 200 ~ 240 |
| Input Frequency ( Hz ) | 50 / 60 |
| Maximum Input Current ( A ) | 16 (CE) |
| Input Connector Type | IEC 60309 16A x 1
|
| Power Cord Length (ft.) | 10 |
| Power Cord Length (m.) | 3.05 |
| Output | |
| Output Voltage ( V ) | Depends on Input |
| Idle Power Consumption ( W ) | < 5 |
| Outlets - # of Bank(s) ( Bank ) | 1 |
| Outlet(s) - Total | 24 |
| Outlet(s) - Front | 24 |
| Outlet Type | IEC C13 x 21
|
IEC C19 x 3
|
|
| Remote Individual Outlet Control | Yes |
| Management & Communications | |
| LCD Information Display | Input Voltage (Volts), Input Frequency (Hz), Current Level (Amps), Power Consumption (Kilowatts), Network Information, Serial Number, Environment Status, Hardware Version, Firmware Version |
| Color LCD | Yes |
| Hot-swappable LCD Module | Yes |
| Auto LCD Orientation | Yes |
| LCD Setting & Control | Outlet Control, LCD Settings, Reset / Reboot |
| LED Indicators | PDU Status, Tx/Rx, Link, Outlet |
| A-type USB Port | Yes |
| Connectivity Port | RJ45, RJ45 (for Serial), RJ45 (for ENVIROSENSOR/ Daisy Chain (In)), RJ45 (for Daisy Chain (Out)) |
| Environmental Sensor Supported | Yes |
| User-upgradeable Firmware | Yes |
| Power Management Software | PowerPanel Business (Recommended for small-medium scale management), PowerPanel Enterprise (Recommended for large scale management) |
| Supported Protocols | IPv4/v6, SNMPv1/v3, HTTP/HTTPs, TCP/IP, UDP, DHCP, NTP, DNS, SMTP, SSH, SSL, TLS, Telnet, FTP, and Syslog |
| Authentication | RADIUS, LDAP, LDAPS, Windows AD |
| Physical | |
| Installed Rack Height (U) | 0 |
| Form Factor | 0U Vertical Rackmount |
| Enclosure Construction | Steel |
| Color | Black |
| Cord Retention Tray | Yes |
| IEC Receptacle Locking | Yes |
| Adjustable Mounting Brackets | 1 Set |
| Physical Size | |
| Dimensions (WxHxD) (in.) | 2.2 x 65.5 x 1.9 |
| Dimensions (WxHxD) (mm.) | 56 x 1665 x 48 |
| Weight (lbs.) | 15.4 |
| Weight (kg.) | 7 |
| Shipping Dimensions | |
| Dimensions (WxHxD) (in.) | 7.3 x 74.6 x 4.5 |
| Dimensions (WxHxD) (mm.) | 185 x 1895 x 115 |
| Weight (lbs.) | 19.6 |
| Weight (kg.) | 8.9 |
| Environmental | |
| High Temperature Operation | Yes |
| Operating Temperature (°F) | 32 ~ 131 |
| Operating Temperature (°C) | 0 ~ 55 |
| Operating Relative Humidity (Non-condensing) ( % ) | 0 ~ 95 |
| Operating Elevation ( feet/meters ) | 0-11,483 feet (0-3,500 meters) |
| Storage Temperature (°F) | 5 ~ 140 |
| Storage Temperature (°C) | -15 ~ 60 |
| Storage Relative Humidity (Non-condensing) ( % ) | 0 ~ 95 |
| Storage Elevation ( feet/meters ) | 0-49,213 feet (0-15,000 meters) |
| Certifications | |
| Certifications | CE, EN 55032 Class A |
| RoHS | Yes |
| Warranty | |
| Product Warranty Period (Year) | 2 |
