CyberPower

CyberPower Switched ATS Power Distribution Unit 2U Horizontal Rackmount 32A

Regular price
$2,638.16
Sale price
$2,638.16
Regular price
RRP
Or 4 payments of $659.54 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: DSPDU44302

UPC: 4711027799650

MPN: PDU44302

Dual Feed Switching for Single Corded Equipment

The CyberPower PDU44302 is a 2U switched ATS power distribution unit from the Switched ATS Series, sold here as a single unit for racks fed from two power sources.

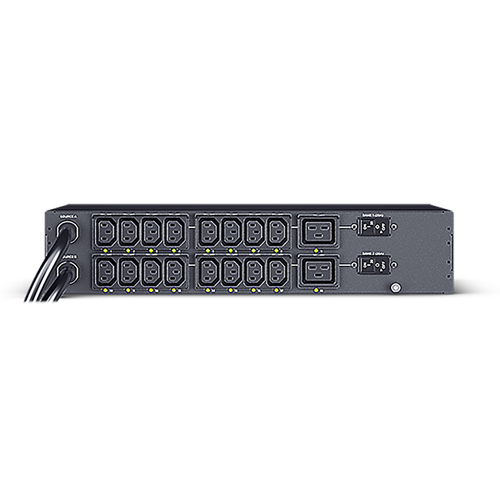

It takes two IEC 60309 32A inputs at 200 to 240Vac and switches between them automatically, with CyberPower listing a total transfer time under 10ms. That keeps single corded servers and switches running if one feed or UPS fails. The rear carries 16 IEC C13 and 2 IEC C19 outlets in 2 banks, each with 20A over current protection.

CyberPower lists individual outlet switching, a user configurable colour LCD and RJ45 ports for network, serial, ENVIROSENSOR or daisy chain in, and daisy chain out. PowerPanel software manages it alongside CyberPower UPS units, so outlet control, alerts and feed status sit in the same console the IT team already uses.

It is 433 x 88 x 215mm and weighs 7.8kg. Pair it with uninterruptible power supplies, browse the full CyberPower range, find power cables for each device, and see our networking products.

  • 2U switched automatic transfer switch PDU
  • Two IEC 60309 32A inputs for dual power feeds
  • Total transfer time under 10ms, per CyberPower
  • 16 x IEC C13 and 2 x IEC C19 rear outlets
  • 2 banks, each with 20A over current protection
  • Individual outlet switching with colour LCD
  • RJ45 network, serial, ENVIROSENSOR and daisy chain ports
  • Racks with A and B power feeds
  • Single corded servers and switches needing redundancy
  • Data centre and co-location cabinets
  • Two UPS redundant installations
  • Critical network cores

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: CyberPower

Model: PDU44302

Series: Switched ATS

Inputs: 2 x IEC 60309 32A, 200 to 240Vac, 50/60Hz

Transfer Time: Under 10ms total

Outlets: 16 x IEC C13, 2 x IEC C19 (18 total, rear)

Banks: 2, each with 20A over current protection

Switching: Individual outlet

Display: User configurable colour LCD

Ports: RJ45 network, serial, ENVIROSENSOR/daisy chain in, daisy chain out

Form Factor: 2U rack

Size: 433 x 88 x 215mm (W x H x D)

Weight: 7.8kg, per CyberPower's datasheet

FAQs

One CyberPower PDU44302 2U switched ATS PDU, sold as a single unit (pack size 1). CyberPower's datasheet does not itemise the box contents, so ask us if you need to confirm included mounting hardware.
It takes two power feeds and automatically switches the outlets to the second feed if the first fails. CyberPower lists a total transfer time under 10ms.
CyberPower lists two IEC 60309 32A input plugs, so both feeds need matching 32A industrial sockets installed by an electrician.
Yes. CyberPower lists individual outlet switching, managed over the network with PowerPanel software.
CyberPower lists 433 x 88 x 215mm, 2U high, and 7.8kg.
