CyberPower Metered ATS Power Distribution Unit 1U Horizontal Rackmount 10A
- Regular price
- $883.74
- Sale price
- $883.74
- Regular price
-
RRP $916.54
SKU: DSPDU24004
UPC: 4711027799810
MPN: PDU24004
CyberPower Metered ATS Power Distribution Units 1U Horizontal Rackmount 10A
Note: Technology Products May Be Subject To Additional Fraud Checks By The Mega Team

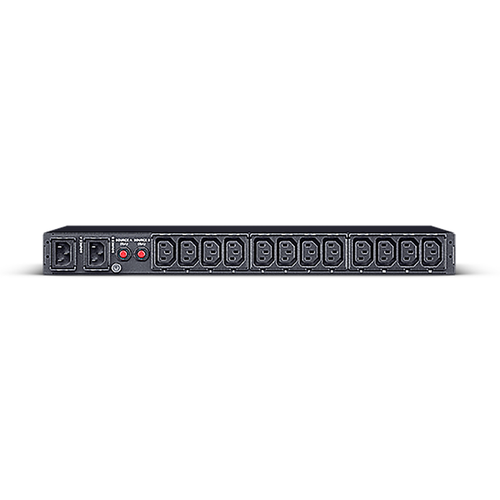

CyberPower PDU24004 provides output from a UPS unit, generator, or utility power to multiple connected devices in IT environments. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded connected equipment. If the selected power source exceeds the desired thresholds or fails, the ATS PDU will automatically switch to the other power source within 10 ms (Source Failure Detection Time: 2-3 ms. Power Source Transfer Time: 2-7 ms) to ensure continuous operation.

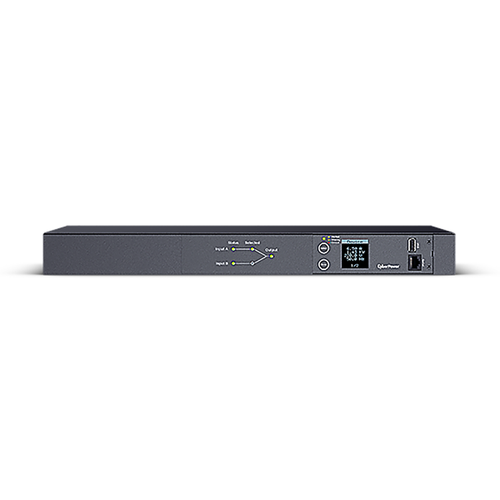

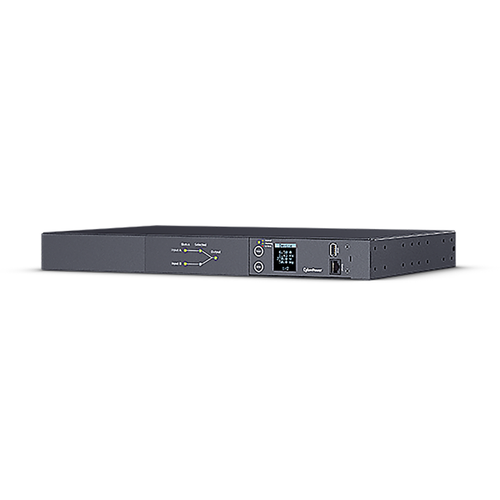

The unit comes with a hot-swappable multifunction readout that displays real-time vitals including current, input voltage, power consumption levels in amps and watts. The digital LCD display is also color configurable, allowing easy maintenance and monitoring of the ATS PDU. Users can change LCD’s colors to easily categorize devices between multiple machines in server room and IT environments. The firmware can also be conveniently upgraded via the USB port, ensuring the latest features and updates are available for users.
The product can be connected to a PC through the serial port to perform local control of the ATS PDU.
Features:
- Real-time Local Monitoring
- Quick Transfer Time (Total ＜ 10 ms)
- Digital Real-time Load Display
- Hot-swappable LCD Design
- Firmware Upgrade via USB
- Adjustable Mounting Brackets
- IEC Receptacle Locking
- Dual Inputs
- Industrial-grade Metal Housing
- User Configurable Color LCD
- LED Status Indicator
- User-upgradeable Firmware
- Cord Retention Tray
What's in the box:
- PDU24004
- User's Manual
- Cord Retention Tray
- Mounting Brackets
- Cable Ties
- Screw Kit
- Power Cord
- Serial Cable
* Product contents may vary according to different regions. For detailed information, please refer to user's manual/quick start guide.
Specifications:
| General | |
| Type | Metered |
| Phase | Single Phase |
| Input | |
| Dual Power Inputs | Yes |
| Nominal Input Voltage ( Vac ) | 200 ~ 240 |
| Input Frequency ( Hz ) | 50 / 60 |
| Maximum Input Current ( A ) | 12 (UL) |
| 10 (CE) | |
| Overload Protection | Circuit Breaker |
| Input Connector Type | IEC C14 x 2
|
| Power Cord Length (ft.) | 10 |
| Power Cord Length (m.) | 3.05 |
| Output | |
| Output Voltage ( V ) | Depends on Input |
| Outlets - # of Bank(s) ( Bank ) | 1 |
| Outlet(s) - Total | 12 |
| Outlet(s) - Rear | 12 |
| Outlet Type | IEC C13 x 12
|
| Management & Communications | |
| LCD Information Display | Input Voltage (Volts), Input Frequency (Hz), Current Level (Amps), Power Consumption (Kilowatts), Serial Number, Hardware Version, Firmware Version |
| Color LCD | Yes |
| Hot-swappable LCD Module | Yes |
| LCD Setting & Control | Preferred Source, Source Configuration, Load Configuration, LCD Settings, Reset / Reboot |
| LED Indicators | PDU Status, Source Status, Load |
| A-type USB Port | Yes |
| Connectivity Port | RJ45 (for Serial) |
| User-upgradeable Firmware | Yes |
| Physical | |
| Installed Rack Height (U) | 1 |
| Form Factor | 1U Horizontal Rackmount |
| Enclosure Construction | Steel |
| Color | Black |
| Cord Retention Tray | Yes |
| IEC Receptacle Locking | Yes |
| External Site Ground Pin | Yes |
| Adjustable Mounting Brackets | 1 Set |
| Physical Size | |
| Dimensions (WxHxD) (in.) | 17.05 x 1.75 x 8.45 |
| Dimensions (WxHxD) (mm.) | 433 x 44 x 215 |
| Weight (lbs.) | 7.7 |
| Weight (kg.) | 3.5 |
| Shipping Dimensions | |
| Dimensions (WxHxD) (in.) | 21.65 x 4.9 x 15.67 |
| Dimensions (WxHxD) (mm.) | 550 x 125 x 398 |
| Weight (lbs.) | 12.6 |
| Weight (kg.) | 5.7 |
| Environmental | |
| Operating Temperature (°F) | 32 ~ 113 |
| Operating Temperature (°C) | 0 ~ 45 |
| Operating Relative Humidity (Non-condensing) ( % ) | 0 ~ 95 |
| Operating Elevation ( feet/meters ) | 0-13,123 feet (0-4,000 meters) |
| Storage Temperature (°F) | 5 ~ 131 |
| Storage Temperature (°C) | -15 ~ 55 |
| Storage Relative Humidity (Non-condensing) ( % ) | 0 ~ 95 |
| Storage Elevation ( feet/meters ) | 0-49,213 feet (0-15,000 meters) |
| Certifications | |
| Certifications | CE, FCC Class A, UL62368, EN 55032 Class A, IEC 62368 |
| RoHS | Yes |
| Warranty | |
| Product Warranty Period (Year) | 2 |
