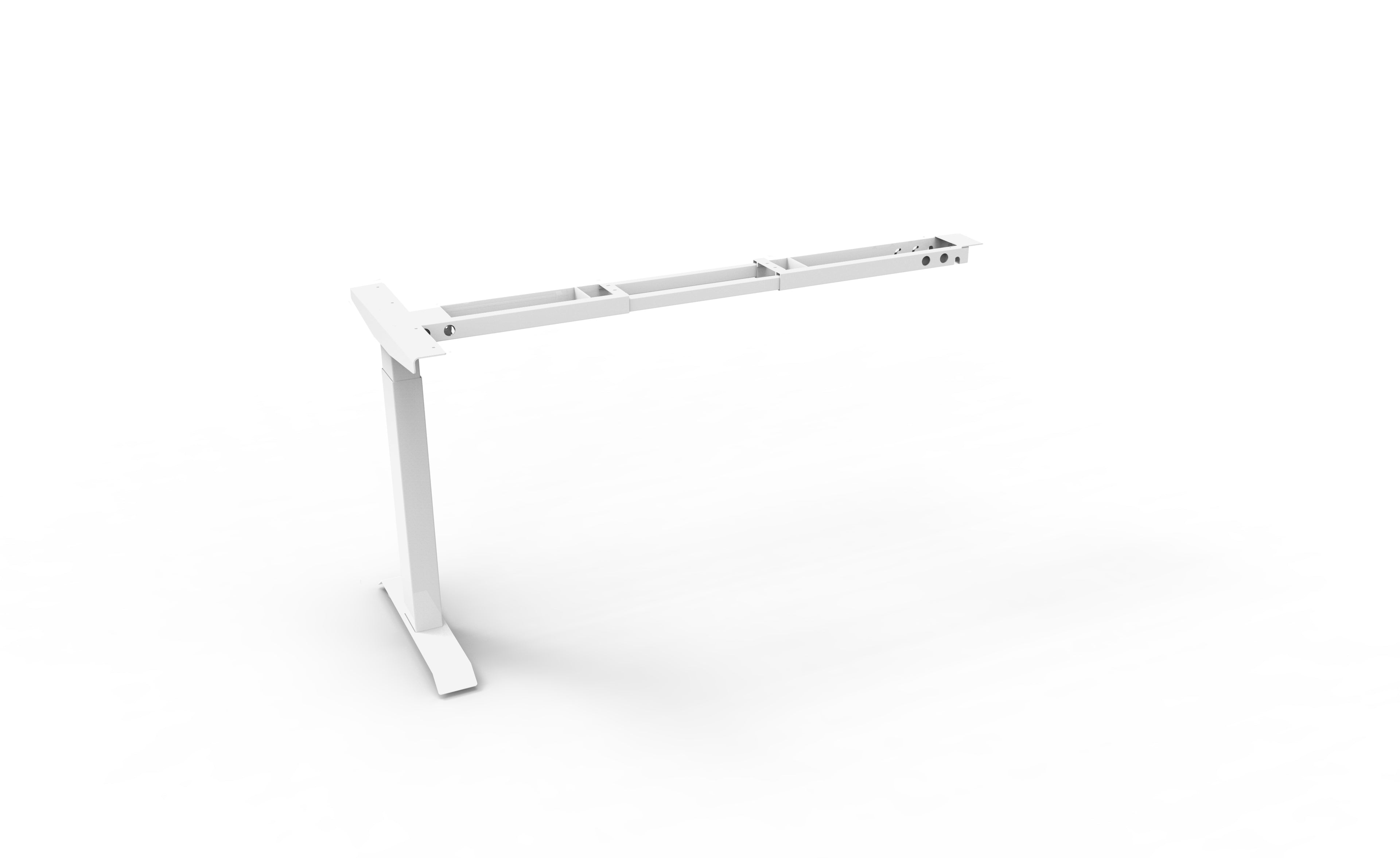

Rapidline Boost Crank manual height adjustable workstation frame finished in white satin powdercoat. Supplied product image for model BCF-RF WS. View 1.

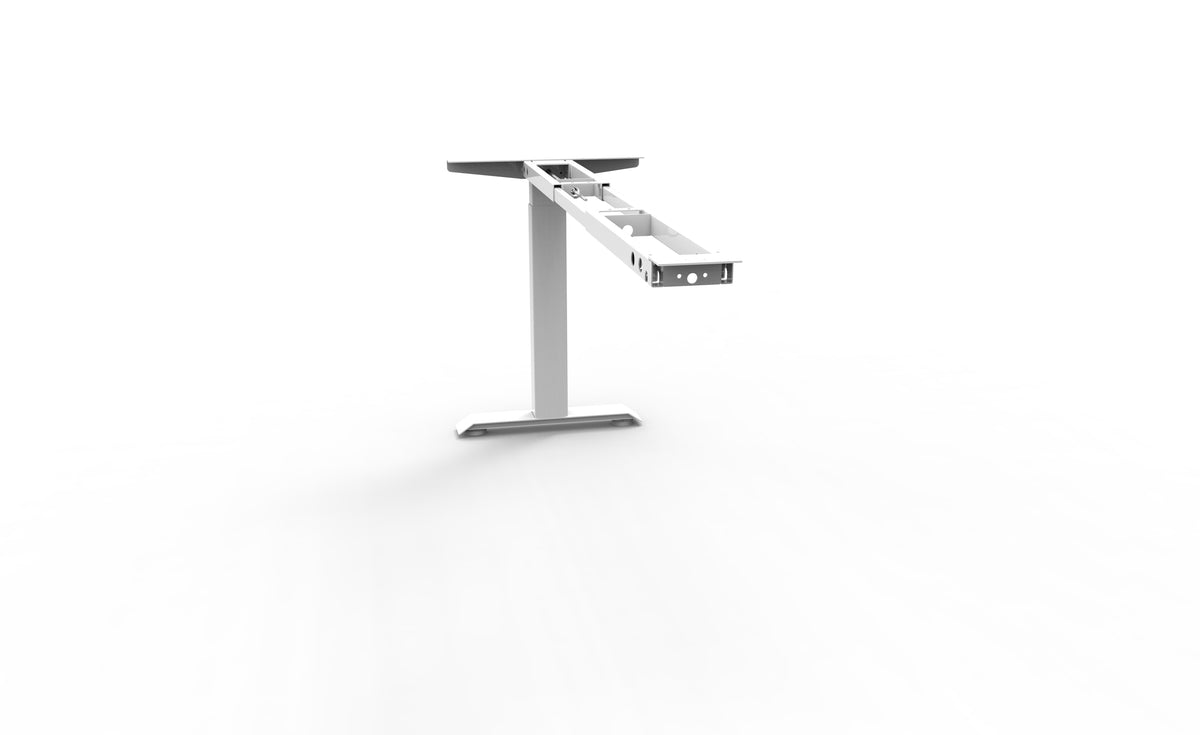

Rapidline Boost Crank manual height adjustable workstation frame finished in white satin powdercoat. Supplied product image for model BCF-RF WS. View 2.

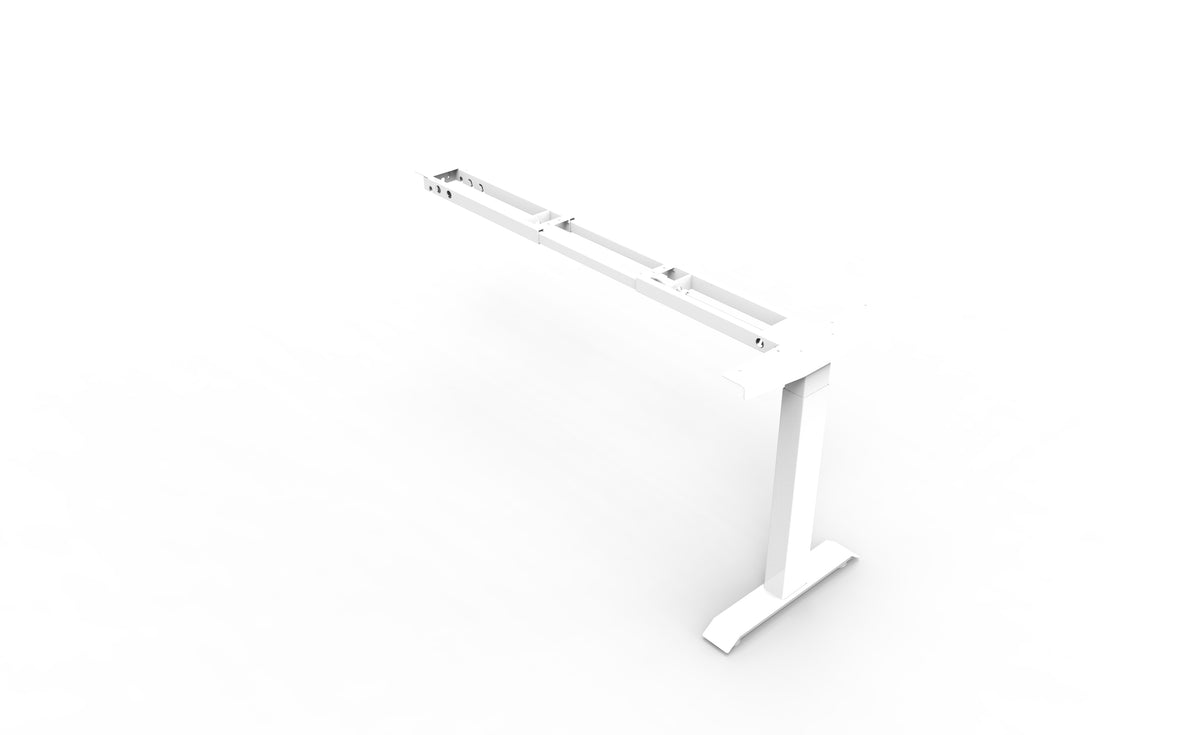

Rapidline Boost Crank manual height adjustable workstation frame finished in white satin powdercoat. Supplied product image for model BCF-RF WS. View 3.

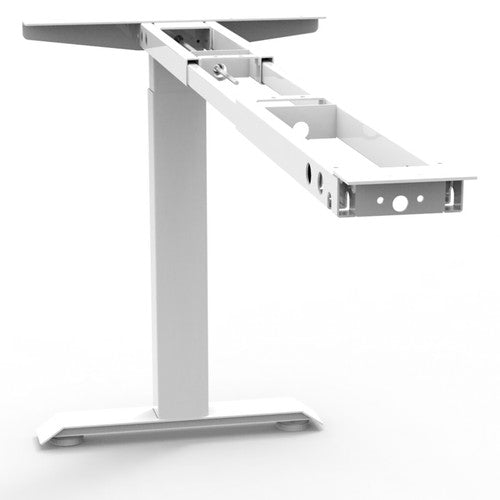

Rapidline Height Adjustable Return Frame White for Boost Crank Workstation - image 1
Rapidline Boost Crank manual height adjustable workstation frame finished in white satin powdercoat. Supplied product image for model BCF-RF WS. View 1.
Rapidline Boost Crank manual height adjustable workstation frame finished in white satin powdercoat. Supplied product image for model BCF-RF WS. View 2.
Rapidline Boost Crank manual height adjustable workstation frame finished in white satin powdercoat. Supplied product image for model BCF-RF WS. View 3.
Rapidline Height Adjustable Return Frame White for Boost Crank Workstation - image 1
Rapidline Boost Crank manual height adjustable workstation frame finished in white satin powdercoat. Supplied product image for model BCF-RF WS. View 1.
Rapidline Boost Crank manual height adjustable workstation frame finished in white satin powdercoat. Supplied product image for model BCF-RF WS. View 2.
Rapidline Boost Crank manual height adjustable workstation frame finished in white satin powdercoat. Supplied product image for model BCF-RF WS. View 3.
Rapidline Height Adjustable Return Frame White for Boost Crank Workstation - image 1
Rapidline

Rapidline Height Adjustable Return Frame Only White for Boost Crank Workstation

$328.79
$328.79
RRP $362.89
Or 4 payments of $82.20 with

SKU: FXBCF-RF WS

MPN: BCF-RF WS

The Crank Frame Without a Top

This is the manual height adjustable return underframe from the Boost Crank range in white powdercoat, sold without a top for fitouts supplying their own worktops.

Boards outlast frames. A refit that is replacing tired fixed height desks often has perfectly good tops, and a joiner making custom surfaces needs a mechanism under them rather than a whole desk. This is the same two stage crank frame that ships under the complete Boost Crank workstations, on 90 x 60mm columns, winding through 680mm to 1130mm at 15mm per second.

Rapidline publishes a lifting capacity of 100kg for this frame when it is attached to the single sided frame. That figure is for the frame alone, so your own top comes out of it. Levelling feet handle an uneven slab, the foot is 500mm, and the frame carries a five year warranty, not the ten years on the complete desks.

The frame is built to take a 25mm top, telescoping to suit 1400mm - 2000mm W worktops. The complete desks are listed as the Boost Crank single sided workstation and the back to back version, with the rest in office furniture.

Often ordered together

  • Manual crank return underframe from the Boost Crank range
  • Two stage 90 x 60mm steel columns winding through 680mm to 1130mm
  • Stroke speed of 15mm per second on the crank handle
  • Published lifting capacity of 100kg
  • White powdercoat matching the complete Boost Crank desks
  • Adjustable levelling feet, supplied without a top
  • Five year Rapidline warranty
  • Refits that keep or re-use existing worktops
  • Custom and joiner made desk tops needing a height adjustable base
  • Replacing a fixed height frame under a top worth keeping
  • Fitouts standardising on the Boost Crank range

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Rapidline

Range: Boost Crank

Model: BCF-RF WS

Mega Code: FXBCF-RF WS

EAN: 9347414045465

Type: Return crank frame only, no top

Suits Worktops: 1400mm - 2000mm W

Frame Size: 1040mm W x 500mm D x 680mm H

Height Range: 680mm to 1130mm, manual crank on two stage columns at 15mm per second

Lifting Capacity: 100kg

Finish: White powdercoat, 90 x 60mm two stage columns

Product Weight: 16.1kg

Carton Dimensions: 1050mm W x 260mm D x 210mm H

Warranty: 5 years

Unit: Each

Downloads

Always Here to Help

Based around the Gold Coast, our customer support team brings deep office supplies knowledge, with most members having more than 10 years of industry experience. We are more than customer service agents. We are experienced office supply experts ready to help. Contact us below.

Contact Support Read all FAQs

FAQs

It is built for a 25mm top and telescopes to suit 1400mm - 2000mm W worktops. The columns are 90 x 60mm in two stages and the frame winds through 680mm to 1130mm, so the finished desk height depends on the thickness of the board you fit.
Rapidline publishes a lifting capacity of 100kg for this frame when attached to the BCF-SF1218 single sided frame. That figure is for the frame itself, so the weight of your own top comes out of it.
No. The frame only listings carry a five year warranty, where the complete Boost Crank workstations carry ten years. If the ten year term matters to a specification, buy the complete desk rather than the frame.
Yes. It is the same crank frame that ships under the complete workstations, in the same white powdercoat, so a room mixing complete desks and frame only builds still reads as one range.
