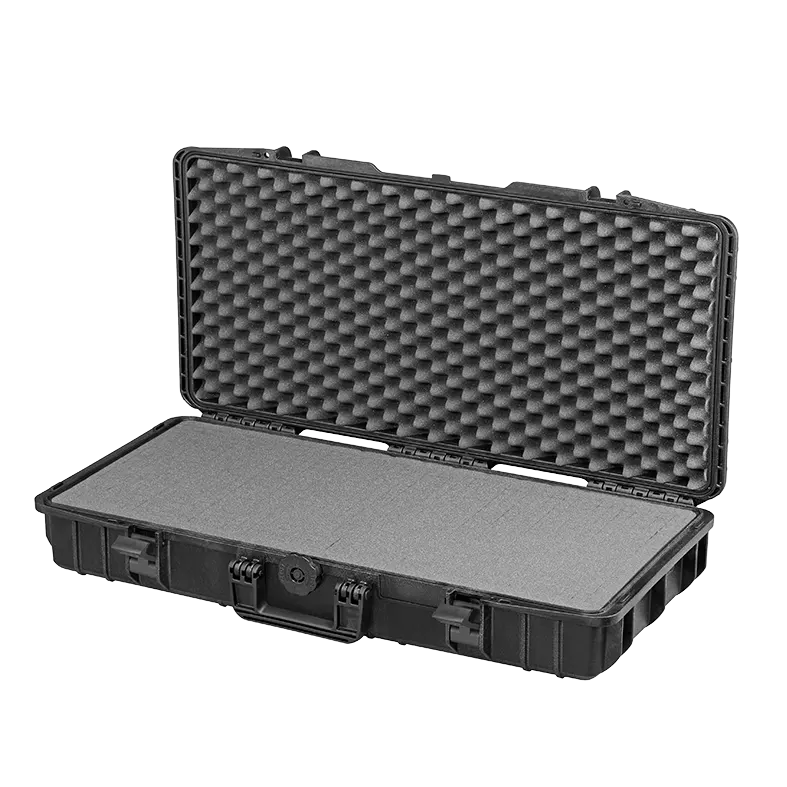

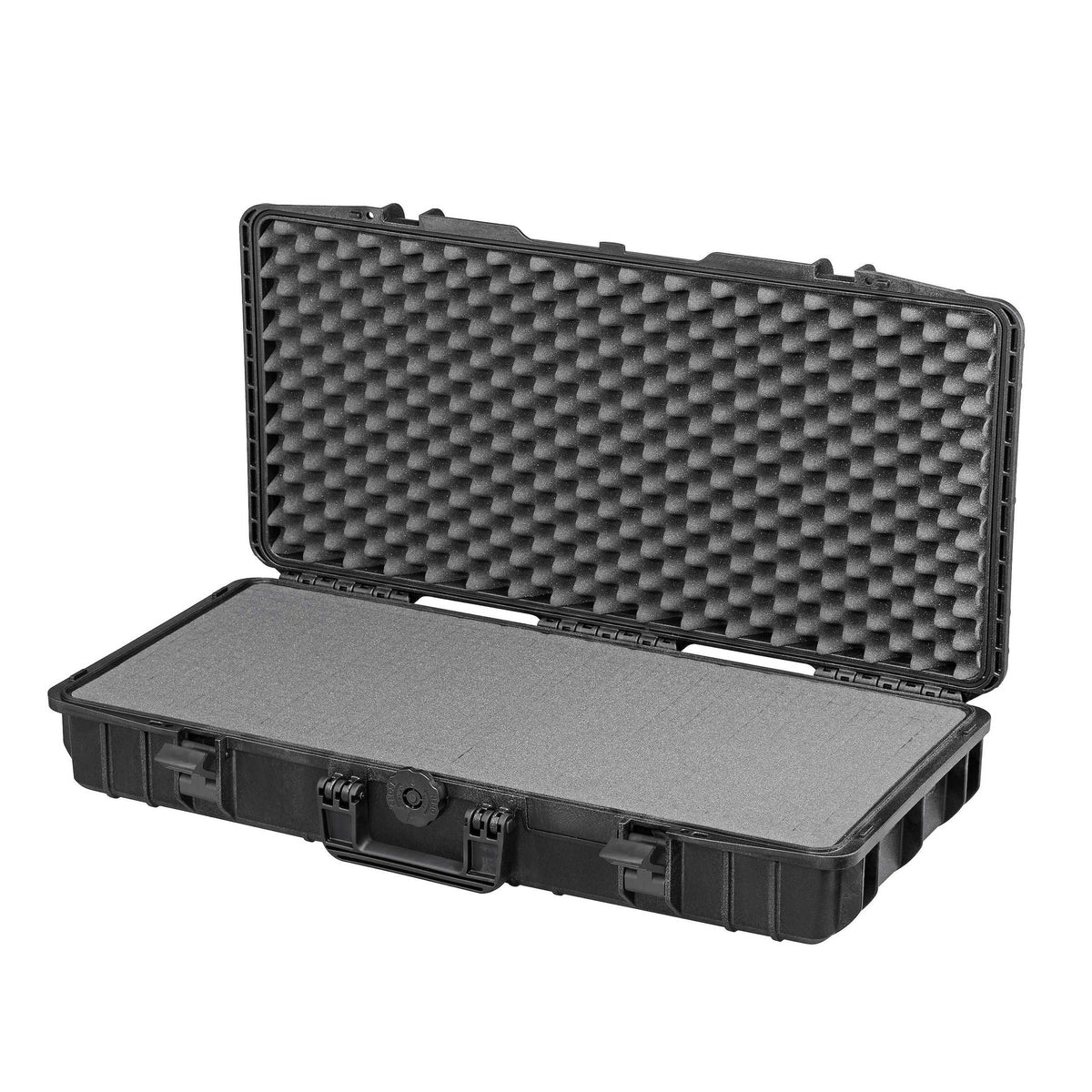

Panaro MAX800S long black waterproof case open with grey cubed foam in the base and convoluted foam in the lid

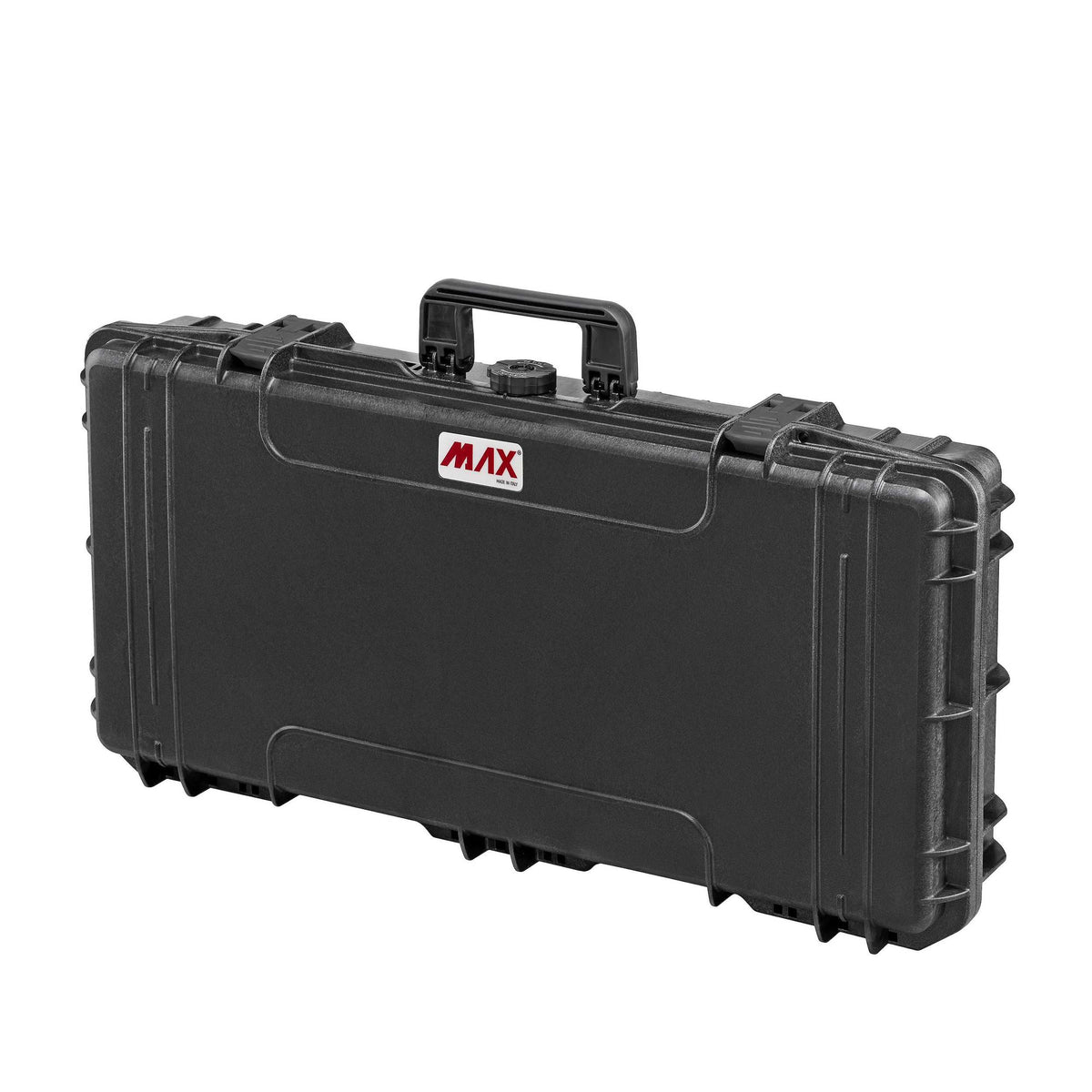

Panaro MAX800 long black waterproof case closed at an angle with carry handle, latches and MAX logo

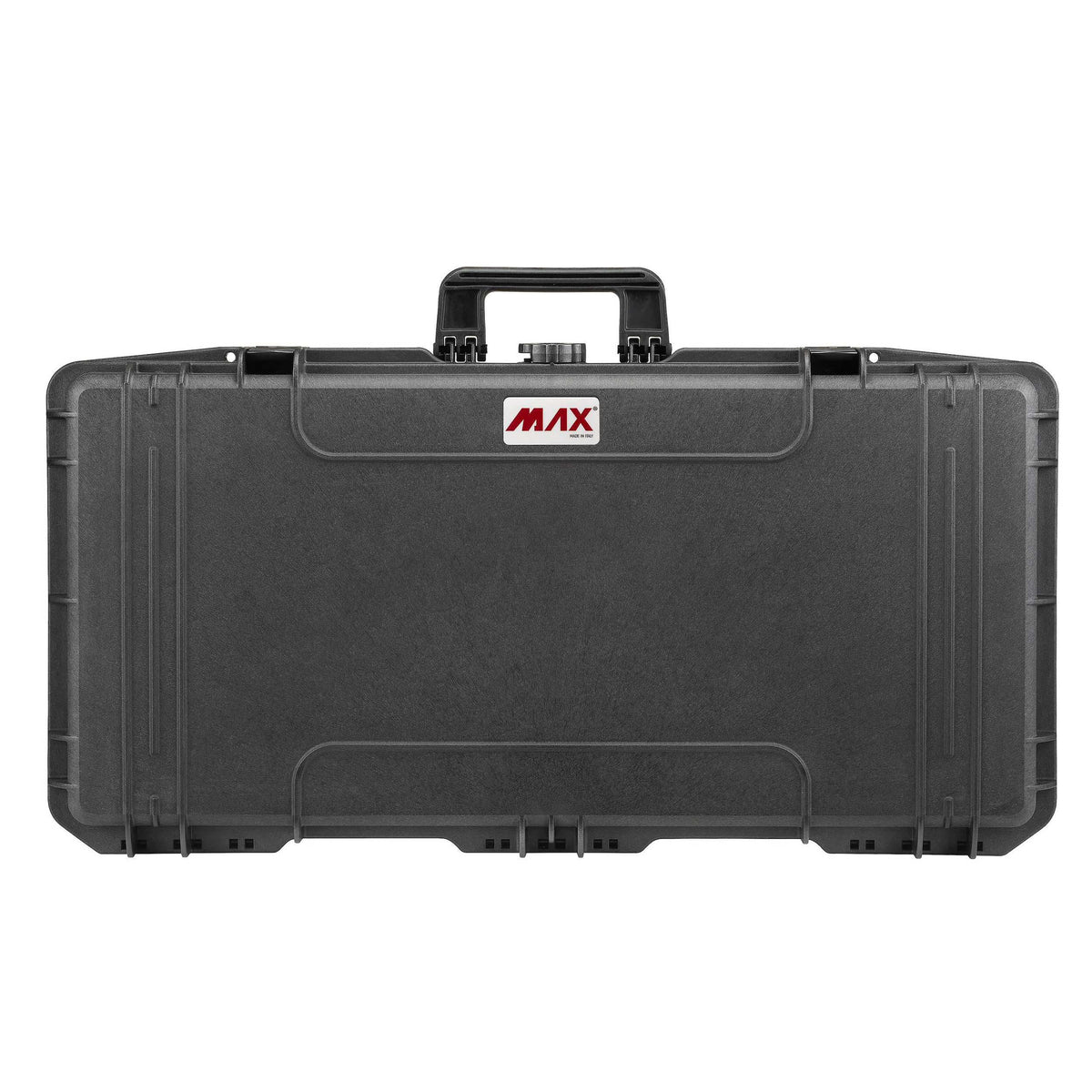

Panaro MAX800 lid view with the soft grip carry handle and red MAX logo

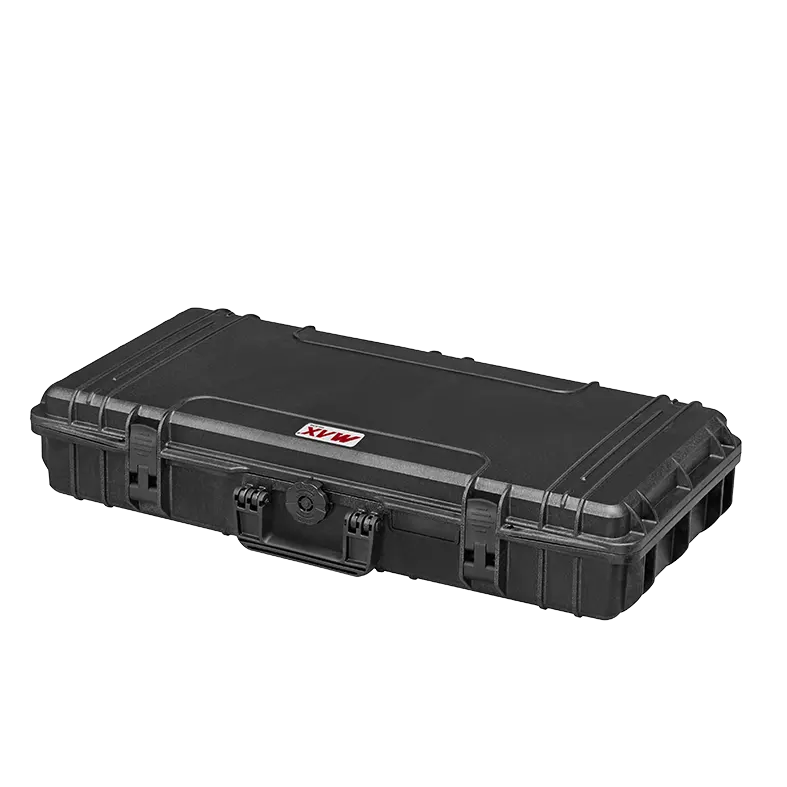

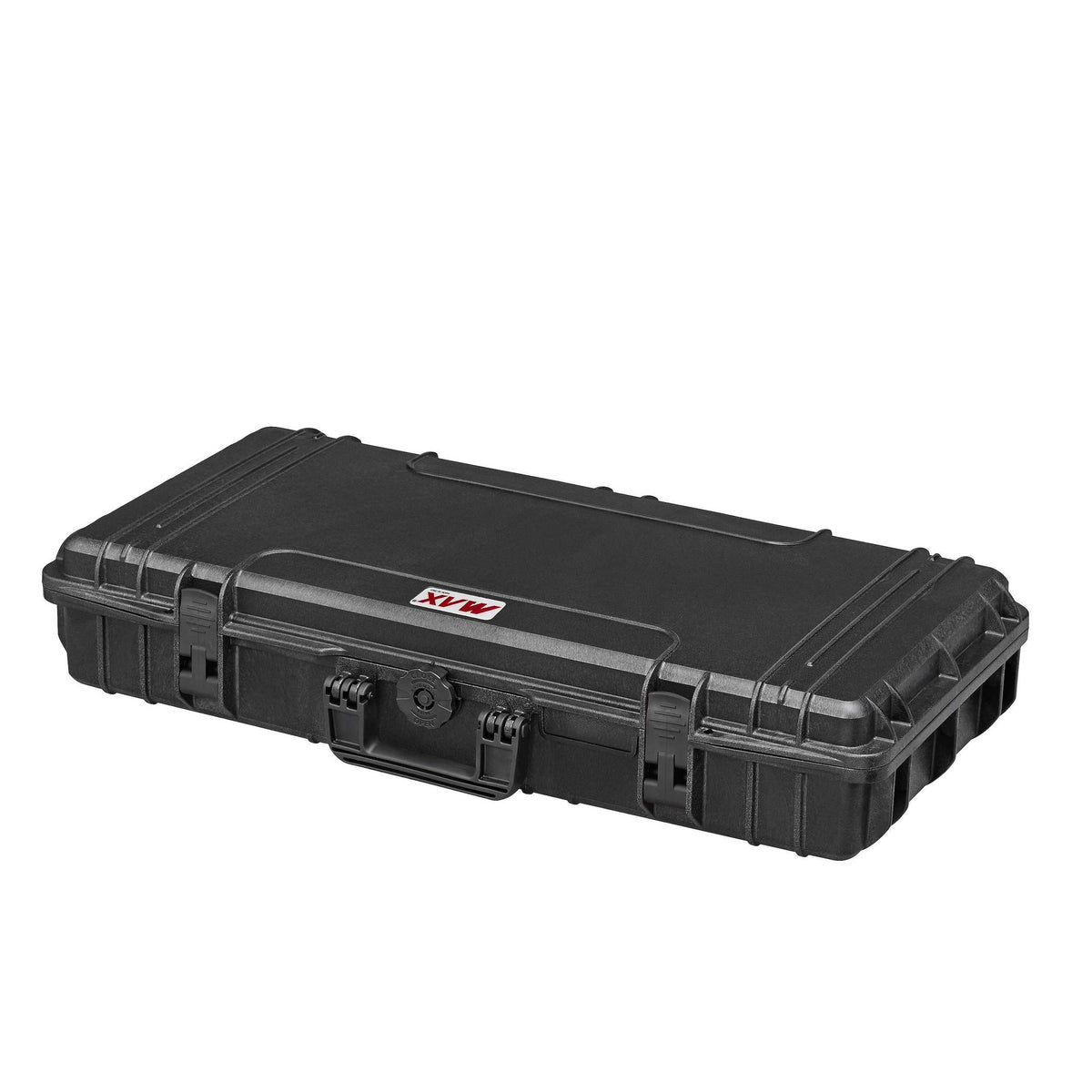

Panaro MAX800 lying flat, showing latches and the revolving lock beside the handle

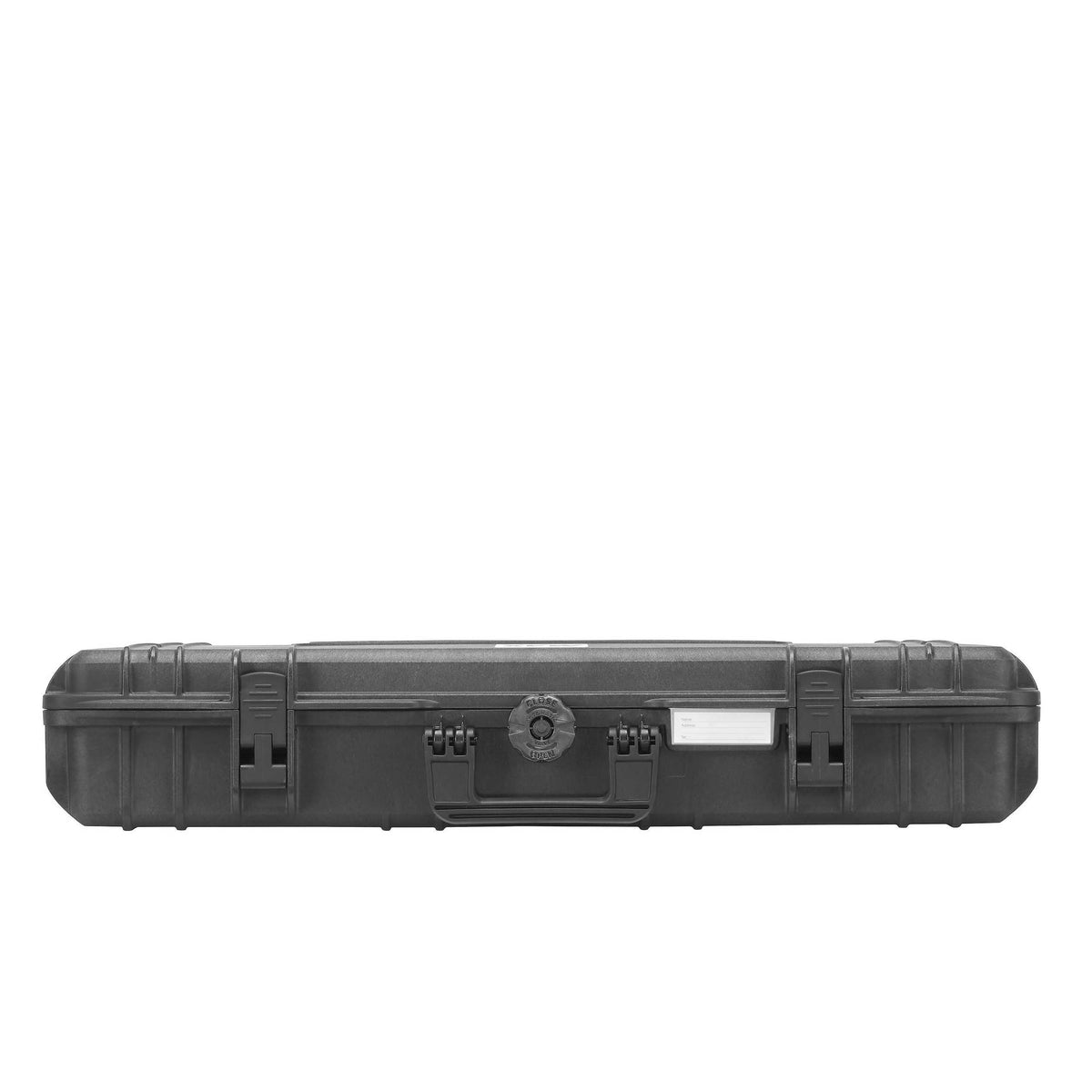

Side view of the Panaro MAX800 with latches, lock and label window
Panaro MAX800S long black waterproof case open with grey cubed foam in the base and convoluted foam in the lid
Panaro MAX800 long black waterproof case closed at an angle with carry handle, latches and MAX logo
Panaro MAX800 lid view with the soft grip carry handle and red MAX logo
Panaro MAX800 lying flat, showing latches and the revolving lock beside the handle
Side view of the Panaro MAX800 with latches, lock and label window
Panaro MAX800S long black waterproof case open with grey cubed foam in the base and convoluted foam in the lid
Panaro MAX800 long black waterproof case closed at an angle with carry handle, latches and MAX logo
Panaro MAX800 lid view with the soft grip carry handle and red MAX logo
Panaro MAX800 lying flat, showing latches and the revolving lock beside the handle
Side view of the Panaro MAX800 with latches, lock and label window
Panaro

Panaro MAX800S Waterproof Case with Cubed Foam Black

$530.09
$530.09
RRP $565.05
Or 4 payments of $132.52 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX800S

Pluck-to-Shape Foam in a Long, Low MAX800

The Panaro MAX800S is the long MAX800 with Panaro's standard cubed foam, a tidy home for flat, lengthy kit you want held in exact cut-outs: a carbon tripod, a pair of microphones on stands, or a set of drill bits and long drivers.

Panaro's foam sheet lists a 15 mm base layer and two 40 mm cubed layers, while the lid takes a 45 mm convoluted pad. Pluck along the grid to the depth you need. With foam fitted Panaro put the weight at 5.74 kg, light enough to carry by the handle or a shoulder strap.

Certificates for the MAX800 cover ATA 300 Category 1 and IP67, with STANAG 4280 and MIL-STD-810H test results. The inside measures 800 x 370 x 140 mm. A revolving lock, double throw latches, padlock holes and an automatic pressure release valve are part of the shell. Made in Italy.

Other MAX800 foam types are in Panaro; for more shapes see protective cases and defence and tactical.

Often ordered together

  • Cubed foam: 15 mm base, two 40 mm layers
  • 45 mm convoluted foam in the lid
  • 5.74 kg with foam
  • ATA 300 Cat. 1 certificate
  • IP67 and MIL-STD-810H papers
  • Strap holes, padlock holes and revolving lock
  • Carbon tripods and monopods
  • Microphones with folding stands
  • Long drill bits and drivers
  • Slim test probes and leads
  • Flat panels and small monitors

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro

Range: MAX Cases

MPN: MAX800S

Mega Code: PMMAX800S

Configuration: Cubed foam (S)

Internal Dimensions: 800 x 370 x 140 mm

External Dimensions: 850 x 440 x 158 mm

Lid and Base Depth: 45 mm lid + 95 mm base

Capacity: 41.44 litres

Weight: 5.74 kg with foam (Panaro)

Certifications (Panaro): IP67, STANAG 4280 / DEF STAN 81-41, MIL-STD-810H, ATA 300 Cat. 1

Materials: Polypropylene shell, nylon latches, polymer O-ring, polyurethane foam

Temperature Range (Panaro datasheet): -51 to 90 C

Made In: Italy (Panaro)

Colour: Black

EAN: 8011236800304

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

Standard cubed pick and pluck foam in two 40 mm layers over a 15 mm base, and 45 mm of convoluted foam in the lid.
S for fixed pockets at the lowest weight, HDS for heavier items in denser foam, GPB for convoluted foam top and bottom with no cutting, or the plain MAX800 empty.
Panaro give 5.74 kg for the MAX800S with its foam.
Panaro publish an ATA 300 Category 1 certificate for the MAX800. Airline size and weight rules still apply: it is 850 x 440 x 158 mm outside.
On this page: the MAX800 drawing and datasheet, its certificates for IP67, ATA 300 and MIL-STD-810H, report 171023A and a fungus and fluid sheet.
