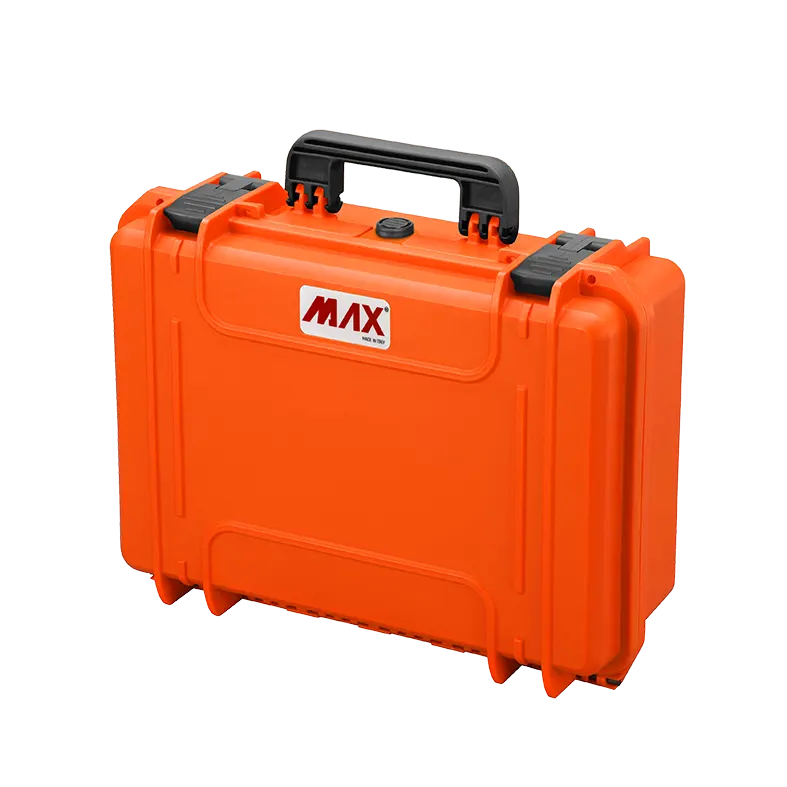

Orange Panaro MAX430 waterproof case closed, three quarter view with black handle, black latches and red MAX logo

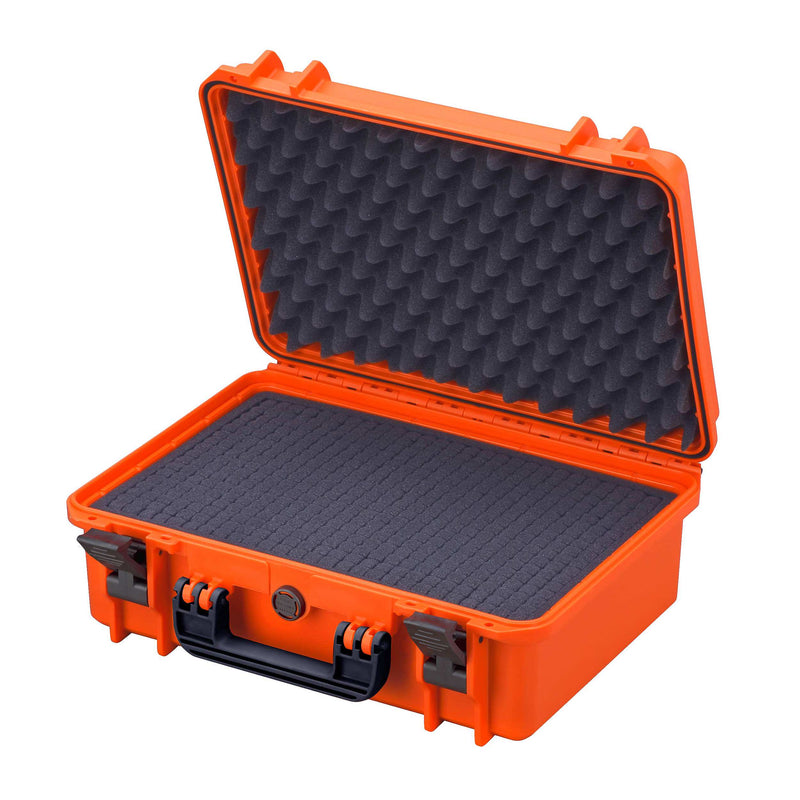

Orange MAX430S open with dark cubed pick and pluck foam in the base and convoluted foam lining the lid

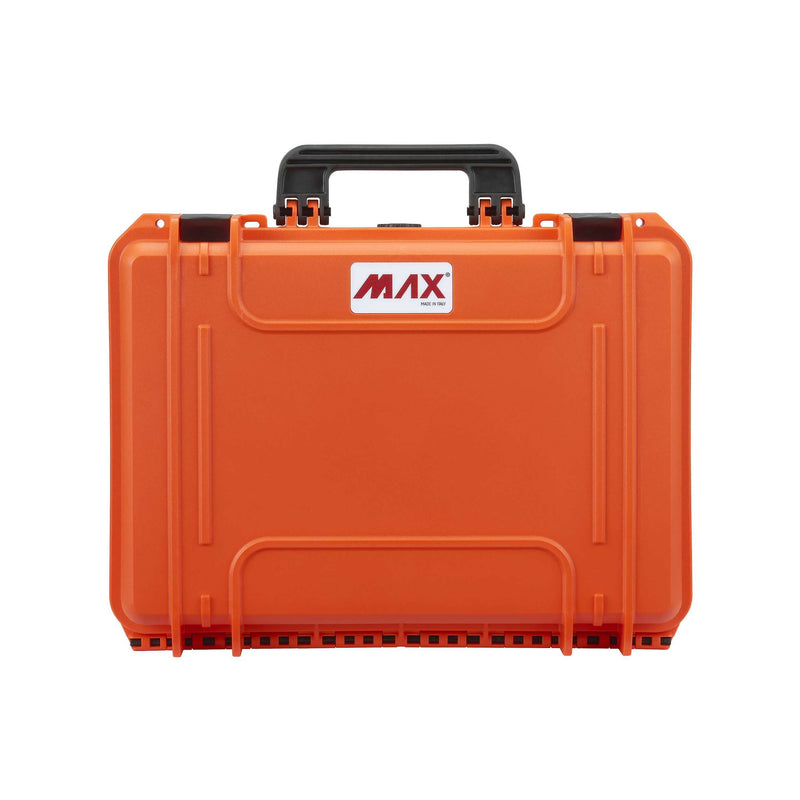

Front view of the orange MAX430 lid with moulded panel, carry handle and MAX badge
Orange MAX430 standing on its side, angled to show the hinge side and the depth of the shell
Orange Panaro MAX430 waterproof case closed, three quarter view with black handle, black latches and red MAX logo
Orange MAX430S open with dark cubed pick and pluck foam in the base and convoluted foam lining the lid
Front view of the orange MAX430 lid with moulded panel, carry handle and MAX badge
Orange MAX430 standing on its side, angled to show the hinge side and the depth of the shell
Orange Panaro MAX430 waterproof case closed, three quarter view with black handle, black latches and red MAX logo
Orange MAX430S open with dark cubed pick and pluck foam in the base and convoluted foam lining the lid
Front view of the orange MAX430 lid with moulded panel, carry handle and MAX badge
Orange MAX430 standing on its side, angled to show the hinge side and the depth of the shell
Panaro

Panaro MAX430S Waterproof Case with Cubed Foam Orange

$239.03
$239.03
RRP $251.67
Or 4 payments of $59.76 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PMMAX430S-ORANGE

MAX430S in Orange: Foam Fitted and Easy to Spot

An orange MAX430 shell with cubed pick and pluck foam below and a convoluted pad above, for kit that has to be found quickly on a boat deck, a work site or in a crowded vehicle.

Bright orange stands out against water, grass and grey equipment piles, which is why marine, rescue and field teams often colour code their cases. Interior space is 426 x 290 x 159 mm. Panaro line the base with 20 mm of flat foam, add two 40 mm cubed sheets you pluck to shape, and fit 45 mm of convoluted foam to the lid to hold the load down.

Outside, the case measures 464 x 366 x 176 mm. The two double throw latches, made of nylon, draw the lid down onto its O-ring seal, and an automatic valve evens out pressure after altitude or temperature changes. For this shell Panaro supply test paperwork covering IP67 sealing, ATA 300 Cat. 1 air transport, MIL-STD-810H and the STANAG 4280 / DEF STAN 81-41 protocols; download it below. Made in Italy, per Panaro.

Compare other Panaro cases or look through medical and first aid and hard protective cases.

Often ordered together

  • High visibility orange shell
  • Two pluckable 40 mm cube sheets
  • Convoluted 45 mm lid foam holds the load
  • O-ring seal and pressure valve
  • ATA 300 Cat. 1 listed for air transport
  • Made in Italy
  • Marine and boating equipment
  • Rescue and emergency response kits
  • Field instruments on busy sites
  • Colour coded equipment stores
  • Outdoor photography

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Panaro, MAX Cases range

MPN: MAX430S

Mega Code: PMMAX430S-ORANGE

Configuration: S, cubed foam (pick and pluck) with convoluted lid foam

Colour: Orange

Internal Dimensions: 426 x 290 x 159 mm (lid 45 + base 114 mm)

External Dimensions: 464 x 366 x 176 mm

Capacity: 19.64 L

Weight: 3.06 kg (Panaro datasheet); 3 kg on the product page

Materials: Polypropylene shell, nylon latches, polymer O-ring, polyurethane foam

Certificates: IP67, STANAG 4280 / DEF STAN 81-41, MIL-STD-810H, ATA 300 Cat. 1 (per Panaro)

Foam: 20 mm base, 2 x 40 mm cubed, 45 mm convoluted lid (Panaro)

Made In: Italy (per Panaro)

Unit: Each

EAN: 8011236430143

Downloads

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

Colour is the only difference from the black MAX430S. Orange is easier to see at a distance and in poor light, so it suits boats, rescue gear and shared stores where a case needs to be picked out fast.
Panaro give the lid as 45 mm deep and the base as 114 mm, for 159 mm of internal height.
Yes. Panaro sell a cubed foam kit as a MAX430 accessory, and they offer custom cut foam on request.
No. ATA 300 Cat. 1 is the air transport packaging standard Panaro list for this case. Carriers set their own cabin size limits, so check with yours.
