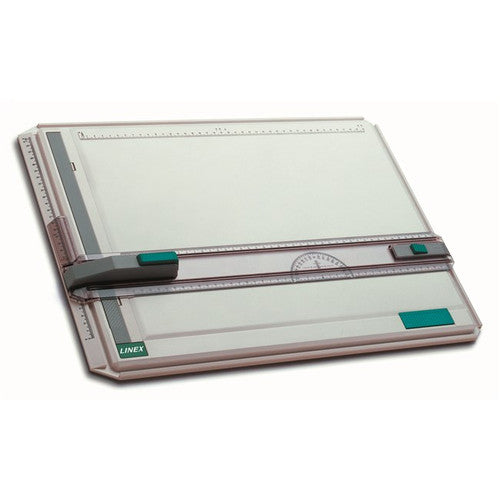

Linex DBR3045 A3 drawing board in white with a grey straightedge, teal grip and protractor, angled view
Linex DBR3045 A3 drawing board in white seen from the front, with the straightedge and protractor near the lower edge
Linex DBR3045 A3 drawing board in white with labelled callouts naming the underside, grip, protractor and clamping rail
Linex DBR3045 A3 drawing board in white with a grey straightedge, teal grip and protractor, angled view
Linex DBR3045 A3 drawing board in white seen from the front, with the straightedge and protractor near the lower edge
Linex DBR3045 A3 drawing board in white with labelled callouts naming the underside, grip, protractor and clamping rail
Linex DBR3045 A3 drawing board in white with a grey straightedge, teal grip and protractor, angled view
Linex DBR3045 A3 drawing board in white seen from the front, with the straightedge and protractor near the lower edge
Linex DBR3045 A3 drawing board in white with labelled callouts naming the underside, grip, protractor and clamping rail
Linex

Linex A3 Drawing Board 3045 White

Regular price
$231.68 inc GST
Sale price
$231.68 inc GST
Regular price
RRP $255.64
Or 4 payments of $57.92 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: BH100411047

UPC: 5701221497000

MPN: 100411047

Linex DBR3045 A3 Drawing Board, White

Linex catalogues this A3 drawing board as the DBR3045, item 100411047, and lists a magnetic clamping rail, a stop-and-go mechanism and a protractor with inverse scale among its features.

Linex describes the DBR3045 as a quality A3 board for professional use, and Hamelin Brands names architects, artists, designers and builders as the people it suits. For setting up a sheet, Linex lists markings for format and paper margin, holes for control of the paper margin, an upper edge scale and a compass plotting scale. Linex supplies the board in a cardboard carrying case.

Per Linex, the straightedge moves on profiles along all 4 sides and comes with an ergonomic grip, a stop-and-go mechanism and an additional locking facility. Linex also lists the L system for full use of the upper edge of the ruler, impact-proof board material, anti-slip protection and an additional corner clamp.

Hamelin Brands sells a separate Linex drawing bag that it lists to suit the 3045 board. Clamps and other boards are listed under drawing boards, while scale rulers, geometry and technical drawing and the Linex collection carry related tools.

  • Linex DBR3045 A3 drawing board, item 100411047
  • Per Linex, a magnetic clamping rail with holes for control of the paper margin
  • Linex lists a stop-and-go mechanism, an ergonomic grip and an additional locking facility
  • Linex lists a protractor with inverse scale, a compass plotting scale and an upper edge scale
  • Markings for format and paper margin, as listed by Linex
  • Linex lists anti-slip protection and an additional corner clamp
  • Supplied in a cardboard carrying case, per Linex
  • Technical drawing and drafting on A3 sheets
  • Architectural and building plans
  • Design and art studio layouts
  • Drafting classes at school, TAFE and university
  • Compass work set out with the compass plotting scale

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Linex

Linex model: DBR3045

Linex item number: 100411047

Format: A3

Colour per Hamelin Brands: White

Ruler system per Linex: Magnetic clamping rail, stop-and-go mechanism and additional locking facility

Scales per Linex: Compass plotting scale, upper edge scale, protractor with inverse scale

Paper guides per Linex: Markings for format and paper margin, holes for control of paper margin

Board material per Linex: Impact-proof

Underside per Linex: Anti-slip protection

Extras per Linex: Additional corner clamp

Supplied per Linex: Cardboard carrying case

Unit dimensions per Linex: 51.5 x 38 x 5 cm

Unit weight per Linex: 1315 g

FAQs

Linex says the board comes in a cardboard carrying case. The Linex drawing bag, item 100852132, is a separate Hamelin Brands product that Hamelin Brands lists to suit the 3045 board.
Hamelin Brands lists the colour of item 100411047 as White. Linex records the colour as unspecified on its own product page.
Linex lists a magnetic clamping rail and an additional corner clamp on the DBR3045. Linex DBC 4 clamps, item 100412146, are sold separately for holding paper on drawing boards.
Linex lists unit dimensions of 51.5 x 38 x 5 cm (length x width x height) and a unit weight of 1315 g. Linex describes the board itself as A3 size.
