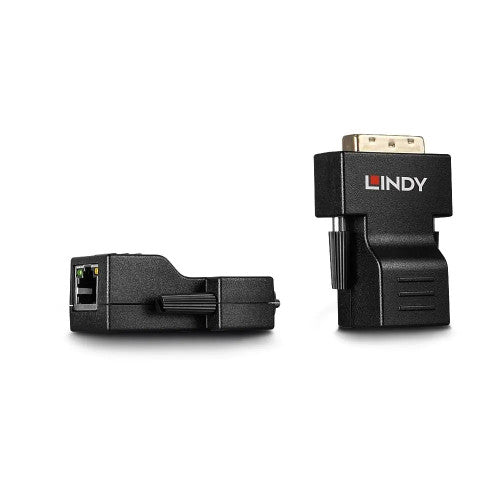

Lindy 70m Cat6 DVI-D Single Link Extender transmitter and receiver, one showing its RJ45 port and the other its DVI-D plug
Lindy Cat6 DVI-D Single Link Extender transmitter and receiver plugged into each end of a black network patch cable

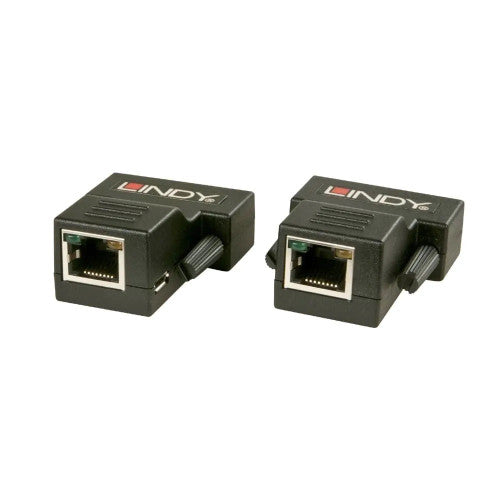

Lindy 70m Cat6 DVI-D Single Link Extender pair viewed from the RJ45 socket side, both units in black with Lindy branding

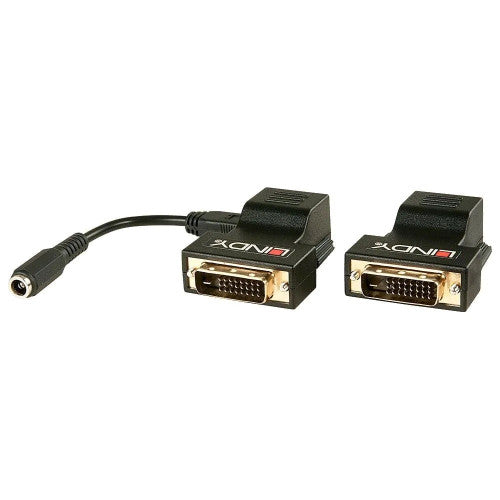

Lindy Cat6 DVI-D Single Link Extender units showing gold DVI-D plugs, one fitted with a short power lead
Lindy 70m Cat6 DVI-D Single Link Extender transmitter and receiver side by side, showing their gold DVI-D plugs
Lindy 70m Cat6 DVI-D Single Link Extender transmitter and receiver, one showing its RJ45 port and the other its DVI-D plug
Lindy Cat6 DVI-D Single Link Extender transmitter and receiver plugged into each end of a black network patch cable
Lindy 70m Cat6 DVI-D Single Link Extender pair viewed from the RJ45 socket side, both units in black with Lindy branding
Lindy Cat6 DVI-D Single Link Extender units showing gold DVI-D plugs, one fitted with a short power lead
Lindy 70m Cat6 DVI-D Single Link Extender transmitter and receiver side by side, showing their gold DVI-D plugs
Lindy 70m Cat6 DVI-D Single Link Extender transmitter and receiver, one showing its RJ45 port and the other its DVI-D plug
Lindy Cat6 DVI-D Single Link Extender transmitter and receiver plugged into each end of a black network patch cable
Lindy 70m Cat6 DVI-D Single Link Extender pair viewed from the RJ45 socket side, both units in black with Lindy branding
Lindy Cat6 DVI-D Single Link Extender units showing gold DVI-D plugs, one fitted with a short power lead
Lindy 70m Cat6 DVI-D Single Link Extender transmitter and receiver side by side, showing their gold DVI-D plugs
Lindy

Lindy 70m Cat6 DVI-D Single Link Extender

Regular price
$205.81
Sale price
$205.81
Regular price
RRP $205.81
Or 4 payments of $51.45 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: DS38300

UPC: 4002888383004

MPN: 38300

DVI-D single link extension over one Cat6 cable

A compact transmitter and receiver pair that carries DVI-D single link video over one Cat5e or Cat6 cable.

The Lindy 70m Cat6 DVI-D Single Link Extender links a DVI source to a DVI display through a single Cat5e or Cat6 cable, using slim RJ45 connectors in place of bulky DVI leads. Distance depends on resolution: 70m at 800x600, 65m at 1024x768, and 50m from 1280x1024 up to 1920x1200. Both units have plastic housings measuring 55x40x22mm.

Reference Lindy 38300 or our code DS38300 on your order. Supplied are the transmitter, receiver, a USB Micro-B to DC adapter cable and a Lindy manual; the Cat5e or Cat6 patch cable is sold separately. Normal use needs no external power, though the transmitter accepts it when a graphics card supplies too little. Lindy backs it with a 2 year warranty.

The slim RJ45 connectors allow flexibility not possible with larger DVI connectors and cables. For more video extension hardware see Cable Extenders and Cable Extenders & Converters, or browse Cables & Networking for patch leads.

  • DVI-D single link over one Cat5e or Cat6 cable
  • Up to 1920x1200@60Hz
  • 70m at 800x600, 50m at 1920x1200
  • Compact plug-on transmitter and receiver
  • Optional power via USB Micro-B socket
  • USB Micro-B to DC adapter cable included
  • DVI sources to remote DVI displays
  • Runs where DVI cables are too bulky
  • 1920x1200 displays up to 50m away
  • Lower resolution displays up to 70m away

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Lindy

Product Code: DS38300

Lindy Part No.: 38300

Interface Standard: DVI-D 1.1 (Single Link)

Supported Bandwidth: 4.95Gbps

Maximum Resolution: 1920x1200@60Hz

Maximum Distance: 70m at 800x600, 50m at 1920x1200

Transmission Medium: 1 x Cat5e or Cat6

Connectors: DVI-D male to RJ45 female, both units

Power: USB Micro-B socket, 5VDC

Dimensions (WxDxH): 55x40x22mm per unit

Housing Material: Plastic

Colour: Black

Warranty: 2 years

FAQs

One Lindy 70m Cat6 DVI-D Single Link Extender, Lindy part 38300, sold as one unit. In the box: transmitter unit, receiver unit, a USB Micro-B to DC adapter cable and a Lindy manual.
No. One Cat5e or Cat6 UTP patch cable is required and sold separately.
Normal operation needs no external power. The transmitter accepts power through USB Micro-B if the graphics card supplies too little.
Lindy quotes 50m for resolutions from 1280x1024 up to 1920x1200.
