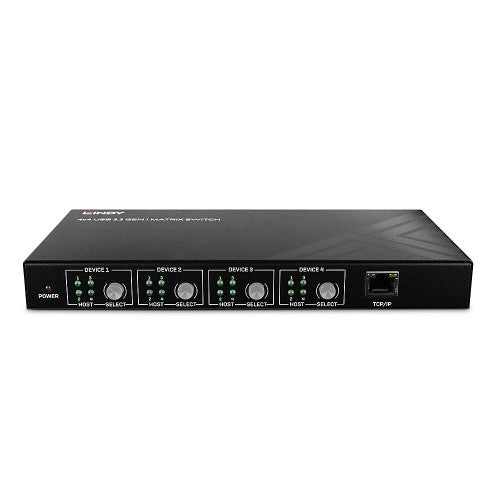

Lindy 4x4 USB 3.2 Gen 1 Matrix Switch, angled front view of the black metal unit with device buttons and RJ-45 port

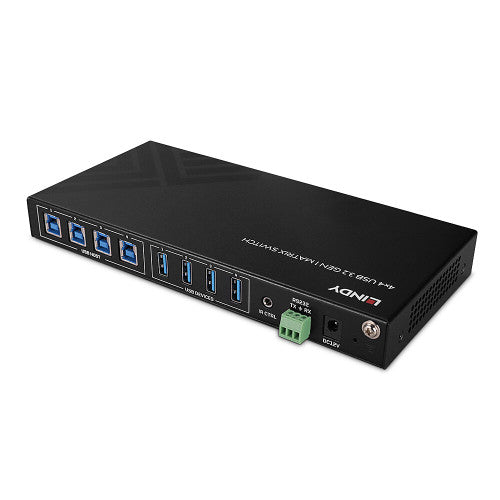

Angled rear view of the Lindy 4x4 USB 3.2 Gen 1 Matrix Switch with four blue USB Type B and four USB Type A ports
Straight-on front panel of the Lindy 4x4 USB 3.2 Gen 1 Matrix Switch with four device groups of select buttons and LEDs
Straight-on rear panel of the Lindy 4x4 USB 3.2 Gen 1 Matrix Switch with USB host and device ports and green terminal block

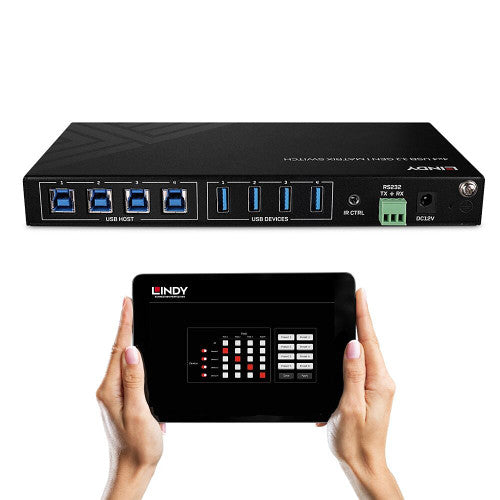

Lindy 4x4 USB 3.2 Gen 1 Matrix Switch rear panel above a tablet held in two hands showing the web control screen
Lindy 4x4 USB 3.2 Gen 1 Matrix Switch, angled front view of the black metal unit with device buttons and RJ-45 port
Angled rear view of the Lindy 4x4 USB 3.2 Gen 1 Matrix Switch with four blue USB Type B and four USB Type A ports
Straight-on front panel of the Lindy 4x4 USB 3.2 Gen 1 Matrix Switch with four device groups of select buttons and LEDs
Straight-on rear panel of the Lindy 4x4 USB 3.2 Gen 1 Matrix Switch with USB host and device ports and green terminal block
Lindy 4x4 USB 3.2 Gen 1 Matrix Switch rear panel above a tablet held in two hands showing the web control screen
Lindy 4x4 USB 3.2 Gen 1 Matrix Switch, angled front view of the black metal unit with device buttons and RJ-45 port
Angled rear view of the Lindy 4x4 USB 3.2 Gen 1 Matrix Switch with four blue USB Type B and four USB Type A ports
Straight-on front panel of the Lindy 4x4 USB 3.2 Gen 1 Matrix Switch with four device groups of select buttons and LEDs
Straight-on rear panel of the Lindy 4x4 USB 3.2 Gen 1 Matrix Switch with USB host and device ports and green terminal block
Lindy 4x4 USB 3.2 Gen 1 Matrix Switch rear panel above a tablet held in two hands showing the web control screen
Lindy

Lindy 4x4 USB 3.2 Gen 1 Matrix Switch

Regular price
$1,024.87
Sale price
$1,024.87
Regular price
RRP $1,024.87
Or 4 payments of $256.22 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: DS43406

UPC: 4002888434065

MPN: 43406

4x4 USB 3.2 Gen 1 matrix switch with web and RS-232 control

A Lindy matrix switch that shares up to 4 USB devices between up to 4 host computers at up to 5Gbps.

The Lindy USB 3.2 Gen 1 Matrix Switch shares up to 4 USB devices with up to 4 hosts in many combinations. Routing is set with the front panel buttons, a web GUI over TCP/IP or RS-232 commands. Up to 8 preset configurations can be saved, and hosts and devices can be renamed. It supports USB 3.2 Gen 1 at up to 5Gbps, plus USB 2.0 and USB 1.1 devices.

Quote Lindy part 43406 or our code DS43406 when ordering. The box holds the matrix switch, 4 x USB 3.2 Gen 1 Type A-B cables (1.2m), a multi-country power supply (UK, EU, US and AUS) and a Lindy manual. It is plug and play with no software required. Lindy backs it with a 2 year warranty.

This switch sits in Switches & KVM. For USB leads browse Cables & Networking, or see Office Technology Supplies for more office gear and LINDY for the full Lindy range we carry.

  • Shares up to 4 USB devices with up to 4 hosts
  • USB 3.2 Gen 1 at up to 5Gbps
  • Button, web GUI and RS-232 control
  • Saves up to 8 presets
  • 900mA on each USB Type A port
  • Plug and play, no software required
  • Metal housing
  • Sharing printers between office PCs
  • Shared storage devices
  • Webcams in conference room presentation systems
  • KVM applications
  • Industrial applications

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Lindy

Product Code: DS43406

Lindy Part No.: 43406

USB Standard: USB 3.2 Gen 1, 5Gbps

Host Inputs: 4 x USB 3.0 Type B

Device Outputs: 4 x USB Type A

Control Ports: RJ-45, RS-232 3-pin terminal block

Chipset: AT32F437 + VL817

Power Delivery: 900mA per USB Type A port

Power: 12V 3A, 5.5/2.5mm

Dimensions (WxDxH): 221x105x26mm

Housing: Metal

Net Weight: 1.15kg

Colour: Black

Warranty: 2 years

FAQs

Up to 4 USB devices shared with up to 4 hosts.
With the front panel buttons, a web GUI over TCP/IP or RS-232 commands.
Yes. Up to 8 preset configurations can be saved.
No. It is plug and play with no software required.
Yes. Four USB 3.2 Gen 1 Type A-B cables, 1.2m long, are included.
Lindy backs it with a 2 year warranty.
