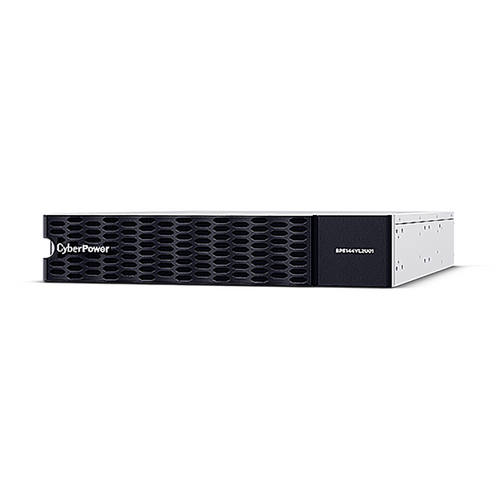

CyberPower BPE144VL2U01 Extended Battery Module front view showing metal enclosure
CyberPower EBM 144VDC rack-mounted configuration for data centre use
CyberPower BPE144VL2U01 DC plug-and-play power connectors detail
CyberPower Extended Battery Module tower configuration side view
CyberPower BPE144VL2U01 Extended Battery Module front view showing metal enclosure
CyberPower EBM 144VDC rack-mounted configuration for data centre use
CyberPower BPE144VL2U01 DC plug-and-play power connectors detail
CyberPower Extended Battery Module tower configuration side view
CyberPower BPE144VL2U01 Extended Battery Module front view showing metal enclosure
CyberPower EBM 144VDC rack-mounted configuration for data centre use
CyberPower BPE144VL2U01 DC plug-and-play power connectors detail
CyberPower Extended Battery Module tower configuration side view
CyberPower

CyberPower BPE144VL2U01 Extended Battery Module 144VDC 55A

Regular price
$3,769.34
Sale price
$3,769.34
Regular price
RRP
Or 4 payments of $942.34 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: DSBPE144VL2U01

UPC: 4712364143274

MPN: BPE144VL2U01

144Vdc Battery Module for Online High-Density UPS

The CyberPower BPE144VL2U01 is a 144Vdc extended battery module that adds runtime to a compatible CyberPower UPS, holding 12 sealed lead-acid 12V 9Ah batteries in a 2U rack/tower convertible metal enclosure.

CyberPower Australia's product page lists it as the extended battery module for CyberPower's Online (High-Density) UPS series. It has a built-in charger, so modules charge directly from utility power without relying on the UPS, with a typical recharge time of 4 hours. Two RBP0145 cartridges are included, and the batteries are user-replaceable and hot-swappable.

DC plug-and-play connectors let further modules be added as runtime needs grow, and charging each one from the mains cuts total charging time across several modules. Hot-swappable packs mean batteries can be changed without interrupting connected loads or scheduling downtime.

Pair it with the matching UPS from our uninterruptible power supplies range, connect the rack with power cables, and see the full CyberPower range of UPS units and battery modules.

  • 144Vdc output, 55A rated current
  • 12 x 12V 9Ah sealed lead-acid batteries in 2 RBP0145 cartridges
  • Built-in charger, typical recharge 4 hours
  • Hot-swappable, user-replaceable batteries
  • DC plug-and-play connectors for adding modules
  • 2U rack/tower convertible metal enclosure
  • Extending runtime on Online High-Density UPS systems
  • Data centre and server room power
  • Critical network and storage equipment
  • Sites with long or frequent outages
  • Planned growth in UPS runtime

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: CyberPower

CyberPower Model: BPE144VL2U01

Nominal Output Voltage: 144Vdc

Rated Output Current: 55A

Batteries: 12 x 12V 9Ah sealed lead-acid

Built-in Charger: Yes, typical recharge 4 hours

Battery Cartridges: 2 x RBP0145 (included), hot-swappable

Enclosure: Metal, silver, with rackmount rails and ears

Certifications: CE, BSMI, EAC, RCM, RoHS

Form Factor: Rackmount or tower, 2U

Dimensions (W x H x D): 433 x 86.5 x 720mm

Weight: 44kg net (53.1kg shipping)

Warranty: 2 years product, 2 years battery, per CyberPower Australia

FAQs

One CyberPower BPE144VL2U01 extended battery module with two RBP0145 battery cartridges included (12 x 12V 9Ah sealed lead-acid batteries in total). CyberPower lists rackmount rails and ears for the module.
CyberPower Australia lists it as the extended battery module for its Online (High-Density) UPS series. Check the UPS model's specification before ordering.
Yes. CyberPower lists it as expansion ready, with DC plug-and-play connectors for adding multiple modules.
CyberPower Australia's product page lists a 2 year product warranty and a 2 year battery warranty.
