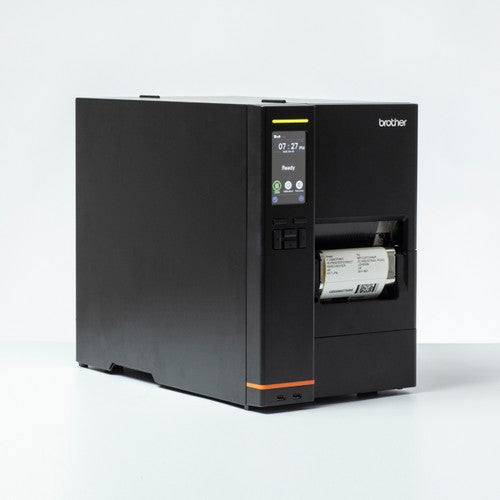

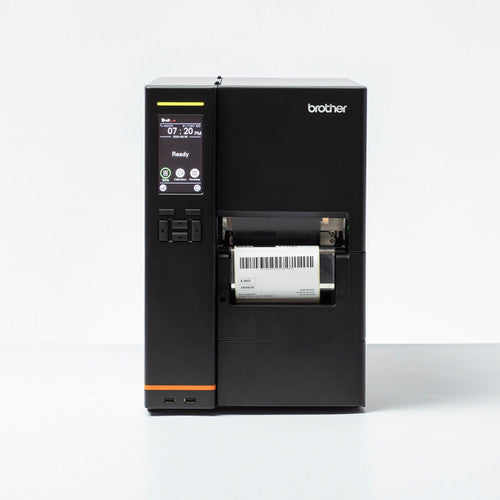

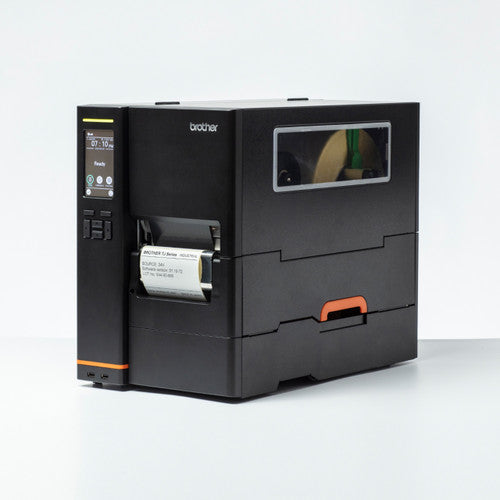

Brother TJ-4522TNWB Titan Industrial Printer with Wi-Fi and Bluetooth

Regular price
$3,965.50
Sale price
$3,965.50
Regular price
RRP $4,014.23
Or 4 payments of $991.38 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: SLTJ-4522TNWB

UPC: 9312775005458

MPN: TJ-4522TNWB

Wireless Industrial Printing On The Titan Platform

The Brother TJ-4522TNWB is the TJ-4522TN platform supplied with Brother's Wi-Fi and Bluetooth module, part PA-WB-001 included. It is a 300dpi Titan industrial printer running up to 305 mm per second.

It runs both thermal transfer and direct thermal, taking ribbon 20mm to 114mm wide up to 600m long in wax, resin or a wax and resin mix, wound inside or outside. Roll width runs 20mm to 120mm. Maximum print length is 11,430mm. An internal rewinder is built in, which no other Titan carries. The control panel is a colour touch display with a status LED.

Emulation is FBPL-EZD, compatible with FBPL II, EPL II, ZPL II and DPL, so it can usually take label data from a system already driving another brand. The module ships with the printer rather than being bought separately, and the wired interfaces stay available alongside it: Ethernet, RS-232C serial and USB.

Brother publishes no separate specification for this variant at all. Every figure above is the TJ-4522TN platform's, and the hardware it ships with is quoted from Brother's own accessory listing. Ask us for ribbon and media to suit. Our label supplies and the wider labelling machine range are linked here.

Connectivity on this model

  • USB 2.0 Full Speed Type B
  • RS-232C serial
  • 10/100 wired Ethernet
  • Wi-Fi and Bluetooth, from the fitted PA-WB-001 module
  • Genuine Brother TJ-4522TNWB Titan series industrial label printer
  • 300dpi, up to 305 mm per second, printing up to 104mm wide
  • Thermal transfer or direct thermal, ribbon 20mm to 114mm wide up to 600m long
  • Supplied with Brother's Wi-Fi and Bluetooth module, part PA-WB-001 included
  • Wi-Fi and Bluetooth, plus wired Ethernet, RS-232C serial and USB
  • Internal rewinder built in, the only Titan model with one
  • Emulation: FBPL-EZD, compatible with FBPL II, EPL II, ZPL II and DPL
  • High volume warehouse and distribution centre labelling
  • Manufacturing work-in-progress and compliance labels
  • Pallet, carton and outer case barcode labels
  • Third party logistics and despatch operations
  • Replacing an EPL, ZPL or DPL industrial printer without rewriting label data
  • Print and rewind runs where labels are applied later by machine

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Model: TJ-4522TNWB

Platform: TJ-4522TN. Brother publishes no separate specification for this variant, so the figures below are the base platform's

Print Method: Thermal transfer and direct thermal

Print Resolution: 300dpi

Print Speed: Up to 305 mm per second

Maximum Print Width: 104mm

Roll Width: 20mm to 120mm

Maximum Print Length: 11,430mm

Ribbon: 20mm to 114mm wide, up to 600m long, wax, resin or wax and resin, inside or outside wound

Supplied With: Brother's Wi-Fi and Bluetooth module, part PA-WB-001

Internal Rewinder: Built in

Connectivity: USB 2.0 Full Speed Type B, RS-232C serial, 10/100 wired Ethernet and Wi-Fi and Bluetooth, from the fitted PA-WB-001 module

Control Panel: a colour touch display with a status LED

Emulation: FBPL-EZD, compatible with FBPL II, EPL II, ZPL II and DPL

Power Supply: 100 to 240V 50/60Hz

FAQs

Included. Brother supplies this model code with Brother's Wi-Fi and Bluetooth module, part PA-WB-001. That comes from Brother's own accessory listing, which names this exact model as one it ships with. What Brother does not publish is a separate specification for the variant - no variant weight, dimensions or box list - so every performance figure on this page is the TJ-4522TN platform's and is labelled as such.
For thermal transfer, yes. It takes ribbon 20mm to 114mm wide and up to 600m long, in wax, resin or a wax and resin mix, wound either inside or outside. It also runs direct thermal with no ribbon, which costs less to run but gives a mark less resistant to heat, light and abrasion.
Both. This model ships with Brother's PA-WB-001 module, which Brother describes as a dual connectivity module carrying Wi-Fi and Bluetooth together. Wired Ethernet, RS-232C serial and USB are all present as well.
It winds printed labels back onto a core inside the printer instead of presenting them one at a time. That suits a print-then-apply workflow where labels go onto a machine applicator later. Brother publishes an internal rewinder on this model and on no other Titan.
Four things, and we would rather say so than invent them. Brother Australia publishes no recommended retail price for the Titan range, no packed or carton weight, no duty cycle or monthly volume rating, and no print head life figure. Ask us and we will confirm what we can from the supplier.
