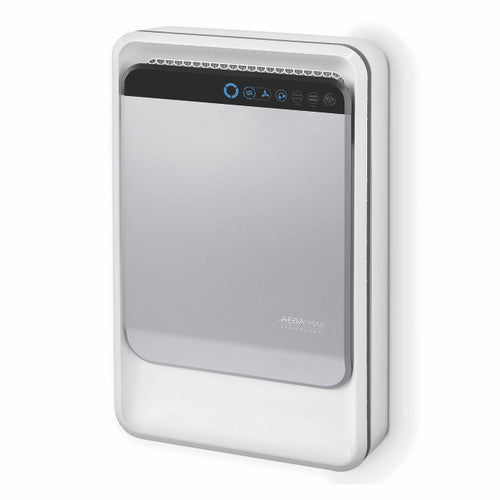

Silver and white AeraMax Pro AM 2 air purifier fitted inside the recess pan, shown at an angle against white
AeraMax Pro AM 2 set into a recessed wall pan, white front with blue lit control buttons along the top edge
Washroom with grab rails, toilet and basin, and an AM 2 purifier set into the wall above the paper towel area
Hotel style bedroom with a double bed and desk, an AM 2 air purifier recessed into the wall beside the window
White AeraMax Pro AM 2 recess wall pan seen front on, an empty rounded frame with an arrow marking the top edge
The AM 2 recess pan shown at an angle, a white moulded frame with an open centre that sets into the wall cavity
Silver and white AeraMax Pro AM 2 air purifier fitted inside the recess pan, shown at an angle against white
AeraMax Pro AM 2 set into a recessed wall pan, white front with blue lit control buttons along the top edge
Washroom with grab rails, toilet and basin, and an AM 2 purifier set into the wall above the paper towel area
Hotel style bedroom with a double bed and desk, an AM 2 air purifier recessed into the wall beside the window
White AeraMax Pro AM 2 recess wall pan seen front on, an empty rounded frame with an arrow marking the top edge
The AM 2 recess pan shown at an angle, a white moulded frame with an open centre that sets into the wall cavity
Silver and white AeraMax Pro AM 2 air purifier fitted inside the recess pan, shown at an angle against white
AeraMax Pro AM 2 set into a recessed wall pan, white front with blue lit control buttons along the top edge
Washroom with grab rails, toilet and basin, and an AM 2 purifier set into the wall above the paper towel area
Hotel style bedroom with a double bed and desk, an AM 2 air purifier recessed into the wall beside the window
Fellowes

AeraMax Wall Mount Recess Kit for AM II Professional Commercial Air Purifier

$551.21 inc GST
$551.21 inc GST
RRP $617.43
Or 4 payments of $137.80 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: FM9540802

UPC: 043859721986

MPN: 9540802

Set the AM 2 Into the Wall, Not On It

The recess kit is for corridors, washrooms and other tight spots where an AeraMax Pro AM 2 should sit almost flush with the wall instead of standing out from it.

Surface mounted, the AM 2 stands 104mm off the wall by Fellowes' figures. Fitted in this recess pan, Fellowes say it sits only 34mm from the wall, which suits narrow hallways and smaller restrooms where people pass close by. It is the third way to mount the AM 2, next to the standard wall mount and the floor stand.

This is a building job. Fellowes describe the kit as hardwired, with professional installation required, so plan it with your electrician or fit-out contractor and follow the instructions in the box.

The kit holds the white recess pan, the screws needed, a mounting template and an instruction manual. The purifier and its filters are not included.

See the AM 2 and other air purifiers, our washroom supplies and the Fellowes range.

Often ordered together

  • Recess pan for the AeraMax Pro AM 2
  • Unit sits 34mm from the wall, per Fellowes
  • Alternative to the wall mount or floor stand
  • Hardwired; professional installation required
  • Includes pan, screws, template and manual
  • White finish
  • Washrooms and restrooms where a unit should not protrude
  • Narrow hallways and corridors with passing foot traffic
  • New fit-outs where the wall cavity can be planned in advance
  • Clinic, school or office refurbishments using AeraMax Pro AM 2 units

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Fellowes

Range: AeraMax Pro

MPN: 9540802

Mega Code: FM9540802

Compatible With: AeraMax Pro AM 2 (Fellowes AU)

Projection From Wall: 34mm with the AM 2 fitted, per Fellowes

Installation: Hardwired, professional installation required

Contents: Recess pan, screws, mounting template, instruction manual

Purifier Included: No

Colour: White

Fellowes Consumer Code: 95408

Pack Size: 1 kit

Unit: Each

EAN: 043859721986

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

Fellowes Australia list it for the AeraMax Pro AM 2 only. It is not a mount for the larger AM 3 or AM 4 units.
Fellowes state that the kit is hardwired and needs professional installation. Use a licensed electrician and follow the included instructions.
Fellowes say the AM 2 sits only 34mm from the wall in this kit, compared with 104mm on the standard wall mount.
Fellowes give two slightly different sets of overall dimensions for this kit, so we do not quote one here. Take the cut-out size from the mounting template supplied in the box.
One recess wall kit for the AeraMax Pro AM 2: the recess pan, screws, a mounting template and the instruction manual. The purifier is sold separately, and the kit is hardwired with professional installation required.
