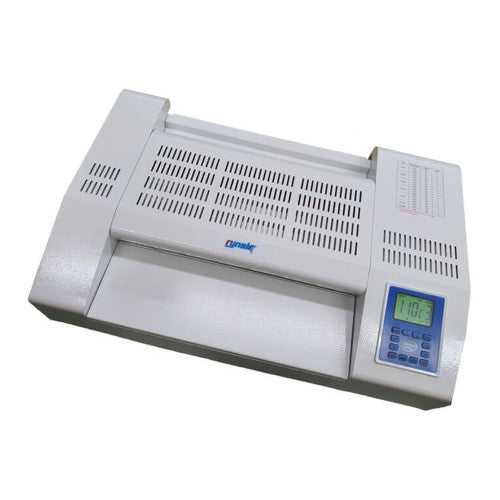

PHE Rynak Pro 10R Commercial 10 Roller A3 Laminator
PHE Rynak Pro 10R Commercial 10 Roller A3 Laminator
PHE

PHE Rynak Pro 10R Commercial 10 Roller A3 Laminator

$3,206.78
$3,206.78
RRP $3,368.20
Or 4 payments of $801.70 with
Add items to a quote for bulk pricing, approvals, or purchase orders.

SKU: PHMRPRO10R

MPN: MRPRO10R

Ten Rollers For High Volume A3 Pouch Laminating

The Rynak Pro 10R is a commercial A3 pouch laminator with a ten roller path, digital temperature and speed control and a metal case built for print room work.

PHE publish the roller path as four heated rollers and six pressure rollers, which is what holds a heavy pouch flat and free of bubbles at speed. Variable speed runs to 4000mm per minute, the temperature range covers 0 to 160 degrees Celsius, and the machine accepts pouches from 75 to 350 micron and documents up to 3mm thick across the full A3 width of 330mm.

Because speed and temperature are set independently on the LCD display, a thin office pouch and a heavy photographic pouch can each be run properly rather than compromised on one setting. A reverse function backs a misfeed out, and the removable top cover opens the roller path for cleaning between jobs.

It sits with the rest of the A3 laminators and the wider laminators line, takes the A3 pouches in lamination supplies, and works alongside the finishing gear in binding and laminating.

Often ordered together

  • Ten roller path, published by PHE as four heated and six pressure rollers, for flat, bubble free pouches at speed.
  • Variable speed to 4000mm per minute with digital speed and temperature control on an LCD display.
  • Temperature range of 0 to 160 degrees Celsius covers thin office pouches and heavy photographic pouches.
  • Takes pouches from 75 to 350 micron and documents up to 3mm thick, to a maximum width of 330mm.
  • Reverse function backs a misfeed out without unloading the job.
  • Metal case with metal gears and a removable top cover for roller cleaning.
  • Cold lamination setting and an automatic cool down to protect the rollers at the end of a run.
  • Print rooms laminating A3 posters, proofs and signage in volume.
  • Schools and TAFEs protecting classroom charts, notices and display material.
  • Photographic and design work where a heavy pouch needs an even, mark free finish.
  • Council and corporate reprographics teams finishing menus, plans and safety notices.
  • Retail and hospitality sites laminating price lists and back of house instructions.

Shipping

Shipping is kept simple with flat rates for selected areas and free shipping where applicable. Large, bulky, rural or out-of-area orders may require additional freight, and our team will contact you if this applies. For a more specific estimate, simply add this product to a quote or visit our shipping page.

Delivery Times

Melbourne, Sydney, Brisbane, Adelaide — 1 to 3 business days
Perth — 1 to 5 business days
Regional & Outer Areas — 3 to 7 business days

Returns

If you have questions about returns, please contact us or visit our returns page for full details.

Specifications

Brand: Rynak, distributed in Australia by PHE

Model: Pro 10R

Machine Type: Pouch laminator, published by PHE as a high speed commercial pouch laminator

Maximum Sheet Size: A3

Maximum Document Width: 330mm

Roller System: 10 rollers, 4 heated and 6 pressure, published by PHE

Pouch Thickness: 75 to 350 micron in the PHE brochure; PHE's web page states 80 to 350 micron

Maximum Document Thickness: 3mm

Speed: Variable to 4000mm per minute

Temperature Range: 0 to 160 degrees Celsius

Warm Up Time: 8 minutes, published by PHE

Display: LCD showing temperature and speed, published by PHE

Dimensions: 536 x 350 x 157mm, published by PHE

Machine Weight: 25kg, published by PHE as the machine weight; no carton weight is published

Identifiers: SKU PHMRPRO10R, MPN MRPRO10R

Primary Distribution Centre

Factory 5, 12 Greenway Drive
Tweed Heads South NSW 2486

ABN 18 634 002 609

Get directionsContact us

FAQs

Pouches. PHE publish the Pro 10R as a high speed commercial pouch laminator taking pouches from 75 to 350 micron up to A3. It is not a roll laminator and it does not take laminating film on a core.
A3, to a maximum document width of 330mm, and up to 3mm thick. That covers an A3 sheet in a heavy pouch, and mounted work within the same thickness.
PHE publish a warm up time of 8 minutes. Once up to temperature, speed is variable to 4000mm per minute and both speed and temperature are set independently on the LCD display.
The Pro 10R has a reverse function to back a misfeed out. PHE also publish a removable top cover so the rollers can be cleaned, and an automatic cool down at the end of a run to protect them.
PHE publish 25kg as the machine weight and publish no carton weight. Rather than put the machine figure in the freight field, where it would under-recover the cost of shipping a crated machine, that field is left empty. Ask us for a freight quote to your postcode.
PHE publish a 12 month warranty on the Pro 10R and list the country of origin as South Korea. If you need the warranty terms in writing for a tender, ask us and we will request them from PHE.
