Helix Ellipse Template
- Regular price
- $9.57
- Sale price
- $9.57
- Regular price
-
RRP $10.78
At checkout.
Free and simple to apply.
Approx every 2 weeks.
See your payment schedule for full breakdown of your instalments and due dates in the Afterpay app or web portal after you check out. Your instalments and due dates will take into account your preferred payment date, and whether no payment upfront or higher upfront payment applies.
Late fees, eligibility criteria and T&Cs apply. Australian credit licence 527911.
SKU: PQ0352590
UPC: 079252088210
MPN: 352590
Isometric Ellipses for 3D Sketches and Technical Drawing
The Helix 0352590 Ellipse Template is printed 35° 16' Isometric Metric Ellipse Template with the code H82, and ACCO lists 26 ellipses on a template with a bevelled edge and ringbinder holes.

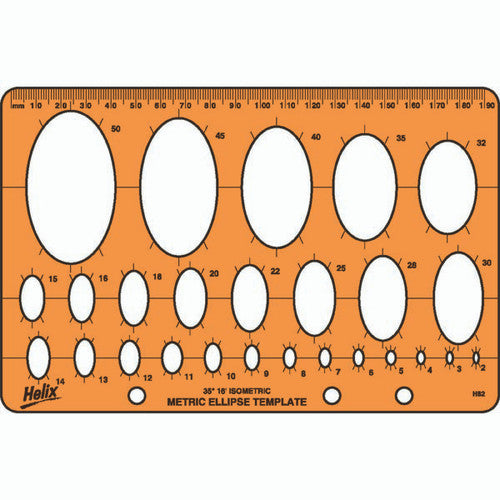

The printed isometric angle means these are the shapes a circle takes on the face of a cube drawn in isometric projection, which is why this template suits 3D sketches of cylinders, holes and wheels. Our photo shows the template in orange, with millimetre markings across its upper edge, and the ellipses are numbered from 2 to 50.
Using a template instead of plotting each ellipse by hand keeps every hole and wheel the same shape across a drawing, and saves time in class or on a draft. Line up the tick marks around the chosen opening with your construction lines, then trace inside it.
Find more in our stencils and geometry and technical drawing ranges, add the Helix circle template for round holes and wheels, or look through Helix and our drawing supplies for fineliners and pencils.
